  • Dayton Audio RSS265HF-4 10" Reference Series HF Subwoofer 4 Ohm

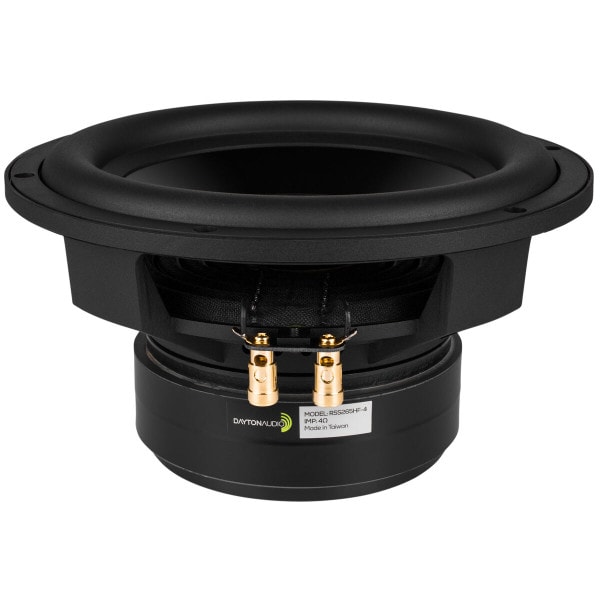

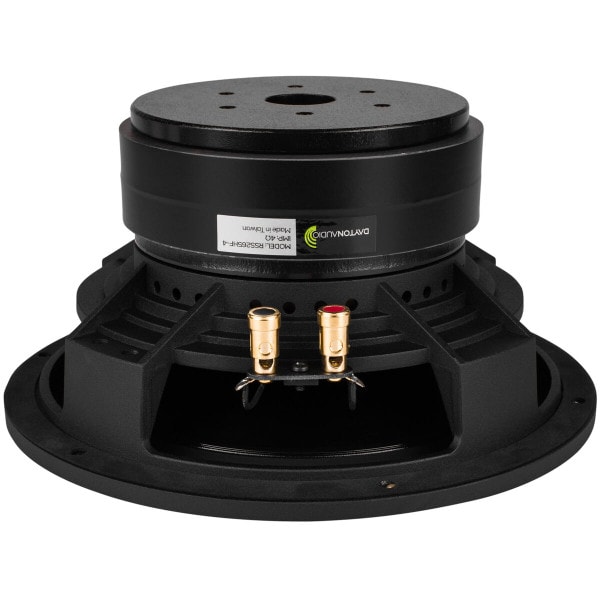

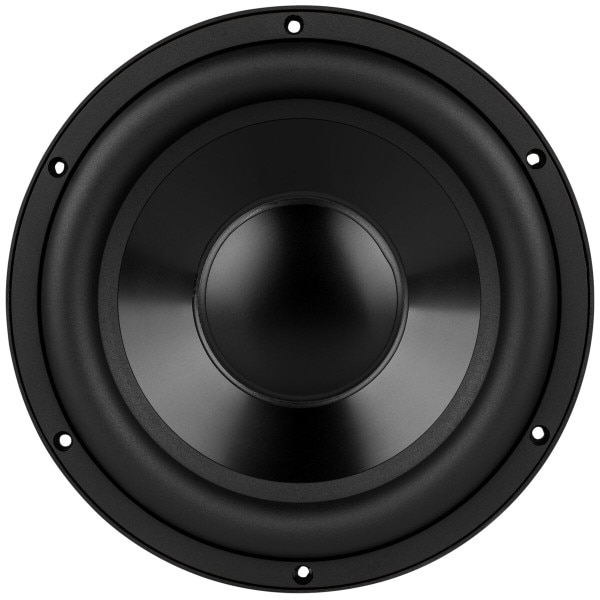

Dayton Audio RSS265HF-4 10" Reference Series HF Subwoofer 4 Ohm

Dayton Audio
Part #295-460

Dayton Audio RSS265HF-4 10" Reference Series HF Subwoofer 4 Ohm

Dayton Audio
Part #295-460
Model: RSS265HF-4
The Dayton Audio RSS265HF-4 10" subwoofer features the high-definition/low-distortion attributes of the acclaimed Reference Series, and provides great results in compact single-driver subwoofer speaker systems...or when used in multiples!
Key Features
  • Extensively vented motor eliminates compression and allows quiet excursion
  • Lightweight black anodized aluminum cone for rigidity and lower moving mass
  • Suitable for sealed or vented enclosures
  • Triple shorting ring motor for ultra-low distortion
  • 2-layer coil for reduced back EMF
  • Highest quality materials throughout for long-lasting performance
Similar items that may interest you:
See all items in Subwoofer Drivers
Your Price: $189.98
+ FREE SHIPPING
MSRP: $232.99
Save $43.01 (18%)
Bulk Pricing
Quantity:Qty: 1-3 $189.98/ea
Quantity:Qty: 4+$170.98/ea
Order in the next 3 hr 39 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RSS265HF-4 10" Reference Series HF Subwoofer 4 Ohm

As with the rest of the Reference Series, the main focus of the Dayton Audio RSS265HF 10" subwoofer is ultra-low distortion. Second, third, and intermodulation distortion are kept extremely low by utilizing three short-circuit paths within the motor structure. A durable aramid fiber spider and extensive venting throughout provide quiet and uniform excursion. The black anodized cone, thick rubber surround, and custom basket give this Dayton Audio driver a unique, high-end look. Choose the High Fidelity (HF) version for home systems when you are looking for clean, low bass and are not restricted by speaker cabinet size.

The Dayton Audio RSS265HF-4 is used in the following kit:

Dayton Audio 10" Reference Series HF Subwoofer and Starter Enclosure Package

Including the Dayton Audio RSS265HF-4 10" Reference subwoofer and a matching subwoofer starter kit this package makes it easy to build your own custom DIY subwoofer with minimal tools. You just need to make the top, bottom, sides, and back using all straight cuts with no tricky dadoes or rabbets required to complete your own ultra-low distortion compact subwoofer.

VIEW KIT

Product Details

BrandDayton Audio
ModelRSS265HF-4
Part Number295-460
UPC844632006913
Unit of MeasureEach
Weight18

Product Specifications

Nominal Diameter10"
Power Handling (RMS)350 Watts
Power Handling (MAX)700 Watts
Impedance4Ω
Frequency Response22 to 1,000Hz
Sensitivity87.8dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)25.6Hz
DC Resistance (Re)3.5Ω
Voice Coil Inductance (Le)0.96mH
Mechanical Q (Qms)3.06
Electromagnetic Q (Qes)0.53
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)1.9ft³
Mechanical Compliance of Suspension (Cms)0.32mm/N
BL Product (BL)11.43T·m
Diaphragm Mass Inc. Airload (Mms)120g
Maximum Linear Excursion (Xmax)12.3mm
Surface Area of Cone (Sd)356.3cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.47"
Baffle Cutout Diameter9.25"
Depth5.37"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.9ft³
Sealed F345Hz
Vented Volume1.5ft³
Vented F327Hz
