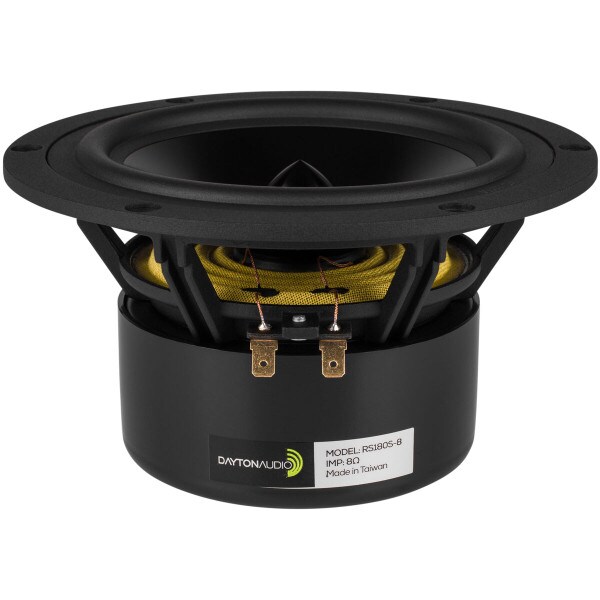

Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm

Dayton Audio
Part #295-364

Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm

Dayton Audio
Part #295-364
Model: RS180S-8
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.
Key Features
  • Long-excursion motor and suspension for strong bass performance
  • Subtle yet high-tech look makes a bold cosmetic statement
  • Ultra-low stray magnetic field allows extremely close proximity to CRT's
  • Designed and engineered in the USA
Similar items that may interest you:
See all items in Woofers
Your Price: $74.98
+ FREE SHIPPING
MSRP: $94.99
Save $20.01 (21%)
Bulk Pricing
Quantity:Qty: 1-3 $74.98/ea
Quantity:Qty: 4+$67.48/ea
Ships next business day. Details

In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RS180S-8 7" Reference Shielded Woofer 8 Ohm

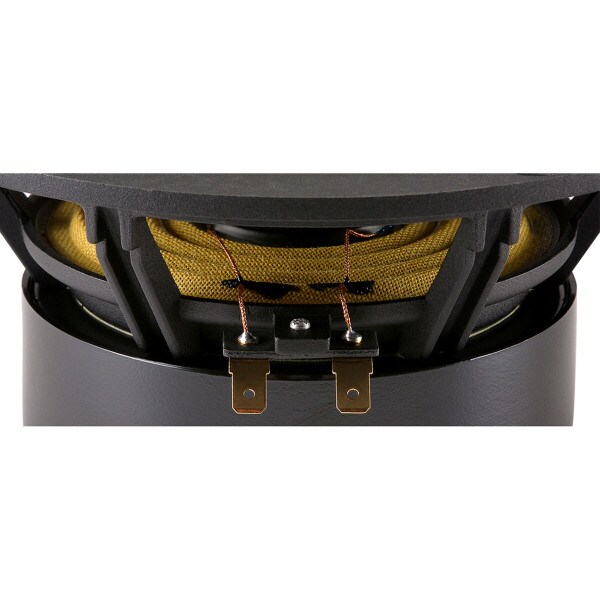

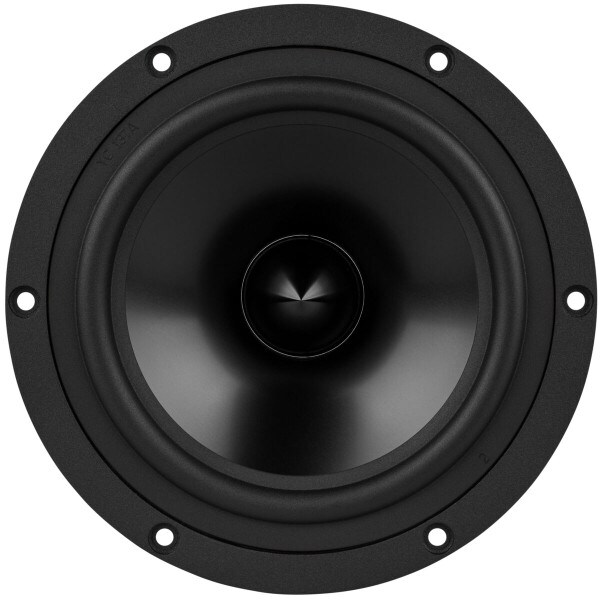

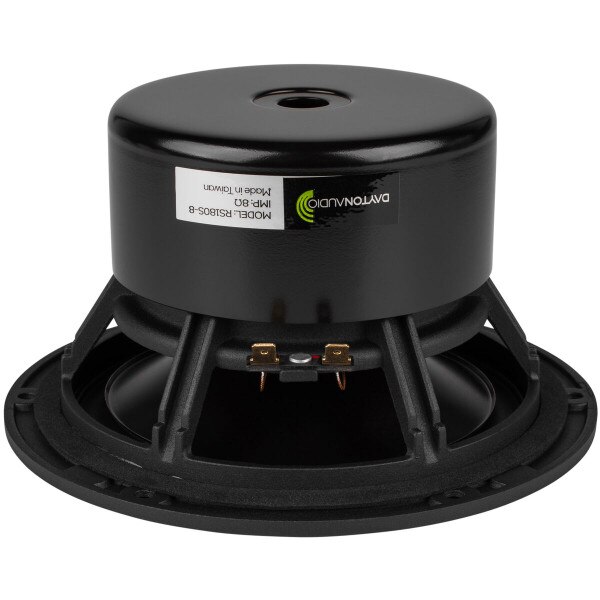

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofers feature a shielded motor system, black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug.

Product Details

BrandDayton Audio
ModelRS180S-8
Part Number295-364
UPC844632000331
Unit of MeasureEach
Weight5.5

Product Specifications

Nominal Diameter7"
Bolt Circle Diameter6.63
Power Handling (RMS)60 Watts
Power Handling (MAX)120 Watts
Impedance8Ω
Frequency Response41 to 3,600Hz
Sensitivity86.9dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)37.7Hz
DC Resistance (Re)6.4Ω
Voice Coil Inductance (Le)0.79mH
Mechanical Q (Qms)1.45
Electromagnetic Q (Qes)0.49
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)0.812ft³
Mechanical Compliance of Suspension (Cms)1.05mm/N
BL Product (BL)7.28T·m
Diaphragm Mass Inc. Airload (Mms)17g
Maximum Linear Excursion (Xmax)6mm
Surface Area of Cone (Sd)124.7cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter7.11"
Baffle Cutout Diameter5.75"
Depth3.86"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.17ft³
Sealed F396Hz
Vented Volume0.48ft³
Vented F348Hz
