Dayton Audio RS125T-8 5" Reference Woofer Truncated Frame

Dayton Audio
Part #295-340

Dayton Audio RS125T-8 5" Reference Woofer Truncated Frame

Dayton Audio
Part #295-340
Model: RS125T-8
Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price.
Key Features

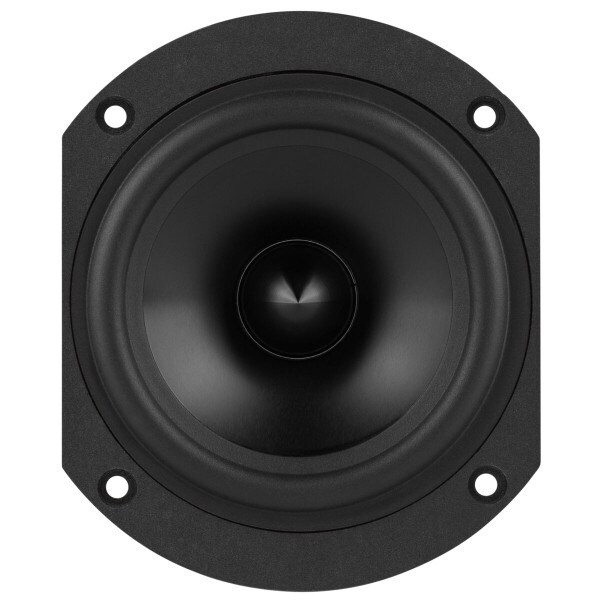

  • Truncated cast frame, great for line arrays and MTM speaker designs
  • Long-excursion motor and suspension for strong bass performance
  • Advanced low-distortion motor design
  • Distortion-reducing copper ring in magnetic gap
  • Lightweight black anodized aluminum cone
  • Designed and engineered in the U.S.A.
Your Price: $33.74
MSRP: $49.99
Save $16.25 (33%)
Bulk Pricing
Ships next business day. Details

Only 21 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RS125T-8 5" Reference Woofer Truncated Frame

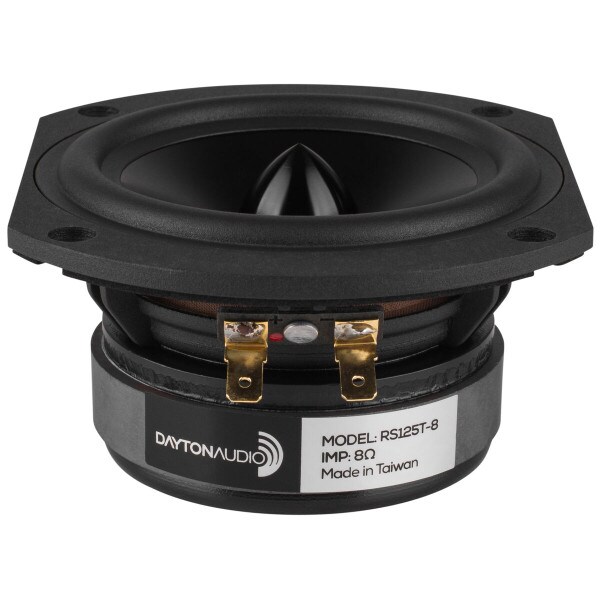

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing an advanced motor system and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty cast frame, low-loss rubber surround, solid aluminum phase plug, distortion-reducing magnetic gap copper ring, rubber magnet boot, and gold terminals.

Product Details

BrandDayton Audio
ModelRS125T-8
Part Number295-340
UPC844632079795
Unit of MeasureEach
Weight1.95

Product Specifications

Nominal Diameter5"
Bolt Circle Diameter4.43
Power Handling (RMS)30 Watts
Power Handling (MAX)60 Watts
Impedance8Ω
Frequency Response75 to 9,200Hz
Sensitivity86.9dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)76Hz
DC Resistance (Re)6.4Ω
Voice Coil Inductance (Le)0.58mH
Mechanical Q (Qms)2.62
Electromagnetic Q (Qes)0.61
Total Q (Qts)0.5
Compliance Equivalent Volume (Vas)0.13ft³
Mechanical Compliance of Suspension (Cms)0.87mm/N
BL Product (BL)5.04T·m
Diaphragm Mass Inc. Airload (Mms)5.1g
Maximum Linear Excursion (Xmax)2.8mm
Surface Area of Cone (Sd)54.1cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.94"; across flats 4.06"
Baffle Cutout Diameter3.7"
Depth2.17"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.07ft³
Sealed F3139Hz
Vented Volume0.27ft³
Vented F355Hz
