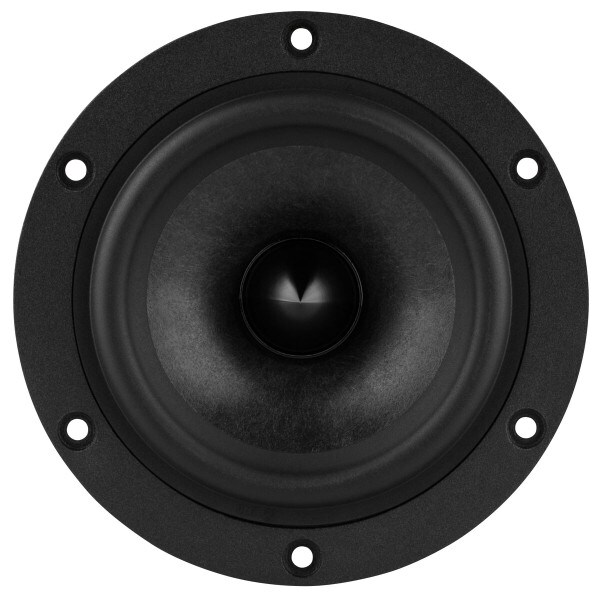

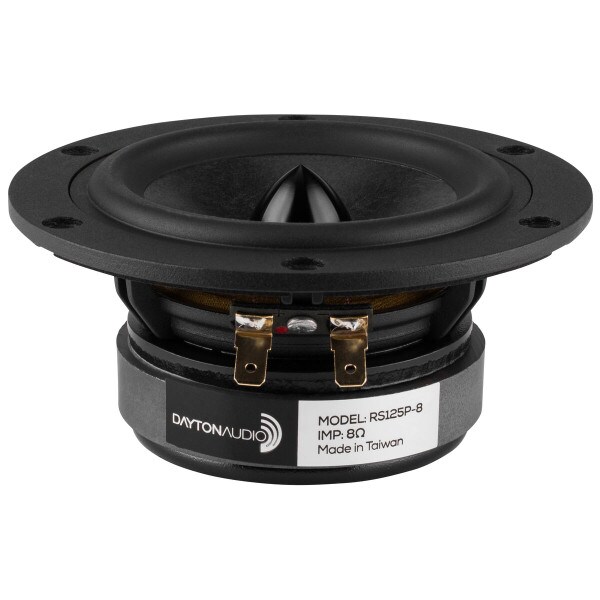

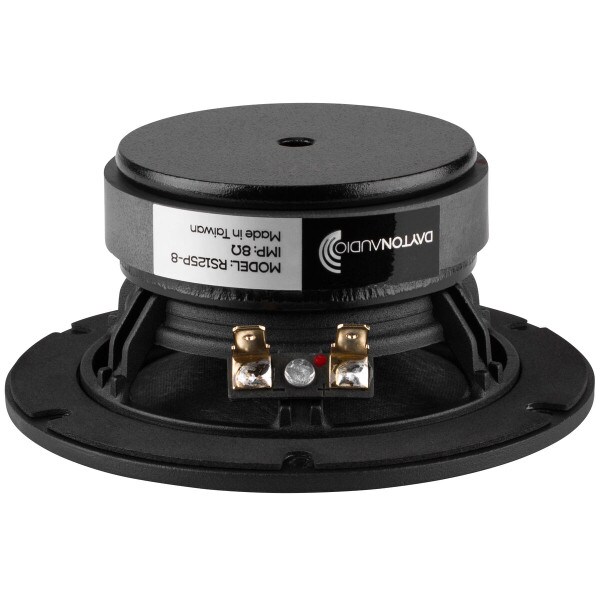

Dayton Audio RS125P-8 5" Reference Paper Woofer 8 Ohm

Dayton Audio
Part #295-361

Dayton Audio RS125P-8 5" Reference Paper Woofer 8 Ohm

Dayton Audio
Part #295-361
Model: RS125P-8
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with super smooth frequency response due to the use of a proprietary cone blend.
Key Features
  • Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
  • Similar cosmetics and design features as original Reference Series with low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
  • Perfect for use as a woofer, midwoofer, or dedicated midrange driver
  • 30 watt RMS and 87.1 dB @ 2.83V/1m sensitivity for impressive output capability
Your Price: $44.98
MSRP: $54.99
Save $10.01 (18%)
Bulk Pricing
Quantity:Qty: 1-3 $44.98/ea
Quantity:Qty: 4+$37.78/ea
Order in the next 0 hr 43 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio RS125P-8 5" Reference Paper Woofer 8 Ohm

The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.

Product Details

BrandDayton Audio
ModelRS125P-8
Part Number295-361
UPC848791001239
Unit of MeasureEach
Weight2.1

Product Specifications

Nominal Diameter5"
Power Handling (RMS)30 Watts
Power Handling (MAX)45 Watts
Impedance8Ω
Frequency Response70 to 10,000Hz
Sensitivity87.1dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)70Hz
DC Resistance (Re)6.2Ω
Voice Coil Inductance (Le)0.62mH
Mechanical Q (Qms)2.56
Electromagnetic Q (Qes)0.53
Total Q (Qts)0.44
Compliance Equivalent Volume (Vas)0.14ft³
Mechanical Compliance of Suspension (Cms)1.02mm/N
BL Product (BL)5.08T·m
Diaphragm Mass Inc. Airload (Mms)5.1g
Maximum Linear Excursion (Xmax)4mm
Surface Area of Cone (Sd)52.8cm²

Materials of Construction

Cone MaterialPaper / Kevlar
Surround MaterialRubber
Voice Coil Wire MaterialCopper
Voice Coil FormerAluminum
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter4.95"
Baffle Cutout Diameter3.70"
Depth2.16"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.07ft³
Sealed F3145Hz
Vented Volume0.22ft³
Vented F358Hz
