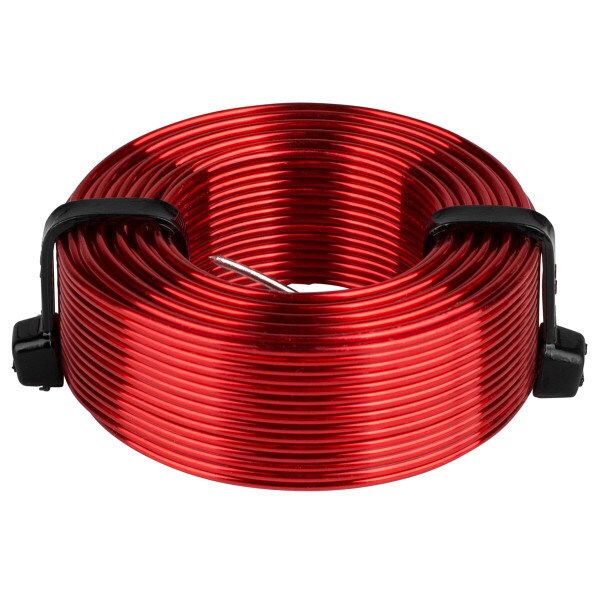

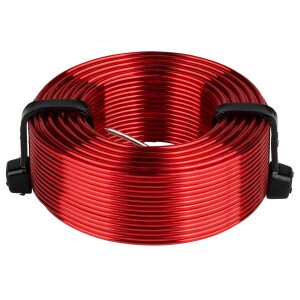

Dayton Audio 0.80mH 18 AWG Perfect Layer Inductor Crossover Coil

Dayton Audio
Part #257-822

Dayton Audio 0.80mH 18 AWG Perfect Layer Inductor Crossover Coil

Dayton Audio
Part #257-822
Model: LW18-80
Dayton Audio 18 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction. Features fully annealed refined copper wire, baked enamel insulator, and perfect layer construction. The thin enameled wire permits the tightest windings to minimize DCR and air core construction to ensure no hysteresis and saturation distortions.
Key Features
  • Highly refined copper wire
  • Baked enamel insulator
  • Perfect layer windings
  • Air core construction
  • 300 watts RMS power handling
  • ±3% tolerance
Your Price: $7.89
MSRP: $10.99
Save $3.10 (28%)
Bulk Pricing
Quantity:Qty: 1-9 $7.89/ea
Quantity:Qty: 10+$7.45/ea
Ships next business day. Details

80In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio 0.80mH 18 AWG Perfect Layer Inductor Crossover Coil

Dayton Audio 18 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction. Features fully annealed refined copper wire, baked enamel insulator, and perfect layer construction. The thin enameled wire permits the tightest windings to minimize DCR and air core construction to ensure no hysteresis and saturation distortions.

Specifications: • Inductance: 0.80 mH • Wire gauge: 18 AWG • Core type: Air • DC resistance: 0.44 ohms • Tolerance: ±3% • Power handling: 300 watts RMS • Dimensions: 1.81" Ø x 0.63" H (46 x 16 mm).

Copper quality/purity: The copper used in all Dayton Audio inductors, both wire and foil based, is a minimum of 99.9% pure, providing 100% conductivity. The oxygen component of the copper is between 0.02% and 0.04%.

Technical note: To prevent crosstalk and noise position inductors in crossovers at right angles to each other.

Product Details

BrandDayton Audio
ModelLW18-80
Part Number257-822
UPC848791003394
Unit of MeasureEach
Weight0.3

Product Specifications

DCR0.44Ω
Inductance0.8mH
Inductor TypeAir Core
Wire Gauge18
