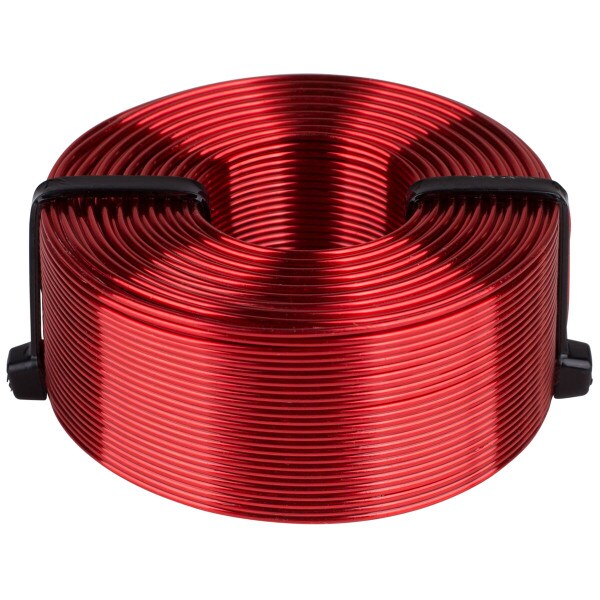

Dayton Audio 6.0mH 18 AWG Perfect Layer Inductor Crossover Coil

13 Questions, 32 Answers or
Dayton Audio
Part #257-850

Dayton Audio 6.0mH 18 AWG Perfect Layer Inductor Crossover Coil

Dayton Audio
Part #257-850
Model: LW186
13 Questions, 32 Answers or
Dayton Audio 18 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction. Featuring fully annealed refined copper wire, baked enamel insulator and perfect layer construction. The thin enameled wire permits the tightest windings to minimizes DCR and air core construction to ensure no hysteresis and saturation distortions.
Key Features
  • Highly refined copper wire
  • Baked enamel insulator
  • Perfect layer windings
  • Air core construction
  • 300 watts RMS power handling
  • ±3% tolerance
Your Price: $21.98
MSRP: $28.99
Save $7.01 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $21.98/ea
Quantity:Qty: 10+$20.51/ea
Ships next business day. Details

40In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Dayton Audio 6.0mH 18 AWG Perfect Layer Inductor Crossover Coil

Dayton Audio 18 gauge perfect layer wound air core inductors are an excellent choice for high quality crossover construction. Featuring fully annealed refined copper wire, baked enamel insulator and perfect layer construction. The thin enameled wire permits the tightest windings to minimizes DCR and air core construction to ensure no hysteresis and saturation distortions.

Specifications: • Inductance: 6.0 mH • Wire gauge: 18 AWG • Core type: Air • DC resistance: 1.48 ohms • Tolerance: ±3% • Power handling: 300 watts RMS • Dimensions: 2.38" Ø x 1.04" H (61 x 26.5 mm).

Copper quality/purity: The copper used in all Dayton Audio inductors, both wire and foil based, is a minimum of 99.9% pure, providing 100% conductivity. The oxygen component of the copper is between 0.02% and 0.04%.

Technical note: To prevent crosstalk and noise position inductors in crossovers at right angles to each other.

Product Details

BrandDayton Audio
ModelLW186
Part Number257-850
UPC848791003493
Unit of MeasureEach
Weight1.05

Product Specifications

DCR1.48Ω
Inductance6mH
Inductor TypeAir Core
Wire Gauge18
