B&C DE12TC 1" Titanium Horn Compression Driver 8 Ohm 2-Bolt

B&C Speakers
Part #294-582

B&C DE12TC 1" Titanium Horn Compression Driver 8 Ohm 2-Bolt

B&C Speakers
Part #294-582
Model: DE12TC

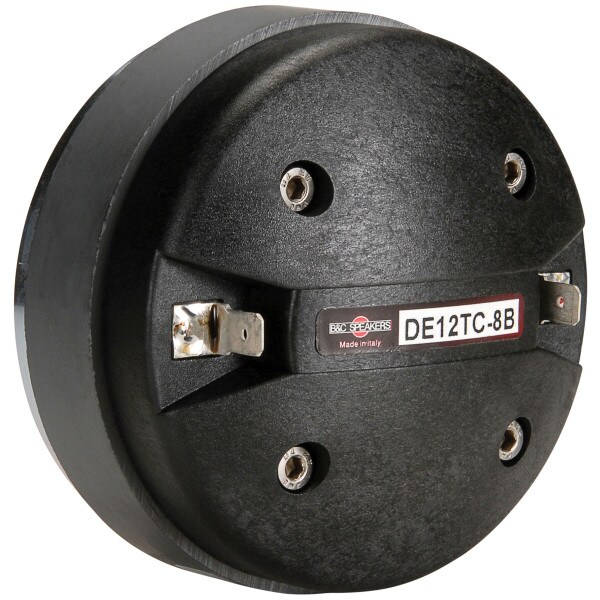

B&C's DE12TC 1" high frequency compression driver employs a low mass titanium diaphragm, aluminum voice coil, and an optimized ceramic magnet assembly.
Key Features
  • 1" horn throat diameter, 2-bolt mounting
  • Low mass titanium diaphragm
  • 1.4" aluminum voice coil
  • High sensitivity and low distortion
  • Crossover as low as 2,200 Hz
  • 60 watts continuous program power capacity
  • 1,500 to 18,000 Hz response
Your Price: $78.92
+ FREE SHIPPING
MSRP: $131.54
Save $52.62 (40%)
Bulk Pricing

Out of Stock

Special Order Item Ships in 3-7 Days
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

B&C DE12TC 1" Titanium Horn Compression Driver 8 Ohm 2-Bolt

B&C's DE12TC 1" high frequency compression driver employs a low mass titanium diaphragm, aluminum voice coil, and an optimized ceramic magnet assembly. It features high sensitivity and low distortion up to 18 kHz.

Specifications: • Power handling: 30 watts RMS/60 watts program above recommended crossover of 2.2 kHz/12dB slope • VCdia: 1.4" • Impedance: 8 ohms • Frequency response: 1,500-18,000 Hz • SPL: 105 dB 1W/1m • Dimensions: 3.5" diameter x 2" depth • Net weight: 2.2 lb. • Replacement diaphragm no longer available from manufacturer.

B&C Compression Drivers

B&C Speakers' line of compression drivers is the result of a continuous research effort, dedicated to refine every component in the structure, and their overall balance. Diaphragms are made of titanium, mylar, or polyimide, in order to get the required results in efficiency and bandwidth. Their shape and structure is mathematically evaluated well before building the first prototype. Afterwards, their performance is tested with methods that range from modal analysis to laser vibrotomy.

All voice coils are of the edgewound ribbon type, and made of aluminum to reduce mass and achieve the best electro-acoustic performance. The magnet assembly is designed and optimized with up-to-date software for Finite Element Analysis (FEA) and complemented, where needed, by a copper cap to improve frequency extension and linearity. Equal care is taken in the design of phase plugs, whose role in enhancing performance and reducing distortion artifacts is critical for compression drivers. The precision and transparency of B&C compression drivers is constantly improved by the progress in acoustical modeling and simulation.

Product Details

BrandB&C Speakers
ModelDE12TC
Part Number294-582
UPC844632068010
Unit of MeasureEach
Weight2.2

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter1"
Mounting Type2-Bolt
Power Handling (RMS)30 Watts
Impedance8Ω
