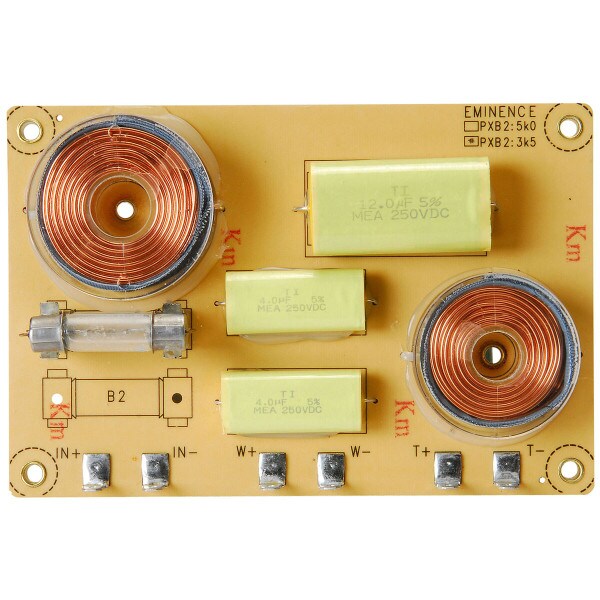

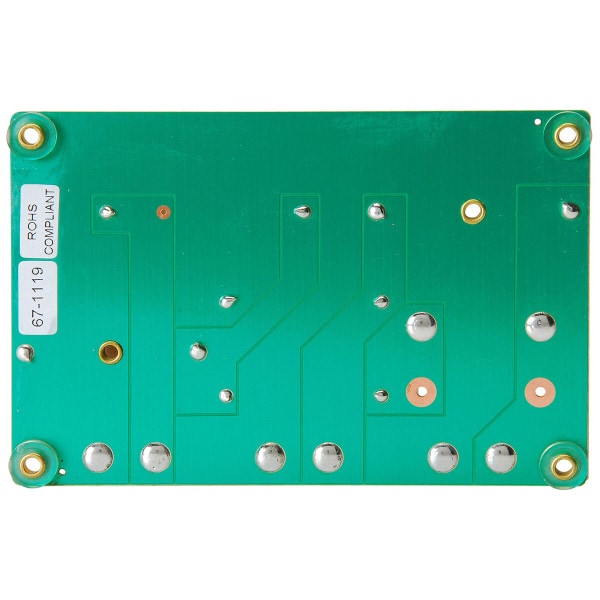

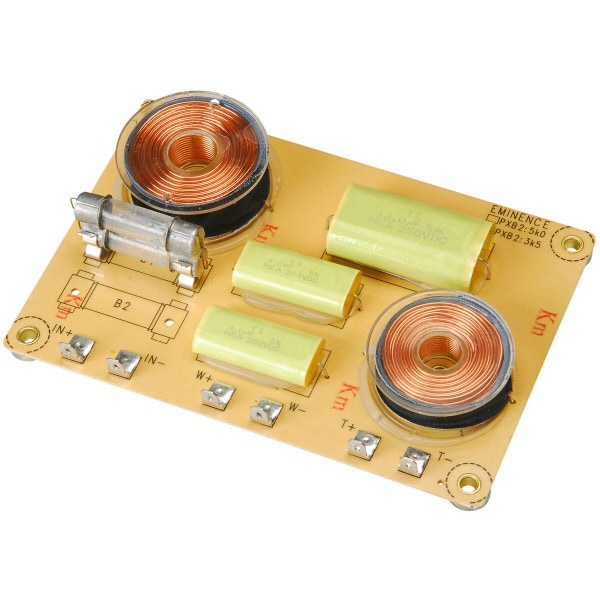

Eminence PXB2:3K5 2-Way Speaker Crossover Board 3,500 Hz

Eminence Speaker
Part #290-636

Eminence PXB2:3K5 2-Way Speaker Crossover Board 3,500 Hz

Eminence Speaker
Part #290-636
Model: PXB2:3K5
Eminence PXB crossovers feature advanced circuit design to both preserve the crossover and your HF drivers.
Key Features
  • Crossover type: Two-way, board only
  • Crossover frequency: 3,500 Hz, 18 dB/octave HP, 12 dB/octave LP
  • Power handling: 400 watts RMS
Your Price: $59.99
+ FREE SHIPPING
MSRP: $79.99
Save $20.00 (25%)
Bulk Pricing
Ships next business day. Details

11In Stock
Free Shipping available on orders over $49.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Eminence PXB2:3K5 2-Way Speaker Crossover Board 3,500 Hz

Eminence PXB board-only crossovers are a lower cost alternative to the "cabinet ready" models and are targeted specifically for custom cabinet projects as they do not include the terminal cup, input connectors or L-pad found on the "cabinet ready" models. They feature advanced circuit design to both preserve the crossover and your drivers. A benefit of the design is to form a voltage divider across the high frequency driver.

The high-pass protection uses custom-built aerospace lamps. The tungsten filaments effectively track the program material, dynamically maintaining a safe maximum current level to the high frequency driver without introducing distortion. This circuitry provides smooth 3:1 analog compression during input overload conditions over 250 watts RMS. At full drive level approaching clipping, the electrical attenuation to the protected high frequency driver is -4.5 dB. In every way, Eminence pxb crossovers are a technically superior product. For use with 8 ohm drivers. Dimensions: 6" L X 4" W X 1" T.

Featured in Eminence's "Using coaxial products for DIY monitors and home hi-fi applications" article.

Product Details

BrandEminence Speaker
ModelPXB2:3K5
Part Number290-636
UPC876358001453
Unit of MeasureEach
Weight0.64

Product Specifications

ConfigurationAssembled Board Only
Crossover Type2-Way
