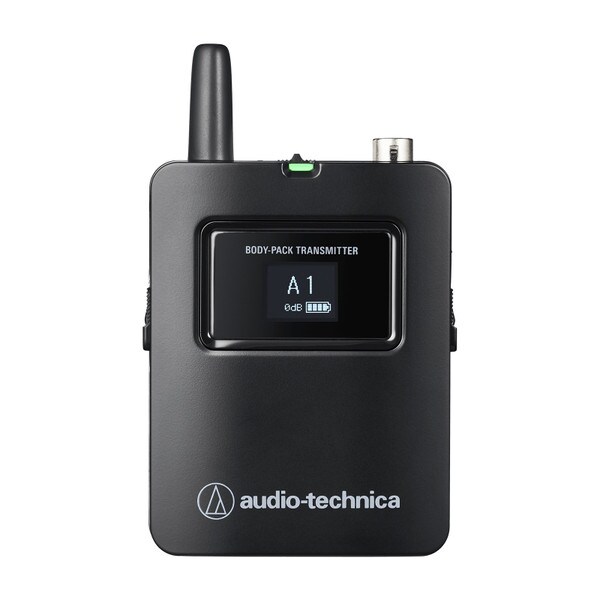

NEW Audio Technica ATW-T1401 System 20 PRO Body-Pack Transmitter

Audio-Technica
Part #240-5755

NEW Audio Technica ATW-T1401 System 20 PRO Body-Pack Transmitter

Audio-Technica
Part #240-5755
Model: ATW-T1401

Take the freedom of a wireless system anywhere with Audio-Technica's System 20 PRO series! Endlessly customizable, the System 20 PRO line of microphones, bodypacks, and more can easily be personalized to fit your needs. With the ATW-T1401, you have a body-pack transmitter to begin your system or expand your pre-existing setup. Add a compatible lavalier, headset mic, or guitar input cable to free yourself to wander!

Key Features
  • Fully integrated with the System 20 PRO line

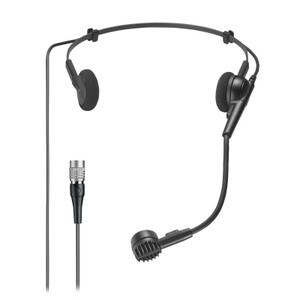

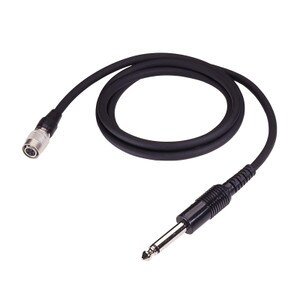

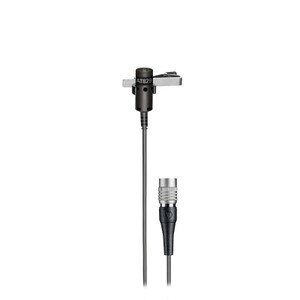

  • Use for a lavalier, headset mic, or instrument cable to free yourself to roam on stage
  • Two built-in antennas to help keep you connected
  • OLED display lets you adjust your settings even in a dark venue

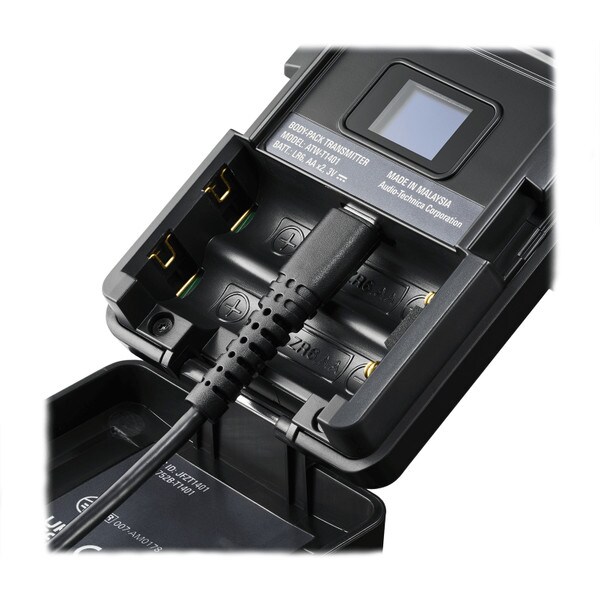

  • Compatible with alkaline, lithium, or NiMH batteries
  • Lightweight yet hardy to be comfortable and survive on stage
  • Microphone and cables not included. Please select a microphone or cable with a cW-style locking 4-pin connector to complete the system
NEW $249.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 14 hr 57 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

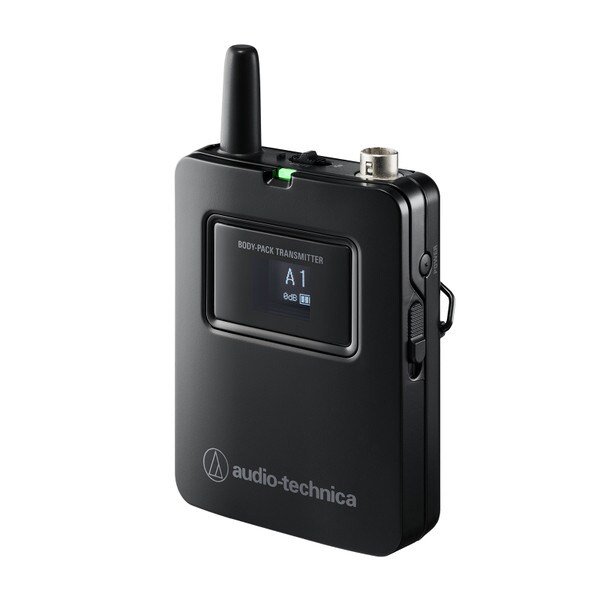

Audio Technica ATW-T1401 System 20 PRO Body-Pack Transmitter

Audio-Technica's System 20 Pro Series

The wireless system you can use anywhere!

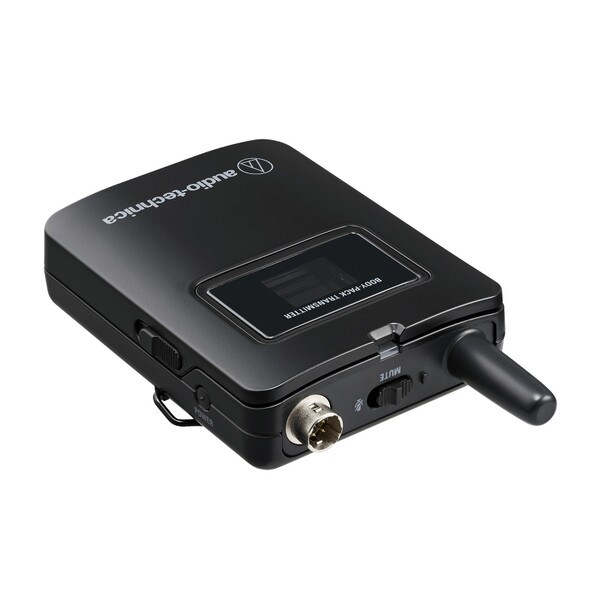

The Audio Technica ATW-T1401 body-pack transmitters from the System 20 PRO line offers a lot of optionality to its users. Free up your hands for your presentation with a lavalier or headset mic. Or make your guitar wireless and wander the venue during your big solo. Never again worry about tripping on your own cables! Each ATW-T1401 transmitter has two built-in antennas, a slide-to-mute switch, OLED display, and is compatible with NiMH batteries for all day use.

Microphone and cables not included. Please select a microphone and/or cables with a cW-style locking 4-pin connector to complete the system. Please note that this microphone transmitter will require an Audio-Technica ATW-R1440 receiver. The ATW-T1401 body-pack transmitter is for adding to a pre-existing System 20 PRO wireless system or starting a new system with a separate ATW-R1440 receiver.

System 20 PRO Features

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • Plug-and-play operation in the 2.4 GHz range – completely free from TV interference
  • User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via Ethernet cable for added versatility
  • Up to five chassis can be linked and used simultaneously
  • Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
  • Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
  • Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
  • Compatible with Audio-Technica’s Wireless Manager Software software for centralized management of system settings and operations
  • Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
  • AES128 encryption for security
  • Compatible with Syslog protocol
  • Ability to configure, monitor, and save device settings as projects in Wireless Manager
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts

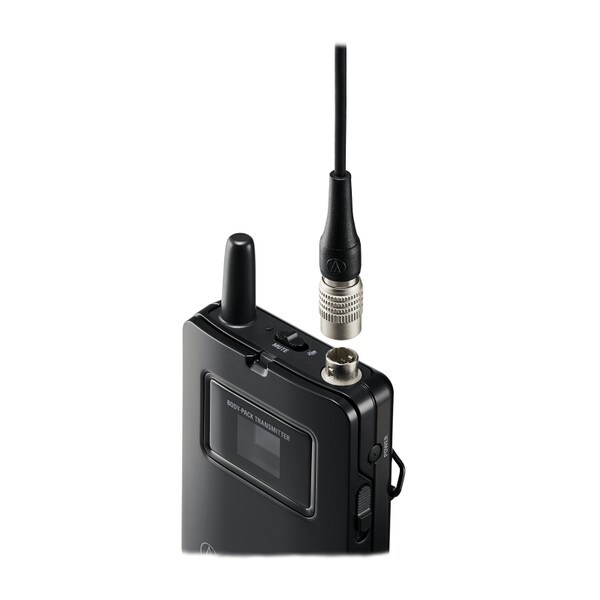

  • Water- and sweat-resistant cW-style connector on ATW-T1401 body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector

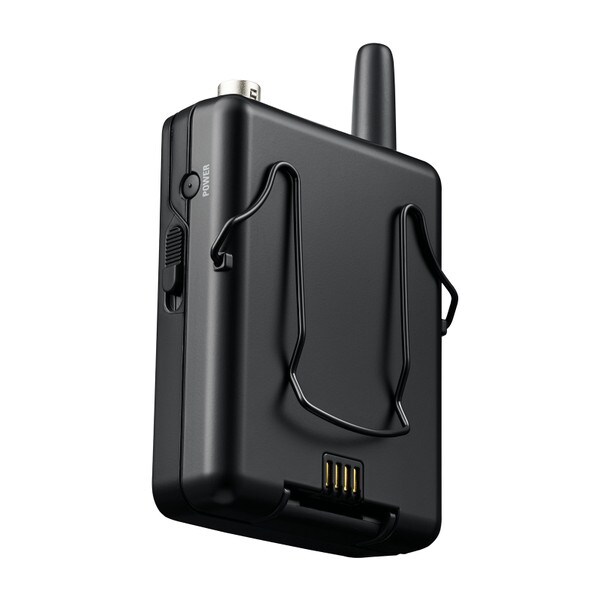

  • Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
  • Supports mixed output for situations with limited input channels

Specifications

General Specifications

  • Operating Frequencies: 2,402 to 2,480 MHz
  • Dynamic Range: 120 dB (A-weighted), typical
  • Total Harmonic Distortion: < 0.05%, typical
  • Maximum Simultaneous Use (recommended):
    -Standard: 10 channels
    -HD mode: 20 channels
    It depends on the region and environment.
  • System Frequency Response: 20 to 20K Hz
    Varies depending on the microphone to be installed.
  • Delay:
    -Standard: 2.8ms
    -HD mode: 6.7ms
  • Audio Sampling Rate:
    -Standard: 24-bit/48 kHz
    -HD mode: 24-bit/48 kHz
  • Encryption Method: AES128

ATW-T1401 Body-Pack Transmitter Specifications

  • Modulation Mode: GFSK
  • RF Output Power: 10mW EIRP
  • RF Sensitivity: -90 dBm, typical
  • Antenna: True diversity
  • Battery 3 V DC (two 1.5 V AA)
  • Battery Life:
    -AA alkaline batteries: Approx. 15 hours
    -AA nickel-hydrogen batteries: Approx. 14 hours and 30 minutes
    -AA lithium batteries: Approx. 29 hours
    This varies depending on usage conditions.
  • Operating Temperature: 5ºC to +40ºC
  • Dimensions: 63.7 mm (2.5") × 22.7 mm (0.89") × 107.4 mm (4.2") (W × D × H)
  • Weight 80g (2.8 oz) ,without batteries

  • Input Connection: Four pin locking connector
    -Pin 1: GND
    -Pin 2: INST INPUT
    -Pin 3: MIC INPUT
    -Pin 4: DC BIAS +10 V

Ready-to-Go Systems from System 20 PRO

Keep things simple and buy one of Audio-Technica's pre-made systems! The transmitters included in each system are paired and ready to use out of the box, and offer all-day operation on a full charge.

ATW-1421 Dual Body-Pack System

ATW1422 Dual Handheld Microphone System

ATW-1423 Dual Handheld and Body-Pack System

System 20 Pro Components

Build your system from the ground up to be confident you have exactly what you need to meet your demands!

ATW-R1440 4 Channel Receiver

ATW-T1402 Handheld Wireless Mic

ATW-T1401 Body-Pack Transmitter

ATW-T1406 Boundary Microphone

ATW-T1407 Desk Stand Transmitter
