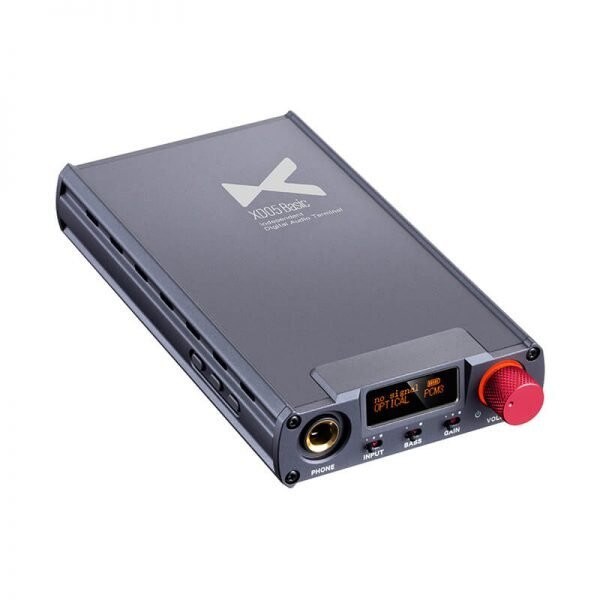

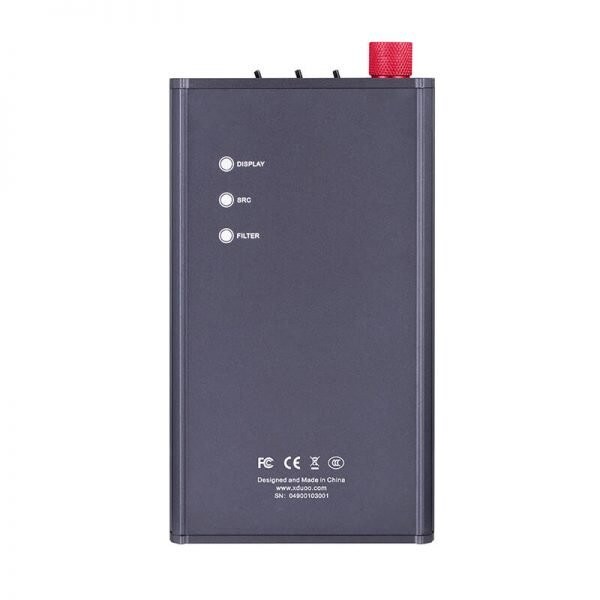

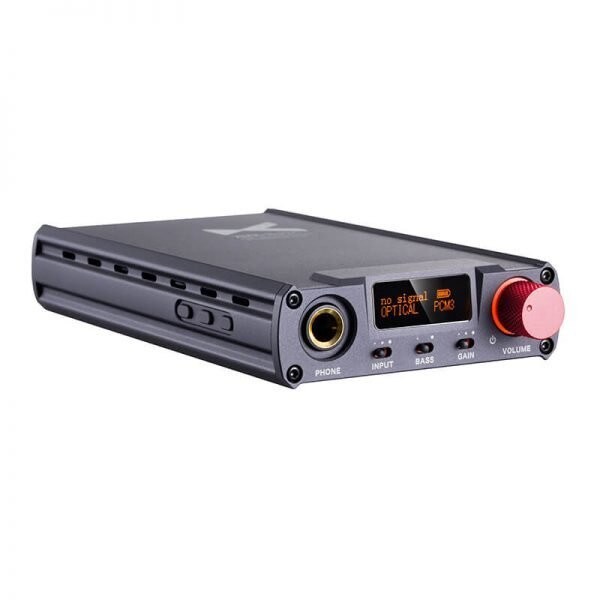

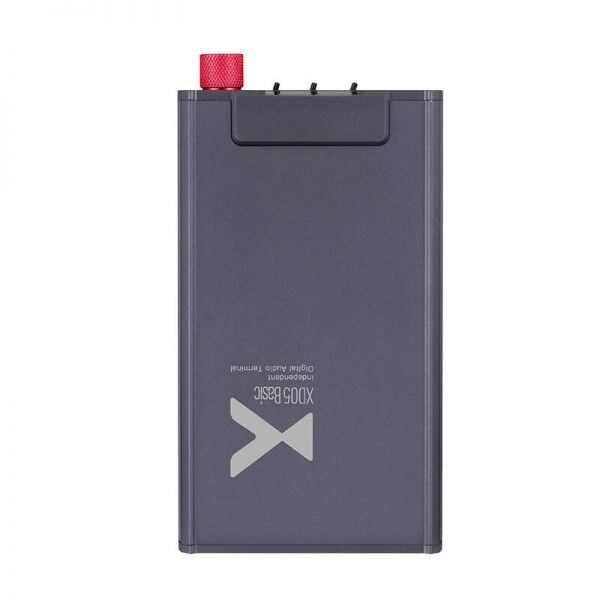

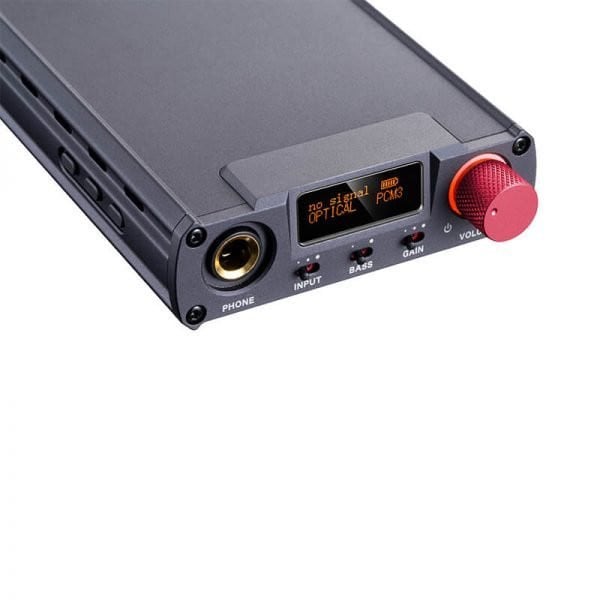

NEW xDuoo XD05 Basic Portable DAC and Headphone Amplifier

Read 1 Review or
xDuoo
Part #220-300

NEW xDuoo XD05 Basic Portable DAC and Headphone Amplifier

xDuoo
Part #220-300
Model: XD05 Basic
Read 1 Review or
The xDuoo XD05 Basic Portable DAC and Headphone Amplifier is a high-performance audio device designed to enhance your on-the-go listening experience. With its robust amplification capabilities, high-resolution DAC, and versatile connectivity, this portable powerhouse delivers clear, detailed sound whether you're at home or on the move. Compact yet powerful, the XD05 Basic is perfect for audiophiles who demand high-quality audio from their mobile devices.
This item is only available via UPS Ground in the contiguous United States.
Key Features
  • High-resolution DAC supports up to 32-bit/384kHz for crystal-clear sound
  • Long-lasting battery provides up to 16 hours of continuous playback
  • Powerful headphone amplifier delivers up to 500mW of output power

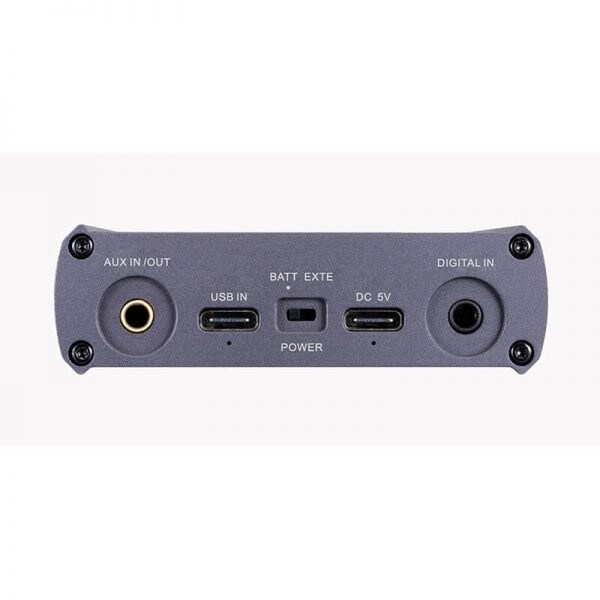

  • Versatile connectivity includes USB, coaxial/optical, and AUX inputs
  • Portable and lightweight design with a durable aluminum alloy chassis
  • Gain control and bass boost switch offer customized sound preferences

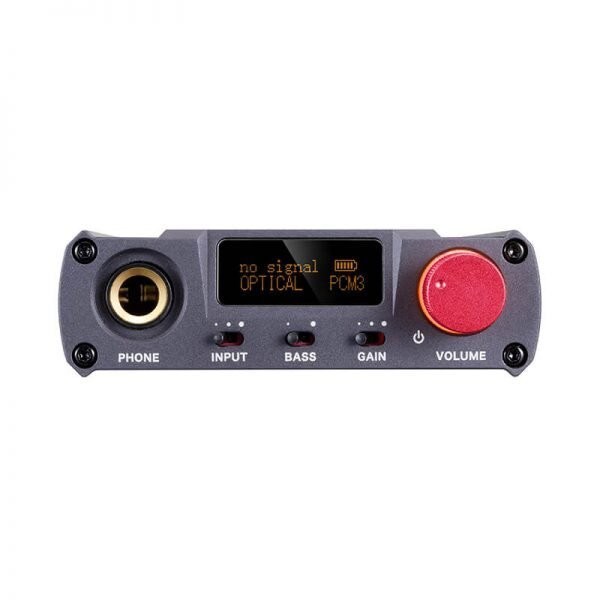

  • OLED display for easy navigation and real-time monitoring of settings
NEW $155.00
+ FREE SHIPPING
MSRP: $220.99
Save $65.99 (30%)
Bulk Pricing
Order in the next 15 hr 11 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

xDuoo XD05 Basic Portable DAC and Headphone Amplifier

The xDuoo XD05 Basic Portable DAC and Headphone Amplifier is engineered to bring studio-quality sound to your fingertips, whether you're listening on your smartphone, game system, or laptop. Its high-resolution DAC supports audio formats up to 32-bit/384kHz, ensuring that every note, beat, and vocal comes through with unparalleled clarity and precision. Combined with a powerful 500mW headphone amplifier, this compact device transforms ordinary listening sessions into immersive audio experiences, allowing you to hear your favorite music, movie, or game the way it was meant to be heard.

Designed with versatility in mind, the XD05 Basic offers multiple connectivity options, including USB, coaxial/optical, and AUX inputs, making it compatible with a wide range of devices. Its portable, lightweight design and durable aluminum alloy chassis make it the ideal companion for audiophiles on the go. With up to 12 hours of battery life, you can enjoy uninterrupted music playback throughout your day. The addition of a gain control and bass boost switch lets you tailor the sound to your personal preferences, while the OLED display provides easy access to all settings, guaranteeing a seamless and user-friendly experience.

Specifications:

  • DAC Chip: ES9018K2M
  • Gain: +6dB/9dB/16dB
  • Signal-to-Noise Ratio (SNR): 115dB
  • Bass Boost: 0/+6dB
  • Frequency Response:
    -USB/Optical/Coaxial: 20Hz-20kHz (±0.5dB)
    -AMP: 10Hz-60kHz (±0.5dB)
  • Total Harmonic Distortion + Noise (THD+N):
    -USB: 0.0025% @ 1kHz
    -Coaxial: 0.0025% @ 1kHz
    -Optical Fiber: 0.0025% @ 1kHz
    -Aux In: 0.0018% @ 1kHz
  • Output Power: 500mw (32 Ohm Load)
  • Crosstalk: ≥75dB
  • Charging Time:
    -Fast Charging: 1.2A ≤ 5 Hours
    -Slow Charging: 500MA ≤ 11 Hours
  • Playback Time:
    -USB In: ≥ 9 Hours
    -Aux In: ≥ 16 Hours
    -Coaxial/Optical Fiber: ≥12 Hours
  • USB Sampling Rate:
    -PCM: 16-32bit/44.1-384kHz
    -DSD: NOP/NATIVE mode, DSD64-256
    -DXD: 24-32 bit/352.8-384kHz
  • Optical/Coaxial Sampling Rate PCM: 16-24bit/44.1-192kHz
  • Applicable System: Win7, Win8, Win10, Mac OS X, IOS, Android
  • Size: 5.47" x 2.96" x 0.90"
  • Weight: 9.45 oz.

Includes:

  • XD-05 Basic (1 pc)
  • USB Type C Cable (1 pc)
  • USB Type C to Type C On The Go Cable (1 pc)
  • USB Type C to Micro USB On The Go Cable (1 pc)
  • 6.5mm to 3.5mm Jack Plug (1 pc)
  • Silicone Feet (10 pc)
  • Magic Glue (1 pc)
  • User Manual (1 pc)
  • Warranty Card (1 pc

Product Details

BrandxDuoo
ModelXD05 Basic
Part Number220-300
UPC981858867482
Unit of MeasureEach
Weight1.32
