  • 5 GHz 1080p Wireless HDMI Extender Transmitter/Receiver System 100m/328 ft.

5 GHz 1080p Wireless HDMI Extender Transmitter/Receiver System 100m/328 ft.

Parts Express
Part #184-452

5 GHz 1080p Wireless HDMI Extender Transmitter/Receiver System 100m/328 ft.

Parts Express
Part #184-452
Extend your HDMI HD signal wirelessly up to 328 ft. with this wireless transmit/receiver set. The set also has a built-in IR extender for remotely controlling the source at the receiver's location.
Key Features
  • Simple plug and play, no software needed
  • Extends HDMI signal up to 328 ft. for convenience
  • Compliant with HDCP 1.3
  • Supports LPCM and other uncompressed audio
  • Audio sampling rate up to 48 kHz
  • Includes two IR extender cables that plug into the receiver and transmitter for controlling the source at the displays location
  • FCC, CE, RoHS certified
Your Price: $199.98
+ FREE SHIPPING
MSRP: $229.98
Save $30.00 (13%)
Bulk Pricing
Order in the next 4 hr 13 min to ship today. Details

25In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

5 GHz 1080p Wireless HDMI Extender Transmitter/Receiver System 100m/328 ft.

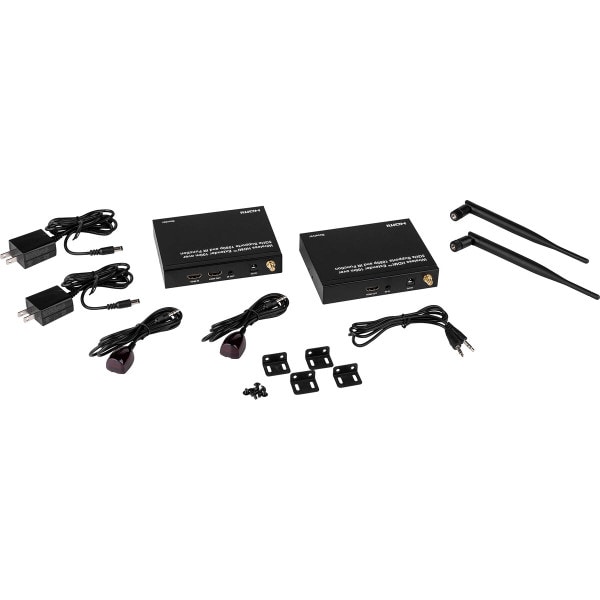

This wireless HDMI extender lets you extend HDMI audio/video signal up to 328 ft. via 5 GHz band, with very low latency. It's ideal for point to point signal extension situations that require high quality HDMI video in a location where running cable is difficult or impossible. A built-in inferred extender enables the user to remotely control the source with its original remote at the display's location. This kit includes two short IR cables that enable you to keep the two wireless boxes out of sight.

Note: When adding extra receivers, follow the troubleshooting guide line-by-line. You must use the included 3.5 mm cable. Do not connect power to the transmitter or receiver until all other cables are attached. You must press reset on the transmitter and receiver exactly at the same time when instructed. If any of the four receivers stop receiving, power cycle it. Allow two to three minutes after pairing or power cycling for the picture to appear.

Specifications: • Transmit frequency: 5 GHz • Wireless extension distance without obstruction: 328 ft. (100m) • Power requirements: 5 VDC @ 1A • Output resolution: Up to 1080p 60 Hz, depending on input resolution • Audio sampling rate: Up to 48 kHz • IR frequency range 20 - 60,000 Hz • Chassis material: Metal • Dimensions: 5.12" W x 3.94" D x 1" H (130 x 100 x 25.5 mm).

Product Details

BrandParts Express
Part Number184-452
UPC848864057736
Unit of MeasureEach
Weight2.35
