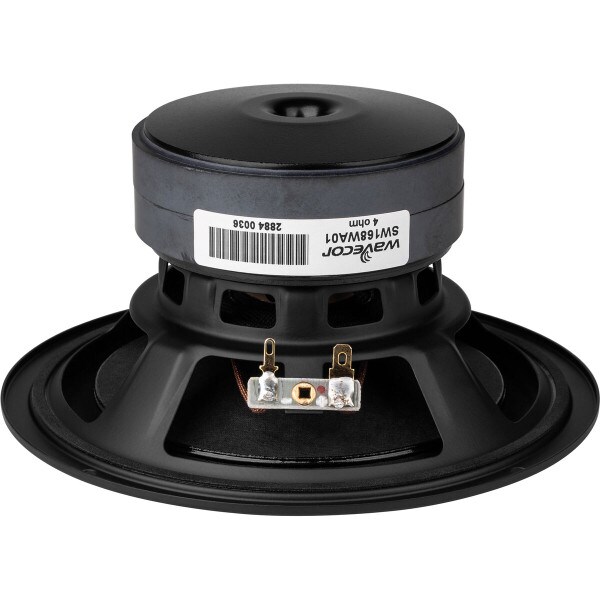

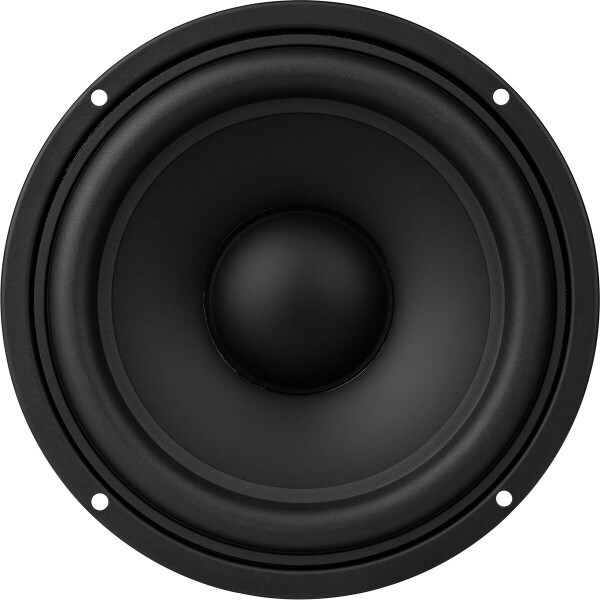

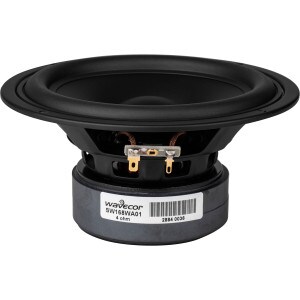

Wavecor SW168WA01 6-1/2" Balanced Drive Paper Cone Subwoofer 4 Ohm

Wavecor
Part #298-1052

Wavecor SW168WA01 6-1/2" Balanced Drive Paper Cone Subwoofer 4 Ohm

Wavecor
Part #298-1052
Model: SW168WA01
The Wavecor SW168WA01 is a 6-1/2" high-performance paper cone subwoofer that utilizes balance drive motor technology. The SW168WA01 is ideal in compact 3-way designs as a low frequency driver.
Key Features
  • Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
  • Rigid paper cones to ensure piston motion even at high levels - for reduced distortion
  • Rigid steel chassis’ with extensive venting for lower air flow speed reducing audible distortion
  • Built-in aluminum field-stabilizing rings for reduced distortion at high levels
  • Conex spider for better durability under extreme conditions
  • Vented center pole with dual flares for reduced noise level at large cone excursions
  • Gold plated terminals to ensure long-term trouble free connection
Your Price: $106.00
+ FREE SHIPPING
Bulk Pricing

Back-Ordered

Estimated back in stock 12/13/2024
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details

Overview

Wavecor SW168WA01 6-1/2" Balanced Drive Paper Cone Subwoofer 4 Ohm

The Wavecor SW168WA01 is a 6-1/2" high-performance subwoofer that utilizes balance drive motor technology which reduces even order harmonic distortion. This driver utilizes a rigid paper cone that is also designed to reduce distortion.

The SW168WA01 is ideal in compact 3-way designs as a low frequency driver. With the attached foam gasket, this driver is easily mounted in several different methods.

Product Details

BrandWavecor
ModelSW168WA01
Part Number298-1052
UPC848864054285
Unit of MeasureEach
Weight3.4

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)100 Watts
Power Handling (MAX)200 Watts
Impedance
Frequency Response40 to 500Hz
Sensitivity88.5dB 2.83V/1m
Voice Coil Diameter1.25"

Thiele-Small Parameters

Resonant Frequency (Fs)43Hz
DC Resistance (Re)
Voice Coil Inductance (Le)1.3mH
Mechanical Q (Qms)10.2
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)0.34ft³
Mechanical Compliance of Suspension (Cms)0.42mm/N
BL Product (BL)7.5T·m
Diaphragm Mass Inc. Airload (Mms)32.5g
Maximum Linear Excursion (Xmax)7mm
Surface Area of Cone (Sd)127cm²

Materials of Construction

Cone MaterialPaper
Voice Coil Wire MaterialAluminum
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.62"
Baffle Cutout Diameter5.59"
Depth3.22"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.16ft³
Sealed F375.9Hz
Vented Volume0.45ft³
Vented F338.7Hz
