Visaton W300-8 12" Woofer 8 Ohm

Visaton
Part #292-588

Visaton W300-8 12" Woofer 8 Ohm

Visaton
Part #292-588
Model: W300 - 8

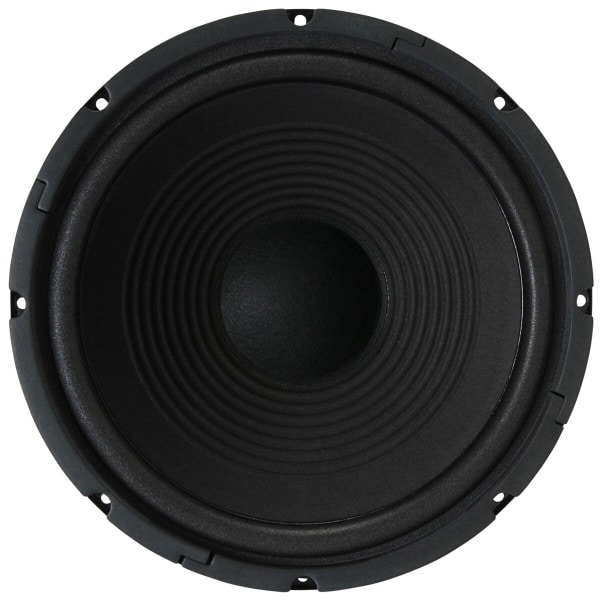

The 9069 W300 12" woofer from Visaton is a great replacement woofer for many sealed and ported speakers.
Key Features
  • Foam surround and ribbed paper cone for a classic sound
  • 5.25 mm of Xmax and excursion limit of ±14 mm for good bass performance
  • Great replacement driver for sealed and ported speaker cabinets
  • Can also be used as a subwoofer
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $91.17
MSRP: $118.99
Save $27.82 (23%)
Bulk Pricing
Quantity:Qty: 1-9 $91.17/ea
Quantity:Qty: 10-24 $88.45/ea
Quantity:Qty: 25+$84.66/ea
Order in the next 14 hr 40 min to ship today. Details

Only 3 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton W300-8 12" Woofer 8 Ohm

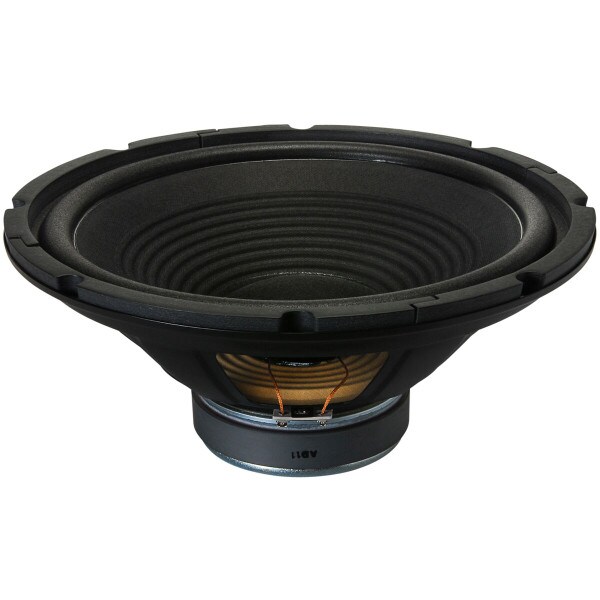

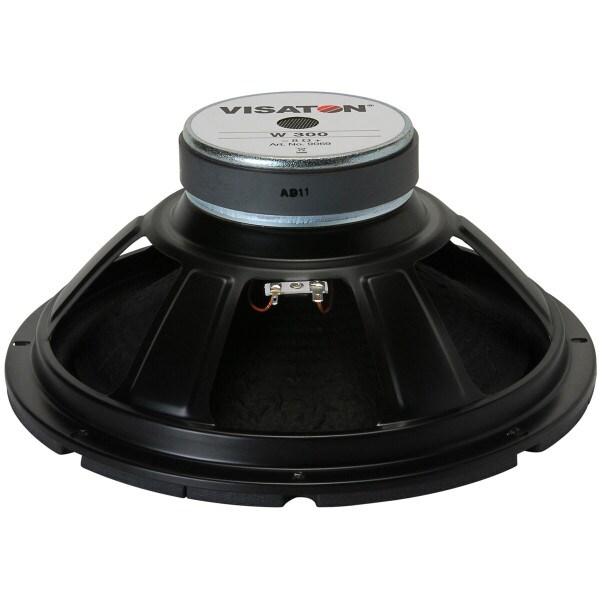

Visaton's 9069 W300 12" woofer is designed to be a high performance replacement speaker at a budget price point. A foam surround, ribbed treated-paper cone, and vented pole piece offer longevity while capturing that classic sound from the golden era of loudspeakers. A healthy 5.25 mm of Xmax and excursion limit of ±14 mm allows this driver to pump out some serious bass, rivaling some subwoofer, in many different sized sealed, acoustic suspension or ported cabinets. A smooth frequency response makes for easy integration with many different midrange speakers and tweeters.

Note: For best performance, install the W300 into one of the following cabinets:
• A 2.47 cubic foot sealed cabinet (F3 is 56 Hz with a Qtc of 0.8).
• A 3.53 cubic foot sealed cabinet (F3 is 49 Hz with a Qtc of 0.71).
• A 5.30 cubic foot sealed cabinet (F3 is 43 Hz with a Qtc of 0.62).
• A 2.47 cubic foot cabinet tuned to 36 Hz with a 3-1/8" diameter port that is 2-3/4" long.
• A 3.53 cubic foot cabinet tuned to 32 Hz with a 3-1/8" diameter port that is 7-7/8" long.
• A 5.30 cubic foot cabinet tuned to 29 Hz with two 2-1/2" ports that are 2-3/4" long.

Product Details

BrandVisaton
ModelW300 - 8
Part Number292-588
Unit of MeasureEach
Weight7.363

Product Specifications

Nominal Diameter12"
Power Handling (RMS)120 Watts
Power Handling (MAX)180 Watts
Impedance8Ω
Frequency Response32 to 2,500Hz
Sensitivity91dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)32Hz
DC Resistance (Re)6.6Ω
Voice Coil Inductance (Le)1.77mH
Mechanical Q (Qms)2.68
Electromagnetic Q (Qes)0.54
Total Q (Qts)0.45
Compliance Equivalent Volume (Vas)6.71ft³
Maximum Linear Excursion (Xmax)5.25mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialFoam

Mounting Information

Overall Outside Diameter12.01"
Baffle Cutout Diameter10.98"
Depth4.72"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume1.75ft³
Sealed F360.2Hz
Vented Volume2.5ft³
Vented F342.8Hz
