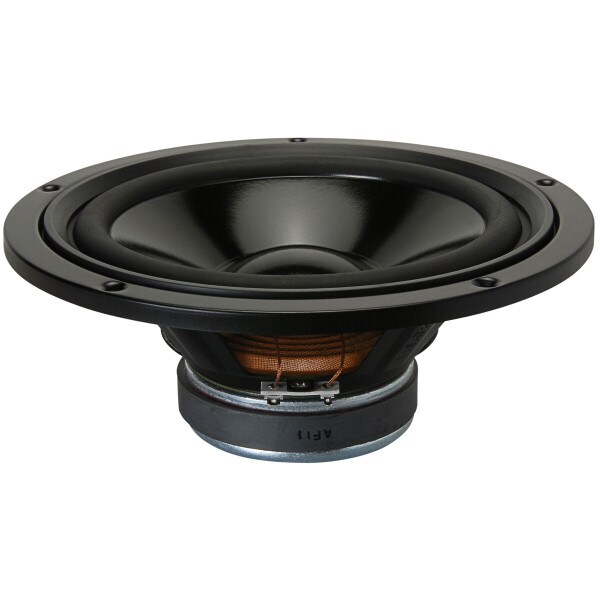

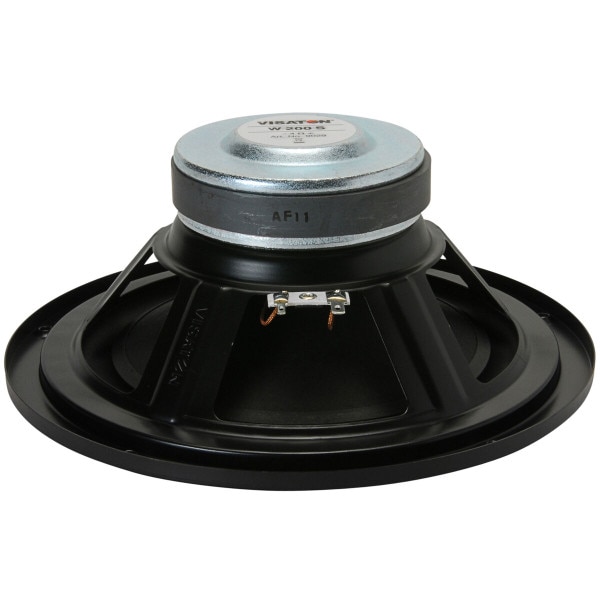

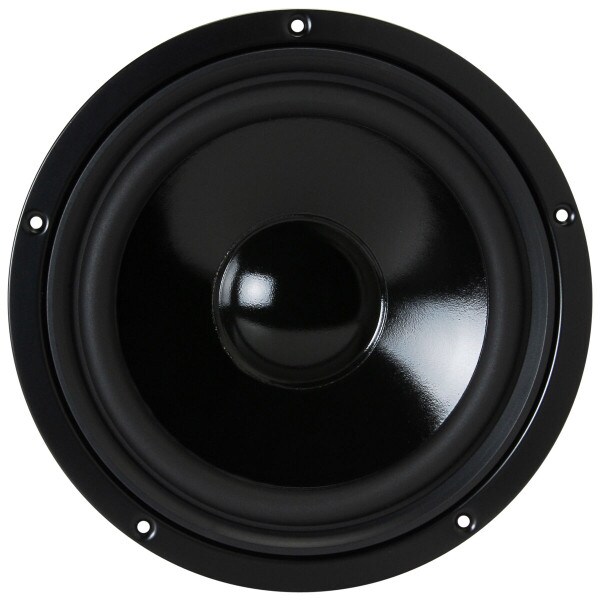

Visaton W200S-4 8" Woofer with Treated Paper Cone 4 Ohm

Visaton
Part #292-570

Visaton W200S-4 8" Woofer with Treated Paper Cone 4 Ohm

Visaton
Part #292-570
Model: W200S - 4
The 9029 W200S 8" woofer from Visaton delivers amazing performance not normally found in drivers this size at this price point. A low Qts allows you to get very deep bass in a reasonably sized ported enclosure.
Key Features
  • High-value HiFi woofer
  • 3.5 mm of Xmax and a ±10 mm excursion limit means you can use this as a subwoofer
  • Super-low 29 Hz Fs and 0.35 Qts specifications
  • Deep bass in a moderate-sized enclosure
  • 4 ohm impedance for use as a car audio subwoofer
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $64.29
MSRP: $83.99
Save $19.70 (23%)
Bulk Pricing
Quantity:Qty: 1-9 $64.29/ea
Quantity:Qty: 10-24 $62.37/ea
Quantity:Qty: 25+$59.70/ea
Order in the next 10 hr 9 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton W200S-4 8" Woofer with Treated Paper Cone 4 Ohm

Visaton's 9029 W200S 8" woofer features a coated paper cone, durable rubber surround, and a bumped back plate to allow all 3.5 mm of Xmax to be used with an excursion limit of ±10 mm. A balanced design approach between sensitivity, smooth frequency response (cross it over as high as 3,000 Hz), and extended bass allows this driver to be used as a woofer in two and three-way speaker systems or as a subwoofer.

Note: For best bass performance, install the W200S into one of the following cabinets:
• A 0.53 cubic foot sealed cabinet (F3 will be 70 Hz with a Qtc of 0.7).
• A 0.71 cubic foot cabinet tuned to 45 Hz with a 2" diameter port that is 5-1/2" long.
• A 1.06 cubic foot cabinet tuned to 39 Hz with a 2" diameter port that is 4-3/8" long.
• A 1.77 cubic foot cabinet tuned to 33 Hz with a 2-1/2" diameter port that is 5-1/8" long.

Product Details

BrandVisaton
ModelW200S - 4
Part Number292-570
Unit of MeasureEach
Weight3.624

Product Specifications

Nominal Diameter8"
Power Handling (RMS)75 Watts
Power Handling (MAX)115 Watts
Impedance4Ω
Frequency Response29 to 6,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter1.375"

Thiele-Small Parameters

Resonant Frequency (Fs)29Hz
DC Resistance (Re)3.4Ω
Voice Coil Inductance (Le)1.5mH
Mechanical Q (Qms)3.99
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)2.3ft³
Maximum Linear Excursion (Xmax)3.5mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber

Mounting Information

Overall Outside Diameter9.13"
Baffle Cutout Diameter7.25"
Depth3.46"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.8ft³
Sealed F365.9Hz
Vented Volume1.25ft³
Vented F337.8Hz
