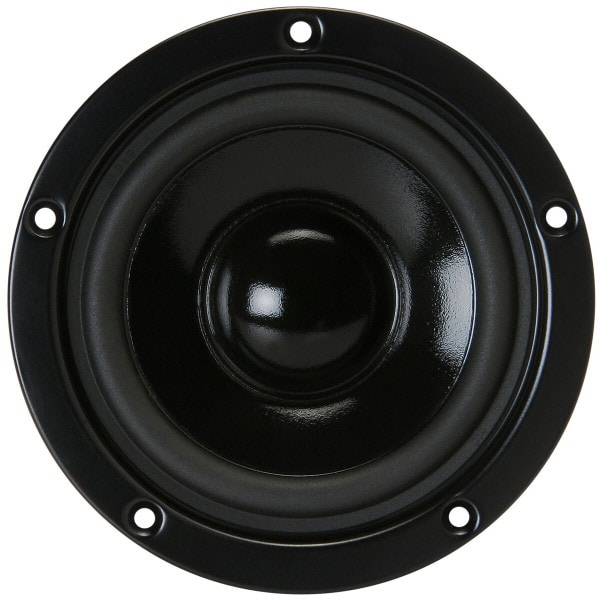

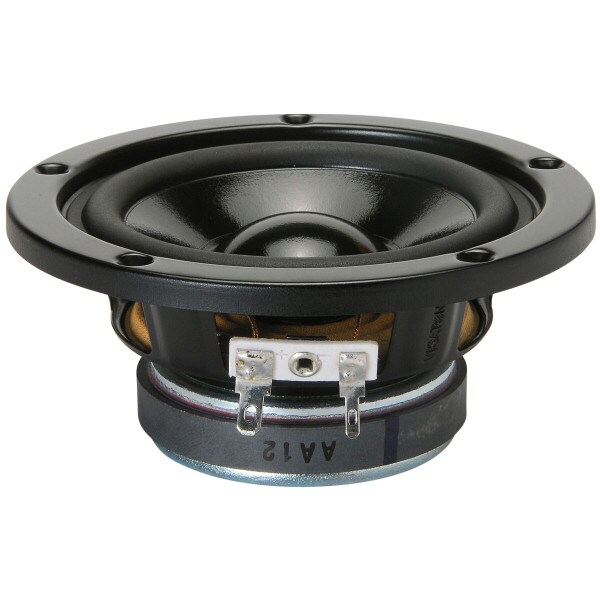

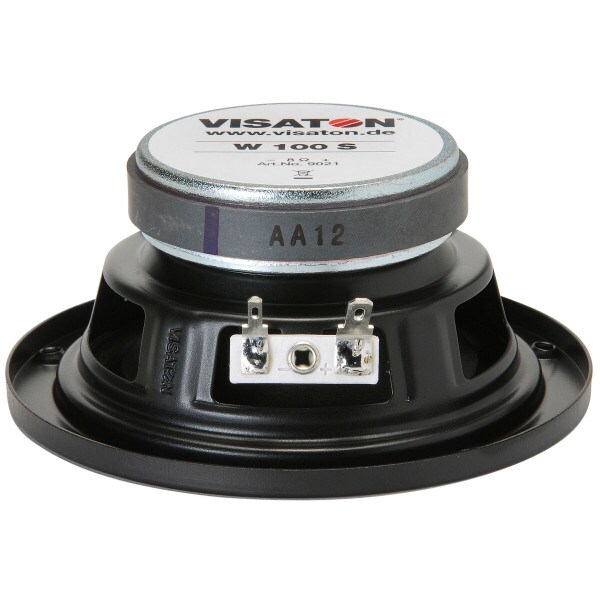

Visaton W100S-8 4" Woofer with Treated Paper Cone 8 Ohm

Visaton
Part #292-560

Visaton W100S-8 4" Woofer with Treated Paper Cone 8 Ohm

Visaton
Part #292-560
Model: W100S - 8

The 9021 W100S 8 ohm 4" woofer from Visaton delivers amazing bass and midrange performance not normally found in drivers at its price point.

Key Features
  • Relatively flat frequency response from 100 to 5,000 Hz
  • Able to play below 60 Hz in a proper vented cabinet
  • Great power handling and decent Xmax
  • For a quote on a large qty order, please press "Request Large Qty Quote"
Your Price: $33.23
MSRP: $43.99
Save $10.76 (24%)
Bulk Pricing
Quantity:Qty: 1-9 $33.23/ea
Quantity:Qty: 10-24 $32.24/ea
Quantity:Qty: 25+$30.86/ea
Ships next business day. Details

Only 4 In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Visaton W100S-8 4" Woofer with Treated Paper Cone 8 Ohm

Visaton's 9021 W100S 4" woofer features a coated paper cone and durable rubber surround. A very balanced frequency response allows the W100S to be used as a woofer in small 2-way speakers or a midbass/midrange in 3-way speakers, with a crossover point as high as 5,000 Hz. This allows you to build a surround sound system with large speakers for front and left, while maintaining the same voicing in smaller surround satellite speakers.

Note: For best bass performance, install the W130S into one of the following cabinets:
• A 0.14 cubic foot sealed cabinet (F3 is 100 Hz with a Qtc of 0.7).
• A 0.17 cubic foot cabinet tuned to 70 Hz with a 1-1/4" diameter port that is 2-3/8" long.
• A 0.35 cubic foot cabinet tuned to 56 Hz with a 1-1/4" diameter port that is 2" long.

Product Details

BrandVisaton
ModelW100S - 8
Part Number292-560
Unit of MeasureEach
Weight1.171

Product Specifications

Nominal Diameter4"
Power Handling (RMS)30 Watts
Power Handling (MAX)50 Watts
Impedance8Ω
Frequency Response63 to 15,000Hz
Sensitivity86dB 2.83V/1m
Voice Coil Diameter0.79"

Thiele-Small Parameters

Resonant Frequency (Fs)63Hz
DC Resistance (Re)6.7Ω
Voice Coil Inductance (Le)0.5mH
Mechanical Q (Qms)2.74
Electromagnetic Q (Qes)0.67
Total Q (Qts)0.54
Compliance Equivalent Volume (Vas)0.19ft³
Maximum Linear Excursion (Xmax)2mm

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialRubber

Mounting Information

Overall Outside Diameter4.8"
Baffle Cutout Diameter3.7"
Depth1.89"

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.1ft³
Sealed F395.8Hz
Vented Volume0.2ft³
Vented F359.4Hz
