  • Timpano Audio TPT-D250X 1" Phenolic Compression Horn Driver 1-3/8"-18 TPI

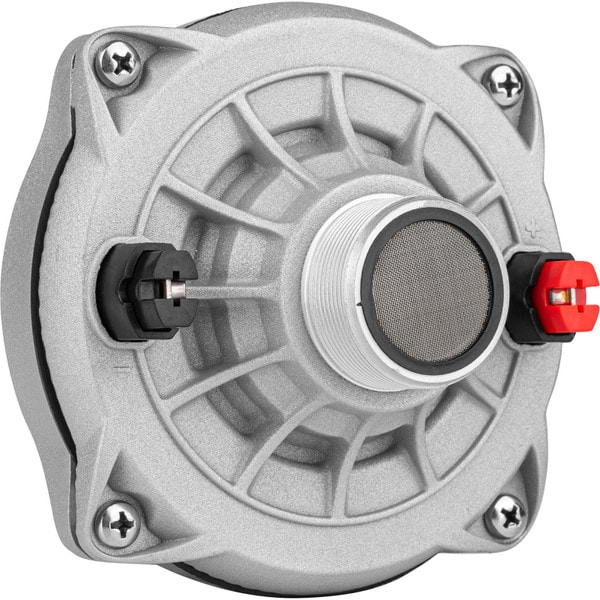

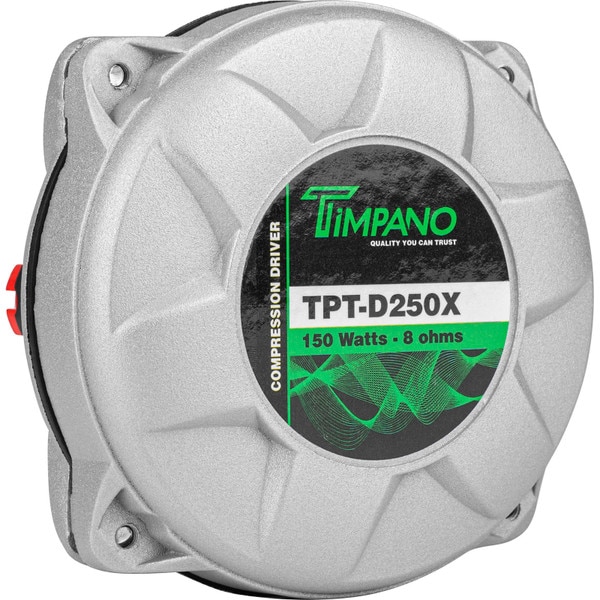

Timpano Audio TPT-D250X 1" Phenolic Compression Horn Driver 1-3/8"-18 TPI

Timpano Audio
Part #294-3348

Timpano Audio TPT-D250X 1" Phenolic Compression Horn Driver 1-3/8"-18 TPI

Timpano Audio
Part #294-3348
Model: TPT-D250X
The TPT-D250X 1" phenolic compression driver from Timpano Audio will produce unsurpassed midrange reproduction while hitting incredible output levels. With a bandwidth of 400 to 8,000 Hz this driver makes it easy to create a seamless transition to your midrange and tweeter.
Key Features
  • 2" phenolic diaphragm for natural response and wide bandwidth
  • 75 watts RMS and 107 dB efficient for high output capability
  • 400 to 8,000 Hz frequency response covers the sensitive vocal range
  • Screw on 1-3/8"-18 TPI mount is compatible with many popular horns
Your Price: $24.95
MSRP: $31.19
Save $6.24 (20%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Timpano Audio TPT-D250X 1" Phenolic Compression Horn Driver 1-3/8"-18 TPI

Timpano Audio's TPT-D250X 1" phenolic compression driver offers outstanding midrange performance for all high output sound systems. The easily replaceable, thin and light 2" phenolic diaphragm is designed specifically to produce the accurate and natural sound needed for proper vocal reproduction. Compact and lightweight, this driver is ideal for installations with minimal space such as mobile sounds systems and studio monitors. Finally, the standard screw on 1-3/8"-18 TPI mount makes this driver compatible with many popular horns.

Specifications:• Power handling: 75 watts RMS/150 watts peak • Recommended crossover: 500 Hz (12 dB/octave) • VCdia: 2" • Diaphragm: Phenolic • Impedance: 8 ohms • Frequency range: 400-8,000 Hz • Sensitivity: 107 dB • Mounting: Screw on 1-3/8"-18 TPI • Dimensions: 4" dia x 2" D.

Product Details

BrandTimpano Audio
ModelTPT-D250X
Part Number294-3348
UPC611056239063
Unit of MeasureEach
Weight3.15

Product Specifications

Diaphragm MaterialPhenolic
Exit Diameter1"
Mounting Type1-3/8"-18 TPI
Power Handling (RMS)75 Watts
Impedance8Ω

Specifications
