  • Celestion H1SC-8050 1" Exponential Horn 80 x 50 1-3/8"-18 TPI

Celestion H1SC-8050 1" Exponential Horn 80 x 50 1-3/8"-18 TPI

Celestion
Part #294-2946

Celestion H1SC-8050 1" Exponential Horn 80 x 50 1-3/8"-18 TPI

Celestion
Part #294-2946
Model: H1SC-8050

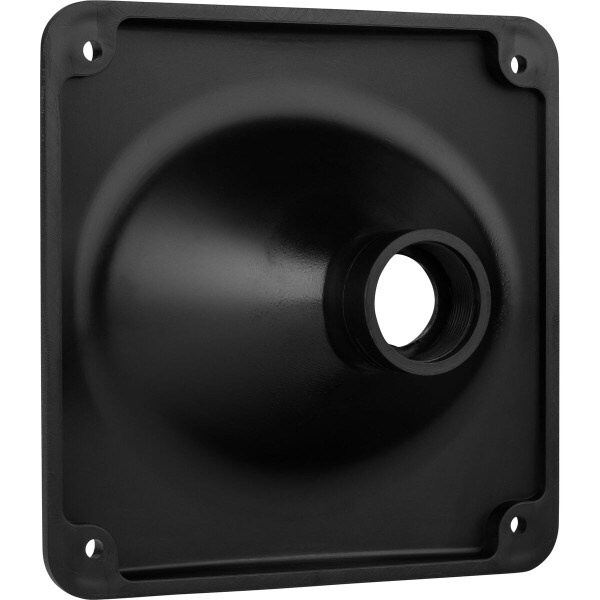

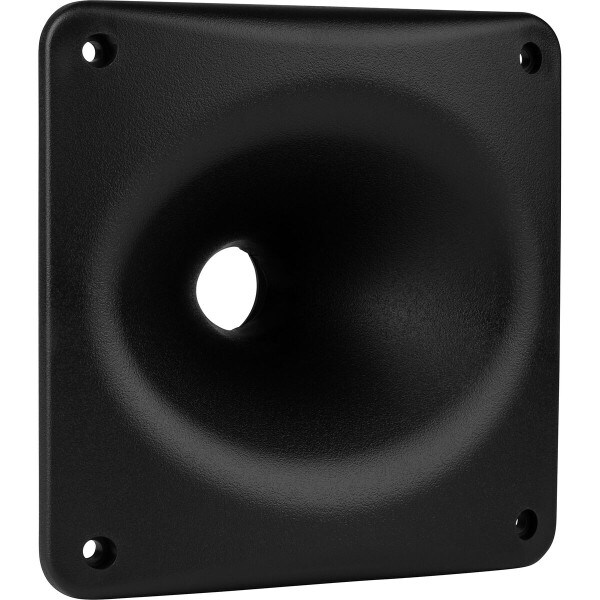

Celestion's H1SC-8050 7" x 7" horn uses durable reinforced ABS plastic construction to handle the difficult environment of professional audio. The controlled 80 H x 50 V dispersion pattern directs the output right where you want it and keep unwanted reflections to a minimum.
Key Features
  • Exponential horn flare for smooth response throughout the useable bandwidth
  • 1-3/8"-18 TPI screw on mount is compatible with many popular drivers
  • Rugged reinforced ABS provides excellent damping characteristics
  • 80 H x 50 V dispersion delivers room filling sound with minimal floor and ceiling reflection
Your Price: $20.00
MSRP: $30.00
Save $10.00 (33%)
Bulk Pricing
Order in the next 2 hr 51 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Celestion H1SC-8050 1" Exponential Horn 80 x 50 1-3/8"-18 TPI

The H1SC-8050 exponential horn from Celestion is ideal for designs where wide horizontal and narrow vertical dispersion is desired. With a 80° H x 50° V radiation pattern, this horn will produce room filling output while minimizing floor and ceiling reflection. With a 1-3/8" 18 TPI mount and loading down to 900 Hz, the H1SC-8050 is compatible with many of the most popular compression drivers available. Finally, the reinforced ABS plastic construction provides excellent damping and reliable performance.

Specifications: • Throat diameter: 1" • Driver mounting: 1-3/8"-18 TPI • Nominal coverage: 80°H x 50° V • Cutoff frequency: 900 Hz • Dimensions: 7" H x 7" W x 3.46" D • Cutout dimensions: 4" H x 5.5" W.

Product Details

BrandCelestion
ModelH1SC-8050
Part Number294-2946
UPC739894595261
Unit of MeasureEach
Weight0.6

Product Specifications

ConstructionABS
Entry / Throat Diameter1"
Mounting Type1-3/8"-18 TPI
