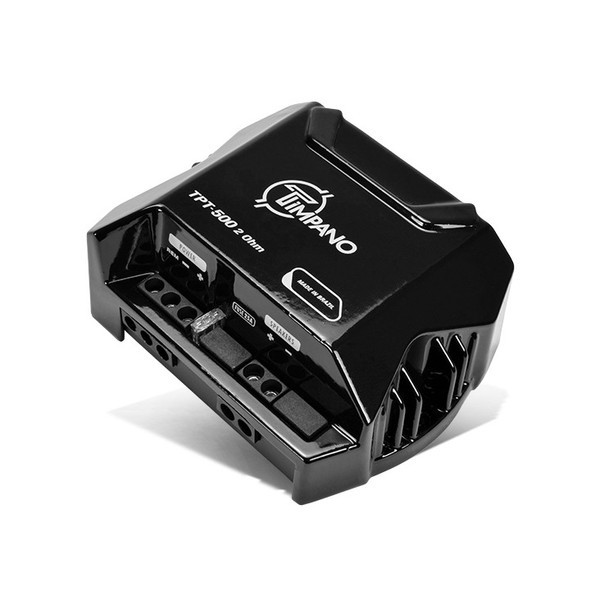

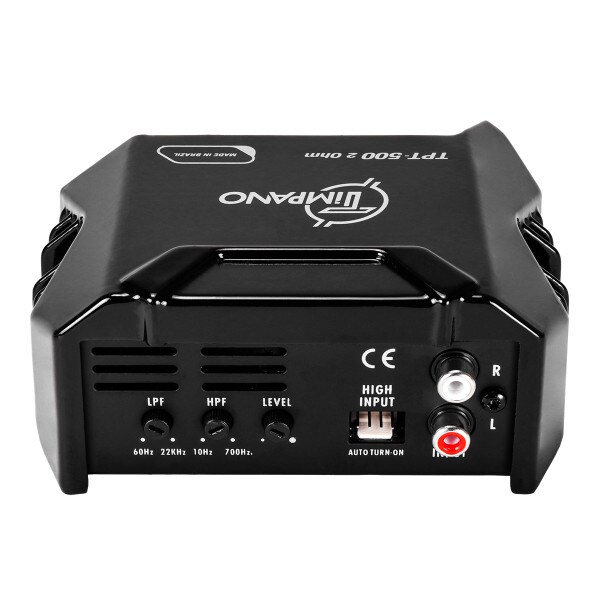

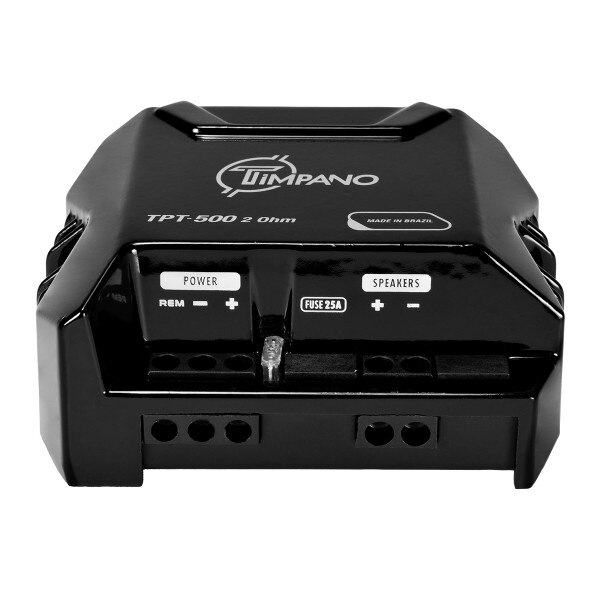

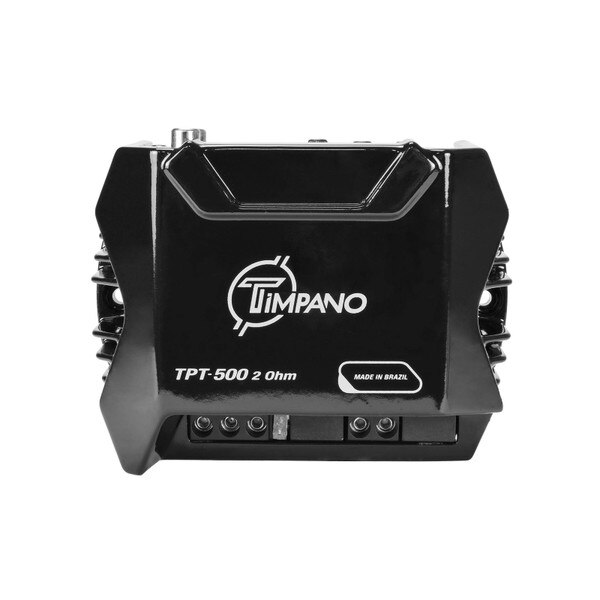

Timpano Audio TPT-500 2 Ohm 460 Watt Mono Car Audio Amplifier

Timpano Audio
Part #294-4110

Timpano Audio TPT-500 2 Ohm 460 Watt Mono Car Audio Amplifier

Timpano Audio
Part #294-4110
Model: TPT-500 2 Ohms
Timpano Audio's ultra-compact TPT-500 2 Ohms 1-channel car audio amplifier is ideal for installations where space is at a minimum. With built in variable crossover, 460 watts (2 ohms) of output, 2 ohm stability, and extensive protection circuitry, this amplifier packs everything you expect from larger amps into a 4" x 5" x 2" package. The small size and high output capability makes the TPT-500 2 Ohms perfect for powering motorcycle and ATV sound systems.
Key Features
  • Compact class-D mono design delivers high power without taking up much space
  • 2 ohm stable to produce up to 460 watts and higher output
  • Built in thermal and short circuit protection protects the amplifier against catastrophic failure
  • Built in variable high and low pass filters for easy tuning
  • High level inputs makes it easy to add a subwoofer to existing audio systems
Your Price: $69.95
MSRP: $87.44
Save $17.49 (20%)
Bulk Pricing
Ships next business day. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Timpano Audio TPT-500 2 Ohm 460 Watt Mono Car Audio Amplifier

For mobile audio installation that are short on space, the TPT-500 2 Ohms mono car audio amplifier from Timpano Audio is the perfect solution. This 460 watt RMS (@ 2 ohms) amplifier will produce a surprising amount of output capability from an ultra-compact 4" x 5" x 2" package. Capable of handling a 2 ohm load, the TPT-500 2 Ohms actually has the power and flexibility of much larger amplifiers. For simple tuning and level matching, this pint-sized powerhouse features variable high/low pass crossovers along with adjustable gains. Finally, a smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short. All of this makes the TPT-500 2 Ohms ideal for powering motorcycle and ATV subwoofer systems, or any mobile audio system with very little available space.

Specifications:
• Number of Channels: 1
• RMS Power at 2 Ohms 12.6V: 1 x 460W
• RMS Power at 4 Ohms 12.6V: 1 x 260W
• Supply Voltage: 11 ~ 15V
• Frequency Response: 10 Hz - 22 kHz
• Crossover Low Pass: variable 60 Hz to 22,000 Hz
• Crossover High Pass: variable 10 Hz to 700 Hz
• Signal to Noise: >90 dB
• Harmonic Distortion: <0.9 % THD
• Input Impedance: 10K Ohms with RCA and 38K Ohms with speaker level
• Impedance Output: 2 Ohms
• Consumption with Signal Musical: 1A ~ 18A
• Dimensions (L x W x H): 3.93" x 5.02" x 2"
• Weight: 1.12 lbs

Product Details

BrandTimpano Audio
ModelTPT-500 2 Ohms
Part Number294-4110
UPC611056239421
Unit of MeasureEach
Weight1.25

Product Specifications

Input TypeRCA Line Level-Speaker Level
Output Channels1
RMS Power Output (4 Ohms)250
Special Features2 ohm Stable
