Timpano Audio TPT-500.4 2 Ohm 400 Watt 4 Channel Car Audio Amplifier

Timpano Audio
Part #294-4108

Timpano Audio TPT-500.4 2 Ohm 400 Watt 4 Channel Car Audio Amplifier

Timpano Audio
Part #294-4108
Model: TPT-500.4 2 Ohms

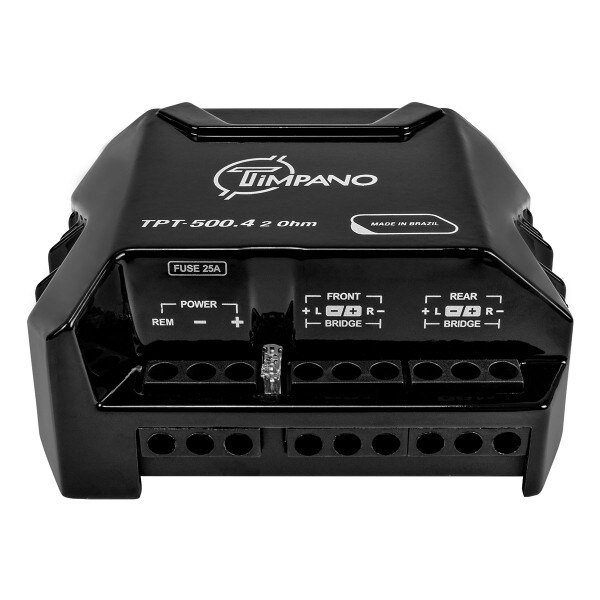

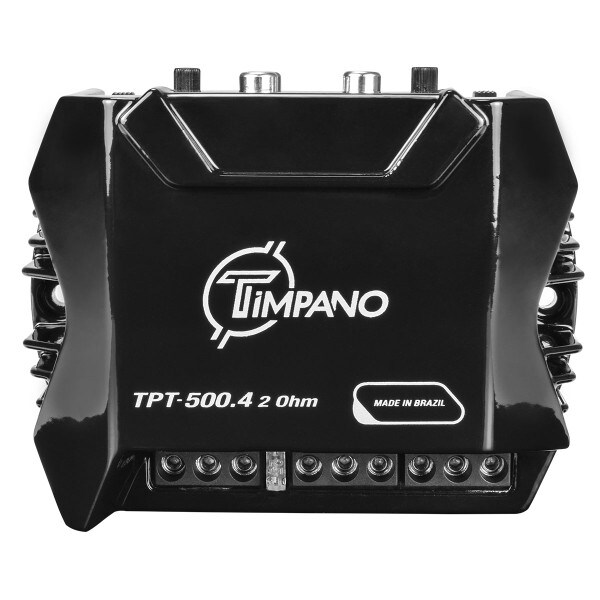

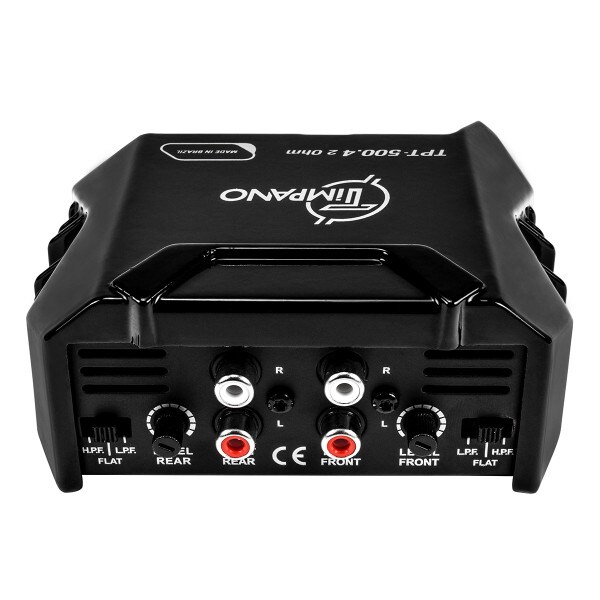

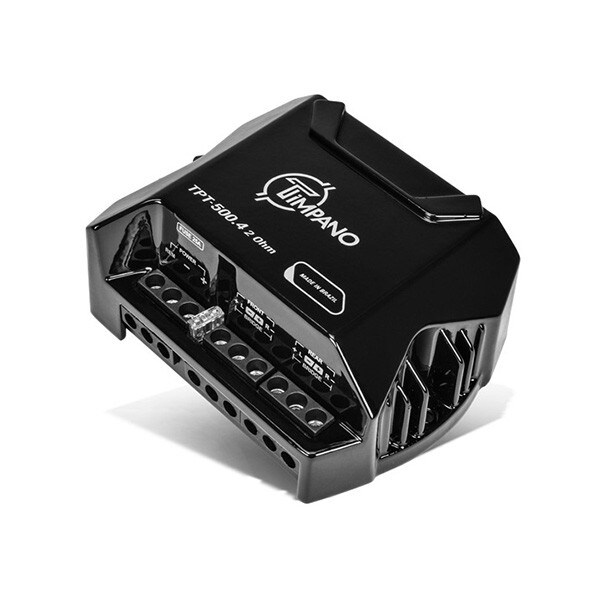

Timpano Audio's ultra-compact TPT-500.4 4-channel car audio amplifier is ideal for installations where space is at a minimum. With built in crossovers, 50 watts per channel (4 ohms), 2 ohm stability, and extensive protection circuitry, this amplifier packs everything you expect from larger amps into a 4" x 5" x 2" package. The small size and high output capability makes the TPT-500.4 perfect for powering motorcycle and ATV sound systems.
Key Features
  • Compact class-D 4-channel design delivers high power without taking up much space
  • 2 ohm stable and bridgeable to 2-channels for more power and higher output
  • Built in thermal and short circuit protection protects the amplifier against catastrophic failure
  • Front and rear channels each have built in high and low pass filters for easy tuning
Your Price: $69.95
+ FREE SHIPPING
MSRP: $87.44
Save $17.49 (20%)
Bulk Pricing
Order in the next 1 hr 15 min to ship today. Details

In Stock

Free Shipping available on orders over $49.00 in the US. Details

Overview

Timpano Audio TPT-500.4 2 Ohm 400 Watt 4 Channel Car Audio Amplifier

For mobile audio installation that are short on space, the TPT-500.4 4-channel car audio amplifier from Timpano Audio is the perfect solution. This 4 x 50 watt amplifier will produce a surprising amount of output capability from an ultra-compact 4" x 5" x 2" package. Capable of handling a 2 ohm load or bridgeable to 2-channels, the TPT-500.4 actually has the power and flexibility of much larger amplifiers. For simple tuning and level matching, this pint-sized powerhouse features front and rear switchable high/low pass crossovers along with adjustable gains. Finally, a smart electronic 2-way protection circuit protects the amp if it gets too hot or if speakers fail causing a short. All of this makes the TPT-500.4 ideal for powering motorcycle and ATV sound systems, or any mobile audio system with very little available space.

Specifications:
• Number of Channels: 4
• RMS Power at 2 Ohms 12.6V: 4 x 100W
• RMS Power at 4 Ohms 12.6V: 4 x 50W
• Bridged RMS Power at 4 Ohms 12.6V: 2 x 200W
• Supply Voltage: 11 ~ 15V
• Frequency Response: 10 Hz - 24 kHz
• Crossover Low Pass: fixed at 90 Hz + 45 Hz bass boost
• Crossover High Pass: Fixed at 90 Hz
• Signal to Noise: >90 dB
• Harmonic Distortion: <0.9 % THD
• Input Impedance: 20K Ohms
• Impedance Output: 2 Ohms
• Consumption with Signal Musical: 1A ~ 17A
• Dimensions (L x W x H): 3.93" x 5.02" x 2"
• Weight: 1.12 lbs

Product Details

BrandTimpano Audio
ModelTPT-500.4 2 Ohms
Part Number294-4108
UPC611056239438
Unit of MeasureEach
Weight1.25

Product Specifications

Input TypeRCA Line Level
Output Channels4
RMS Power Output (4 Ohms)50
Special Features2 ohm Stable-Bridgeable
