Tang Band W6-1721 6-1/2" Underhung Midbass Driver

Tang Band
Part #264-874

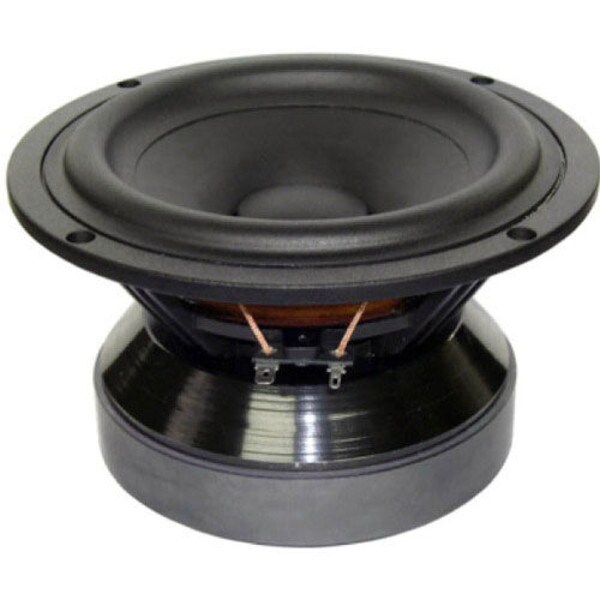

Tang Band W6-1721 6-1/2" Underhung Midbass Driver

Tang Band
Part #264-874
Model: W6-1721
The W6-1721 6" midbass features a long throw, underhung 1-1/2" voice coil driven by a massive 50 oz. ferrite magnet.
Key Features
  • Underhung voice coil driven by a powerful magnet assembly
  • Shorting ring lowers distortion and inductance for accurate midrange response
  • Short coil and long gap design allows incredible excursion capability
  • Smooth response up to 5,000, perfect driver for 2-way designs
Your Price: $149.90
+ FREE SHIPPING
MSRP: $220.99
Save $71.09 (32%)
Bulk Pricing
Quantity:Qty: 1-3 $149.90/ea
Quantity:Qty: 4+$145.50/ea
Order in the next 2 hr 26 min to ship today. Details

15In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band W6-1721 6-1/2" Underhung Midbass Driver

The W6-1721 6" midbass features a long throw, underhung 1-1/2" voice coil driven by a massive 50 oz. ferrite magnet. A shorting ring on the polepiece is responsible for the speaker's extremely low levels of second and third order harmonic distortion. This impressive motor is coupled to an optimized paper cone with rubber surround, supported by a cast aluminum frame. The driver's naturally high and smooth upper frequency rolloff facilitates simplified crossover designs.

Specifications:• Power handling: 50 watts RMS/100 watts max • VCdia: 1-1/2" • Impedance: 4 ohms • Re: 3.4 ohms • Frequency range: 40-5,000 Hz • Fs: 40 Hz • SPL: 88 dB 1W/1m • Vas: 1.04 cu. ft. • Qms: 3.58 • Qes: 0.49 • Qts: 0.43 • Xmax: 8 mm • Dimensions: Overall diameter: 6.95", Cutout diameter: 5.8", Depth: 4.3".

Product Details

BrandTang Band
ModelW6-1721
Part Number264-874
UPC844632069635
Unit of MeasureEach
Weight11.15

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.5
Power Handling (RMS)50 Watts
Power Handling (MAX)100 Watts
Impedance4Ω
Frequency Response40 to 5,000Hz
Sensitivity88dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)40Hz
DC Resistance (Re)3.4Ω
Voice Coil Inductance (Le)0.084mH
Mechanical Q (Qms)3.58
Electromagnetic Q (Qes)0.49
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)1.04ft³
Mechanical Compliance of Suspension (Cms)1.058mm/N
BL Product (BL)5.12T·m
Diaphragm Mass Inc. Airload (Mms)14.97g
Maximum Linear Excursion (Xmax)8mm
Surface Area of Cone (Sd)139.9cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.94"
Baffle Cutout Diameter5.8"
Depth4.3"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.4ft³
Sealed F374.1Hz
Vented Volume0.65ft³
Vented F347.3Hz
