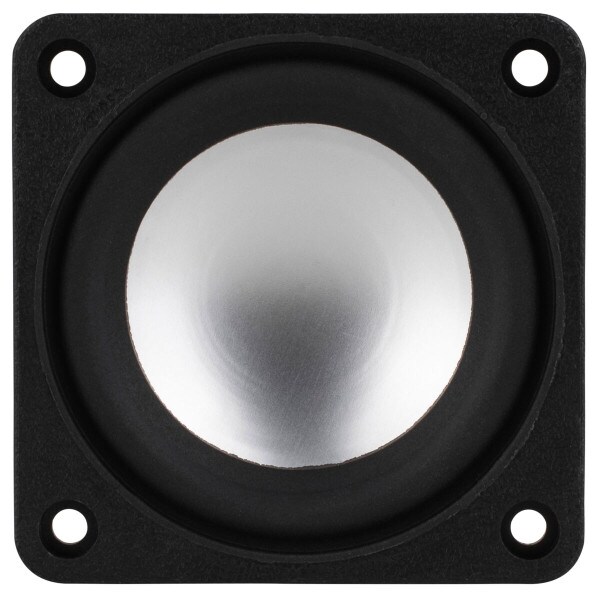

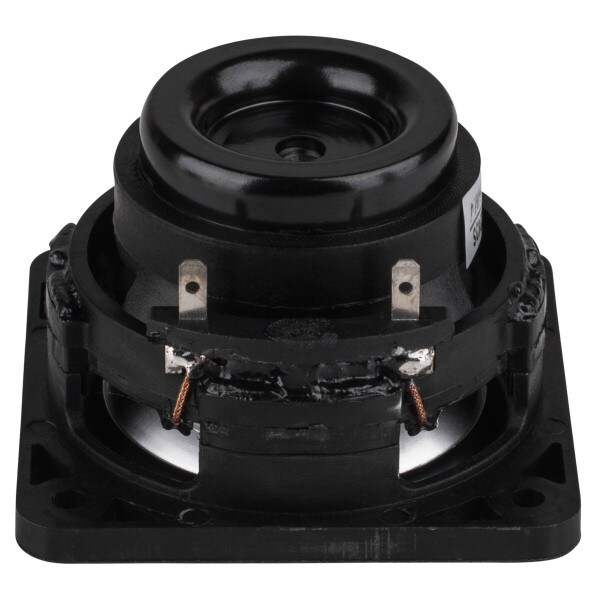

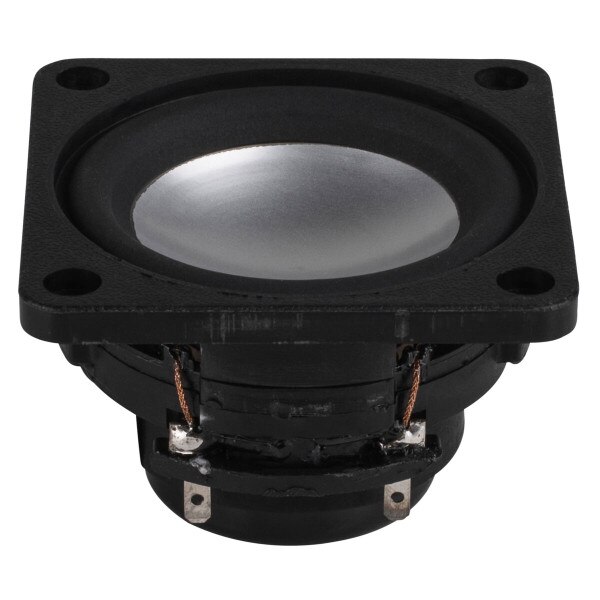

Tang Band W2-2243S 2" Aluminum/Magnesium Full-Range Driver

Tang Band
Part #264-803

Tang Band W2-2243S 2" Aluminum/Magnesium Full-Range Driver

Tang Band
Part #264-803
Model: W2-2243S
Tang Band improved upon the reliability of the popular W2-800SL and the result is the W2-2243S full-range wide dispersion driver. Similar to the original, this driver features an aluminum/magnesium diaphragm, a shielded neodymium magnet, and a sturdy nylon composite plastic basket.
Key Features
  • Full-range design with smooth response up to 20,000 Hz (±3 dB from 250 to 20,000 Hz)
  • Compact but powerful neodymium motor system is magnetically shielded elimination stray magnetic fields
  • Extensive venting for quiet excursion and high continuous power handling
  • Rigid composite nylon frame with flat mounting flange installs easily into a 2" diameter hole
Your Price: $41.98
MSRP: $62.99
Save $21.01 (33%)
Bulk Pricing
Quantity:Qty: 1-3 $41.98/ea
Quantity:Qty: 4-9 $37.78/ea
Quantity:Qty: 10+$35.68/ea
Order in the next 6 hr 43 min to ship today. Details

354In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Tang Band W2-2243S 2" Aluminum/Magnesium Full-Range Driver

Capable of providing an impressive amount of output for its size, Tang Band's W2-2243S 2" full-range driver is ideal for use in any compact speaker design. This well-built driver uses an aluminum/magnesium cone with a TPR surround to improve damping and provide smooth response from 260 to 20,000 Hz. With inset terminals and a flat mounting flange, the W2-2243S is easy to install on a flat mounting surface.

Product Details

BrandTang Band
ModelW2-2243S
Part Number264-803
UPC848864046617
Unit of MeasureEach
Weight0.25

Product Specifications

Nominal Diameter2"
Power Handling (RMS)10 Watts
Power Handling (MAX)20 Watts
Impedance4Ω
Frequency Response160 to 20,000Hz
Sensitivity87dB 2.83V/1m
Voice Coil Diameter1"

Thiele-Small Parameters

Resonant Frequency (Fs)160Hz
DC Resistance (Re)3.4Ω
Voice Coil Inductance (Le)0.036mH
Mechanical Q (Qms)4.5
Electromagnetic Q (Qes)0.32
Total Q (Qts)0.3
Compliance Equivalent Volume (Vas)0.0081ft³
Mechanical Compliance of Suspension (Cms)0.729mm/N
BL Product (BL)3.8T·m
Maximum Linear Excursion (Xmax)1mm
Surface Area of Cone (Sd)13cm²

Materials of Construction

Cone MaterialAluminum
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter2.24"
Baffle Cutout Diameter2.03"
Depth1.41"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Vented Volume0.01ft³
Vented F3154.7Hz
