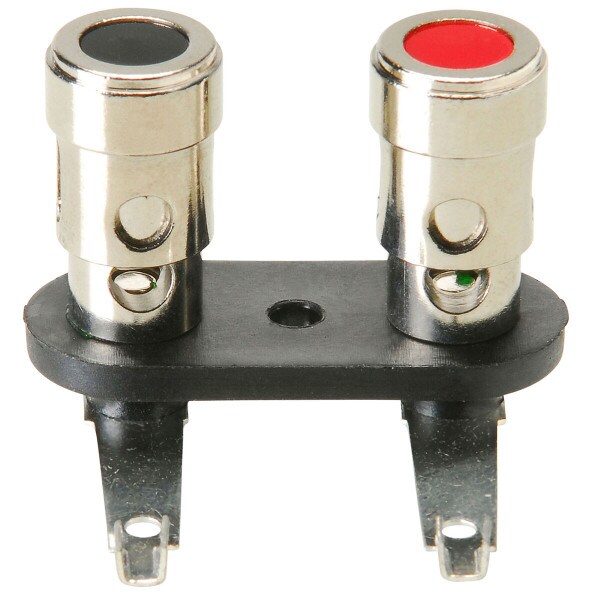

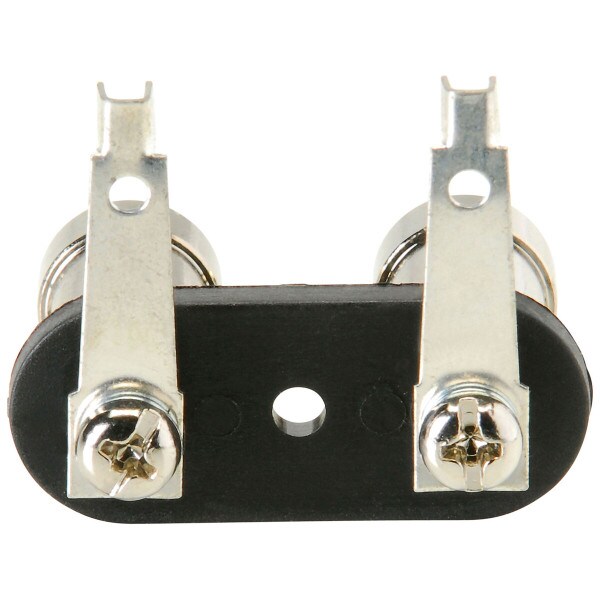

These heavy-duty spring loaded terminals are ideal for replacing broken loudspeaker driver terminals or for customization. The nickel plated posts are pre-mounted in pairs onto a strong plastic insulator/base. 3/16" holes in the polarity-marked pushbutton binding posts accept up to 8 AWG wire and hold it firmly. 13/16" solder tabs are attached to 1/8" high standoffs, and voice coil tinsel leads may be soldered to the tabs, crimped, or both. A 1/8" diameter hole in the base facilitates mounting to the loudspeaker chassis via screw or pop rivet.
Product Details | |
|---|---|
| Brand | Parts Express |
| Part Number | 091-1142 |
| UPC | 844632091636 |
| Unit of Measure | Each |
| Weight | 0.073 |
Product Specifications | |
|---|---|
| Contact Plating | Nickel |
| Style / Type | Dual |
