SPDT Stomp Box Foot Switch 3 Pins Latching 6A 125V

Parts Express
Part #060-077

SPDT Stomp Box Foot Switch 3 Pins Latching 6A 125V

Parts Express
Part #060-077

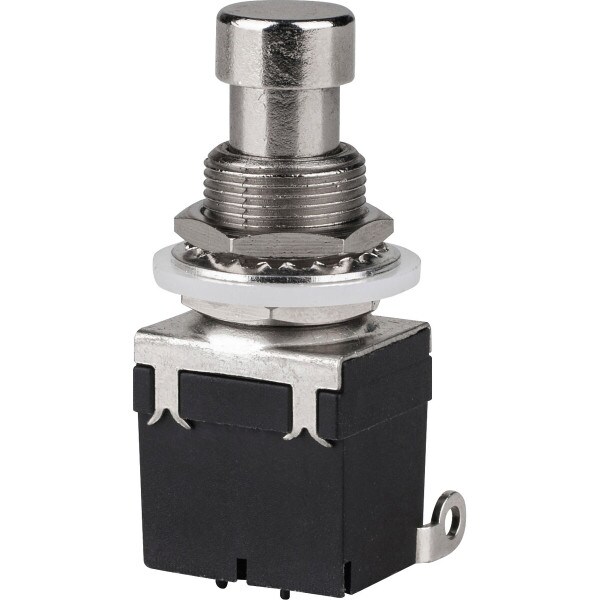

This heavy duty stomp box SPDT pushbutton switch has three side mount terminals. It mounts in skinnier boxes and can trigger multiple devices
Key Features
  • SPDT switching to control multiple actions
  • Three side mount terminals for flat mounting
  • Durable metal pushbutton
  • Easily mounts in 1/2" hole with included hardware
Your Price: $2.96
MSRP: $3.99
Save $1.03 (26%)
Bulk Pricing
Quantity:Qty: 1-9 $2.96/ea
Quantity:Qty: 10+$2.66/ea
Ships next business day. Details

44In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

SPDT Stomp Box Foot Switch 3 Pins Latching 6A 125V

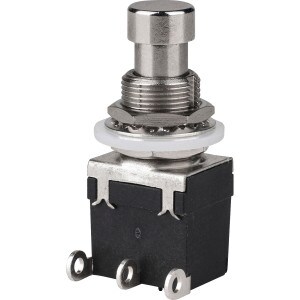

This SPDT switch's latching action switches on/off between two devices through three horizontal mounted soldering terminals. Center terminal input switches and isolates connection between the two output terminals turning one side on and the other side off by pressing the heavy duty metal button. The side mount soldering terminals keep the wires from getting pinched when stepping on the push button. Side mount terminals also save space so that you can mount the switch in a skinner box. The heavy duty metal push button holds up to continuous stomping action without snapping off. Includes two shaft nuts, star lock washer, and a plastic washer to prevent scratches.

Specifications: Current rating: 6A 125 VAC/3A 250 VAC • Switch body without terminals: 0.69" W x 0.57" D x 0.8" H • Terminal size from body: 0.25" L x 0.19" H x 0.033" D • Shaft size without button: 0.5" L x 0.47" Dia. • Button size: 0.4" H x 0.4" Dia. at its widest point.

Product Details

BrandParts Express
Part Number060-077
UPC848864058986
Unit of MeasureEach
Weight0.05

Product Specifications

CircuitSPDT
Contact Rating @ Voltage6A 125 VAC
IlluminationNon-Illuminated

Specifications
