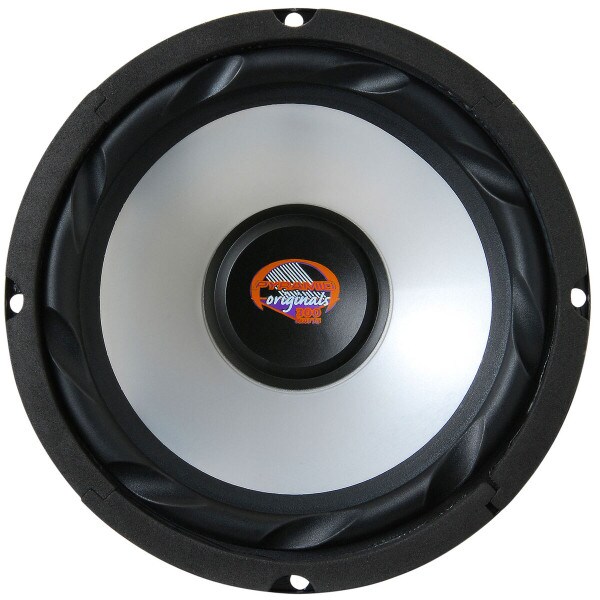

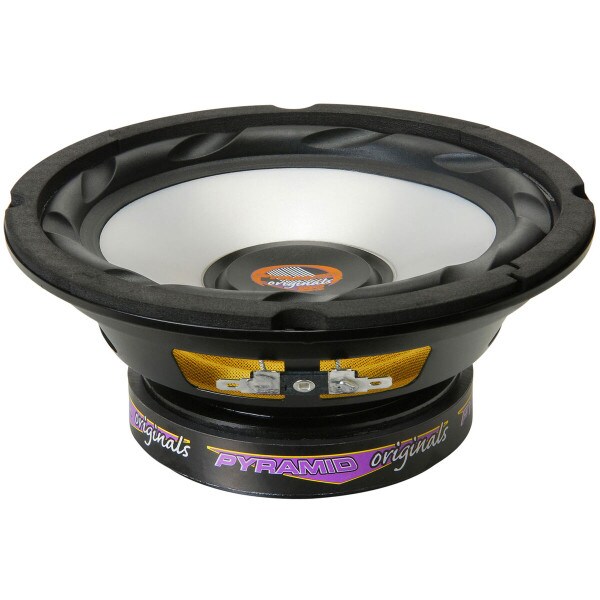

These classic quality, high-power drivers feature a white polypropylene cone that adds a distinctive look to any installation. Feature strong strontium magnets for high power handling, specially designed rubber surrounds, inverted-style dustcaps, and bumped back plates for extended excursion. Two year manufacturer's warranty.
Product Details | |
|---|---|
| Brand | Pyramid |
| Model | WX65X |
| Part Number | 290-270 |
| UPC | 068888702669 |
| Unit of Measure | Each |
| Weight | 2.71 |
Product Specifications | |
|---|---|
| Nominal Diameter | 6-1/2" |
| Power Handling (RMS) | 150 Watts |
| Power Handling (MAX) | 300 Watts |
| Impedance | 4Ω |
| Frequency Response | 70 to 3,500Hz |
| Sensitivity | 87.1dB 2.83V/1m |
| Voice Coil Diameter | 1" |
Thiele-Small Parameters | |
|---|---|
| Resonant Frequency (Fs) | 69.5Hz |
| DC Resistance (Re) | 3.3Ω |
| Mechanical Q (Qms) | 2.03 |
| Electromagnetic Q (Qes) | 0.82 |
| Total Q (Qts) | 0.58 |
| Compliance Equivalent Volume (Vas) | 0.3ft³ |
| Maximum Linear Excursion (Xmax) | 2mm |
Materials of Construction | |
|---|---|
| Cone Material | Poly |
| Surround Material | Rubber |
| Voice Coil Former | Kapton® / Polyimide |
Mounting Information | |
|---|---|
| Overall Outside Diameter | 6.57" |
| Baffle Cutout Diameter | 5.65" |
| Depth | 3.11" |
| # Mounting Holes | 4 |
Parts Express Staff Recommended Enclosure Volume | |
|---|---|
| Sealed Volume | 0.3ft³ |
| Sealed F3 | 95.6Hz |
| Vented Volume | 0.6ft³ |
| Vented F3 | 57.3Hz |
