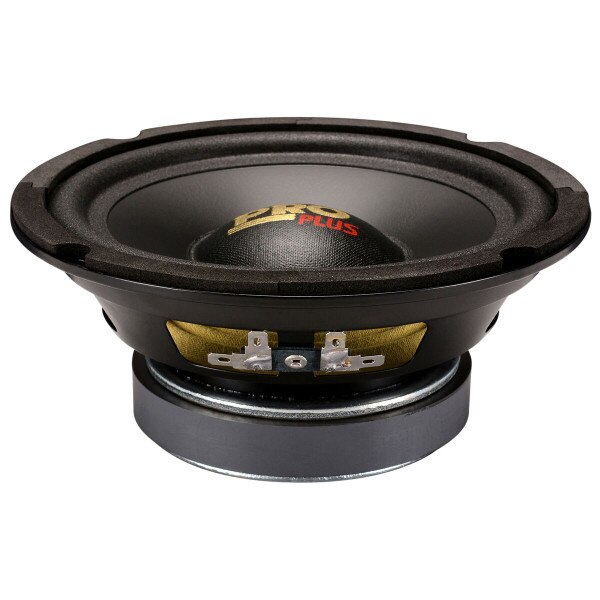

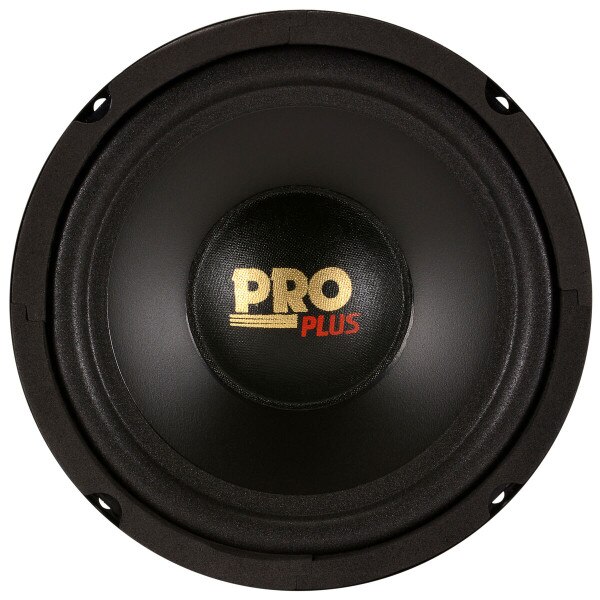

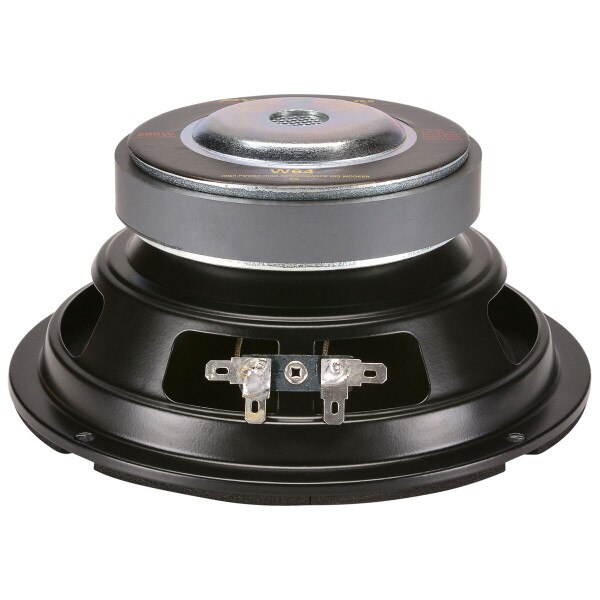

Pyramid W64 6-1/2" Pro Plus Midbass Woofer

Name: Pyramid W64 6-1/2" Pro Plus Midbass Woofer
Brand: Pyramid
SKU: 290-025
Price: 14.98 USD
Availability: OutOfStock
Rating: 4.4 (51 reviews)

Read 51 Reviews | 23 Questions, 85 Answers or

Pyramid

Part #290-025

Pyramid W64 6-1/2" Pro Plus Midbass Woofer

Pyramid

Part #290-025

Model: W64

Read 51 Reviews | 23 Questions, 85 Answers or

Ideal for use as a woofer in 2-way systems or midrange in 3-way systems.

Product Details

Brand

Pyramid

Model

W64

Part Number

290-025

UPC

068888701631

Unit of Measure

Each

Weight

3.04

Product Specifications

Nominal Diameter

6-1/2"

Power Handling (RMS)

100 Watts

Power Handling (MAX)

200 Watts

Impedance

4Ω

Frequency Response

65 to 3,600Hz

Sensitivity

94dB 2.83V/1m

Voice Coil Diameter

Thiele-Small Parameters

Resonant Frequency (Fs)

67Hz

Mechanical Q (Qms)

3.72

Electromagnetic Q (Qes)

0.93

Total Q (Qts)

0.74

Compliance Equivalent Volume (Vas)

0.02ft³

Materials of Construction

Cone Material

Poly

Surround Material

Foam

Magnet Material

Ferrite

Mounting Information

Overall Outside Diameter

6.5"

Baffle Cutout Diameter

5.75"

Depth

2.75"

# Mounting Holes

Parts Express Staff Recommended Enclosure Volume

Sealed Volume

0.3ft³

Sealed F3

71.7Hz
