Powered 1,000 Watt Dayton Audio Reference 18" With Dual Passive Radiator Subwoofer Kit

Parts Express
Part #300-7173

Powered 1,000 Watt Dayton Audio Reference 18" With Dual Passive Radiator Subwoofer Kit

Parts Express
Part #300-7173

If you need extreme output capabilities, gut wrenching low-end response, and minimal distortion, then this is the powered sub kit for you. Using Dayton Audio's massive RSS460HO-4 18" driver paired up with two of the RSS460-PR passive radiators and driven with 1,000 watts of power, this subwoofer kit is capable of seeming endless output capability with unbelievable low frequency extension. Beyond that, thanks to the low distortion design of the driver and added damping of the passive radiators, this kit produces remarkably low distortion levels. The addition of the SPA1000 subwoofer plate amplifier gives you the flexibility to easily integrate this potent bass making machine into your existing system.

Key Features
  • 18" Driver delivers amazing earth shaking low end with incredible output capability
  • Powerful 1,000 watt amplifier produces dynamic bass response with finesse and authority
  • Passive radiator assisted design extends bass response from a compact enclosure
  • Excellent choice for serious home theater applications and massive music systems
  • Customize the precision CNC-cut MDF enclosure to fit in any décor
Your Price: $1,299.98
+ FREE SHIPPING
MSRP: $1,899.99
Save $600.01 (32%)
Bulk Pricing
Order in the next 3 hr 11 min to ship today. Details

In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Powered 1,000 Watt Dayton Audio Reference 18" With Dual Passive Radiator Subwoofer Kit

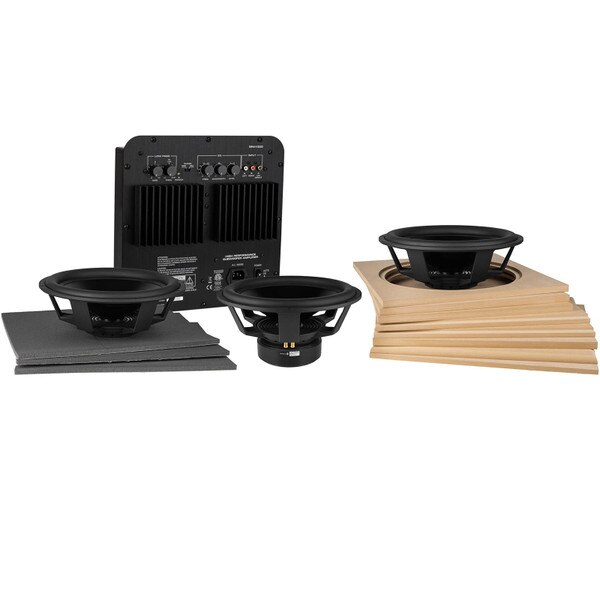

Using Dayton Audio's incredible RSS460HO-4 18" driver with two of the matching RSS460-PR 18" passive radiators and driven with the powerful SPA1000 1,000 watt amplifier, this imposing subwoofer kit is not for the faint of heart.

Capable of over 115 dB of output and unassisted response to 20 Hz and lower, this subwoofer kit is a great match for some of the largest music and home theater systems. With plenty of output capability to shake your home's foundation (and possibly your neighbor's) this kit is sure to impress anyone on the quest for more bass. This subwoofer is not just about output, with triple shorting rings, extensive venting, and a rigid aluminum cone, the RSS460HO-4 18" driver is known for its remarkably low distortion characteristics. Also, by using dual passive radiators the low frequency extension has been extended while keeping group delay through the audible range remarkably low to deliver a quick and responsive punch you wouldn't expect from a subwoofer this size. In addition, with 1,000 watts of class A/B power at your disposal, this subwoofer has enough headroom to produce incredible dynamics with stunning detail and finesse.

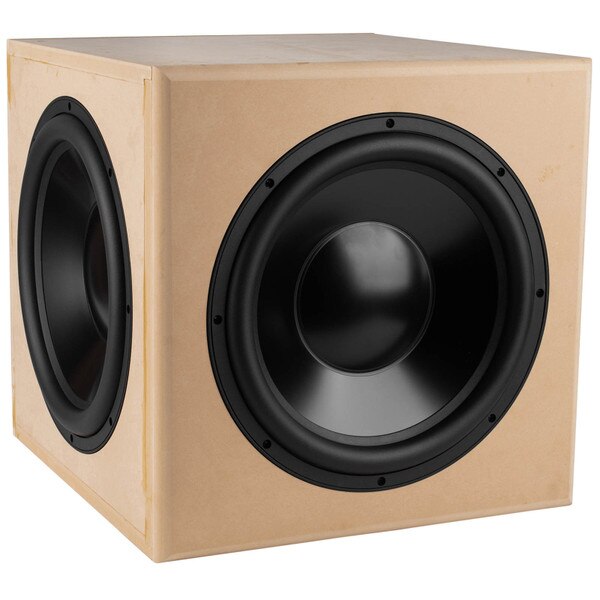

Finally, the included CNC-cut knock-down enclosure is constructed of thoroughly braced 3/4" MDF with a double thickness 1-1/2" front baffle.

Note: Speaker spikes or feet are not included.

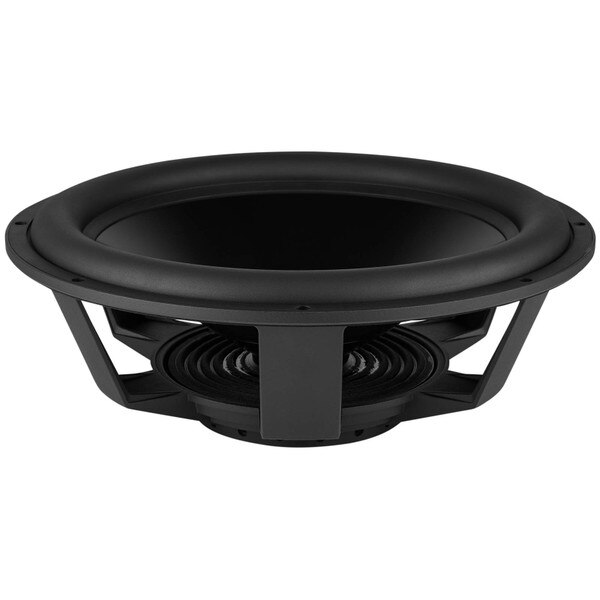

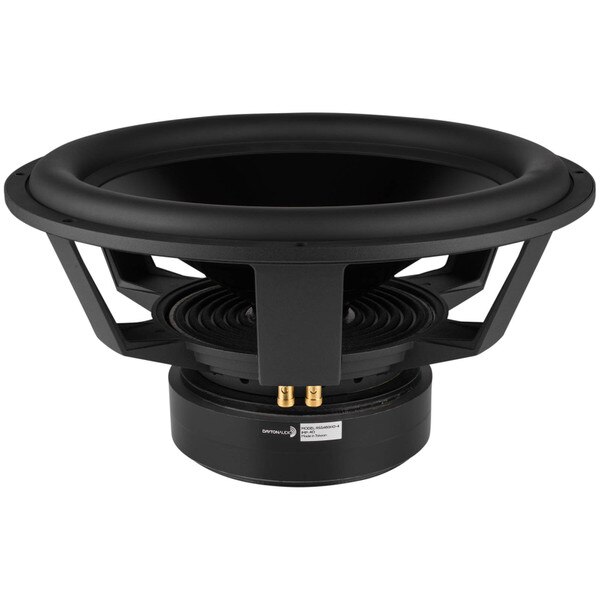

Dayton Audio RSS460HO-4 18" Subwoofer Specifications: • Power handling: 900 watts RMS/1,800 watts max • Le: 2.24 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency response: 20-500 Hz • Fs: 18.8 Hz • SPL: 93 dB 2.83V/1m • Vas 9.61 ft³ • Qms: 4.05 • Qes: 0.35 • Qts: 0.32 • Xmax: 12.75 mm.

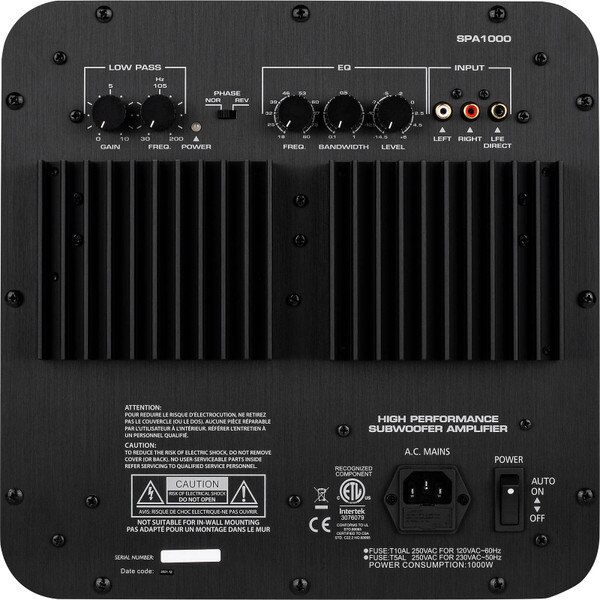

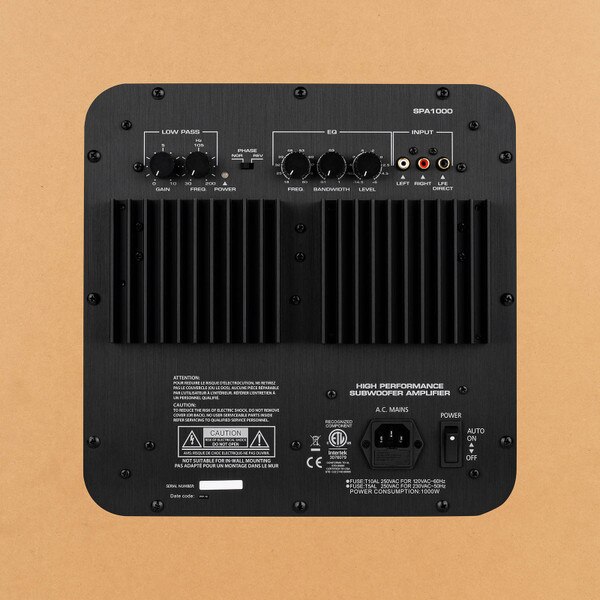

Dayton Audio SPA1000 Subwoofer Amplifier Specifications: • Power output: 950 watts RMS @ 4 ohms • Frequency Response: 20 to 200 Hz • SNR, A-Weighted: 98 dB • Total Harmonic Distortion: <1% • Inputs: 2x RCA Inputs, 1x LFE Direct Input • Power Requirements: 115 - 230 VAC.

Enclosure Specifications: • Panel thickness: 3/4" • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 5.7 cubic feet • External dimensions: 23" H x 23" W x 23.75" D • Completed subwoofer weight: 92 lbs. • Made in the U.S.A.

Product Details

Part Number300-7173
UPC848864067292
Weight120

Product Specifications

Cabinet Dimensions (HxWxD)23" x 23" x 23.75"
Cabinet OptionsUnfinished/Unassembled
ColorNatural
ConfigurationSubwoofer
Input Rating1,000
Speaker TypeSubwoofer
Woofer Diameter18"
