  • Powered 1,000 Watt Dayton Audio Reference 15" With Dual Passive Radiator Subwoofer Kit

Powered 1,000 Watt Dayton Audio Reference 15" With Dual Passive Radiator Subwoofer Kit

1 Question, 2 Answers or
Parts Express
Part #300-7171

Powered 1,000 Watt Dayton Audio Reference 15" With Dual Passive Radiator Subwoofer Kit

Parts Express
Part #300-7171
1 Question, 2 Answers or

With unassisted response down to 20 Hz and incredible output capability, this 1000 watt 15" passive radiator assisted subwoofer kit is an excellent addition to large music and home theater systems. Using Dayton Audio's RSS390HO-4 driver teamed up with a pair of the matching RSS390-PR passive radiators, this kit will not only deliver high output but distortion is remarkably low too. The addition of the SPA1000 subwoofer plate amplifier gives you the flexibility to easily integrate this potent into your existing system.

Key Features
  • High excursion RSS390HO-4 driver delivers powerful bass response with low distortion
  • Powerful 1,000 watt amplifier produces dynamic bass response with finesse and authority
  • Passive radiator assisted design extends bass response and keeps enclosure small
  • Perfect for use with high power music and home theater systems
  • Customize the precision CNC-cut MDF enclosure to fit in any decor
Your Price: $1,049.98
+ FREE SHIPPING
MSRP: $1,499.99
Save $450.01 (30%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Powered 1,000 Watt Dayton Audio Reference 15" With Dual Passive Radiator Subwoofer Kit

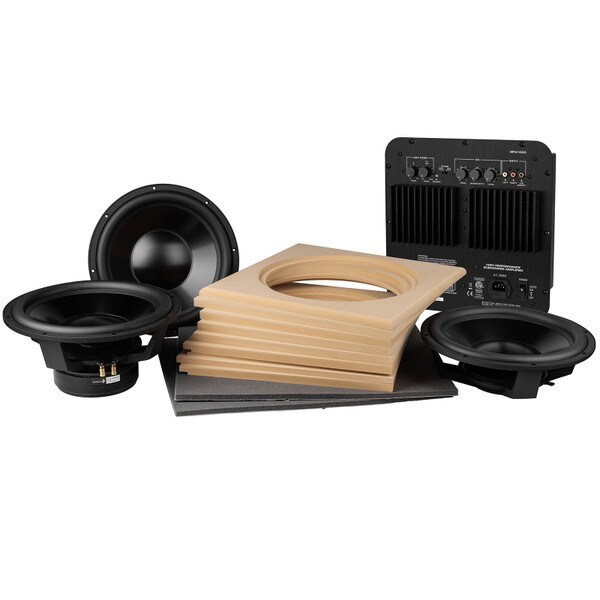

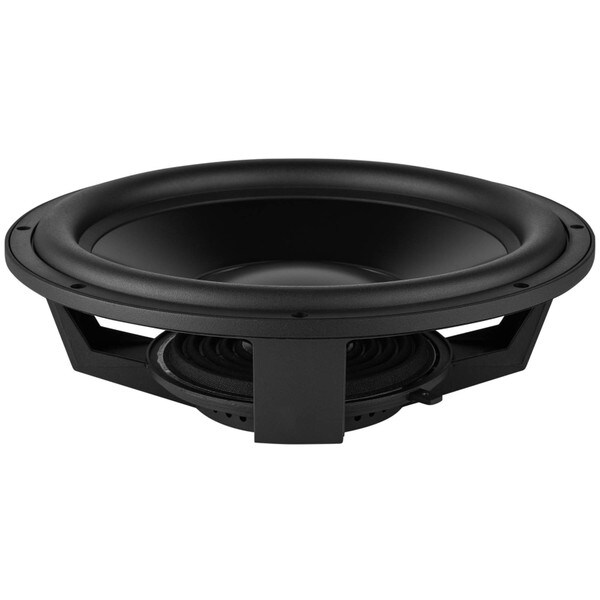

For ultra-low frequency reproduction, powerful output capability, and incredibly low distortion, this active 1,000 watt 15" subwoofer kit is an obvious choice. Using the popular Dayton Audio Reference Series RSS390HO-4 15" aluminum cone driver and two of the matching RSS390-PR 15" passive radiators, this subwoofer kit is an incredibly potent combination. Thanks to Dayton Audio’s SPA1000 1,000 watt subwoofer amplifier, you have the ability to integrate this subwoofer into any existing audio system.

With an unassisted response down to 24 Hz and capable of over 112 dB of output, you can expect earth shaking bass response without the high distortion that can result from applying massive amounts bass boost which is all too common on many high output subwoofer systems. In addition, with 1,000 watts of class A/B power at your disposal, this subwoofer has enough headroom to produce incredible dynamics with stunning detail and finesse.

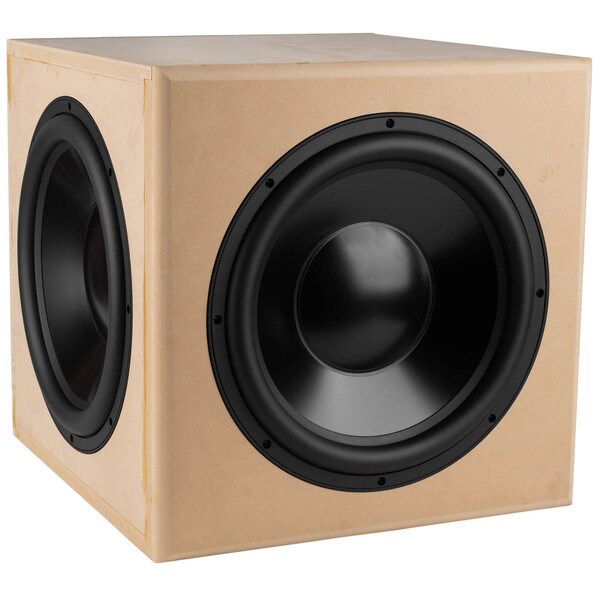

The included CNC-cut knock-down enclosure is constructed of thoroughly braced 3/4" MDF with a double thickness 1-1/2" front baffle.

Note: Speaker spikes or feet are not included.

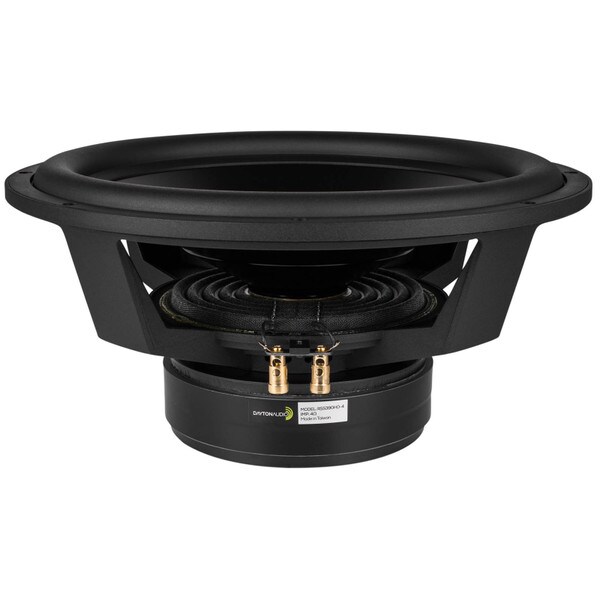

Dayton Audio RSS390HO-4 15" Subwoofer Specifications: • Power handling: 800 watts RMS/1,600 watts max • Le: 1.79 mH • Impedance: 4 ohms • Re: 3.2 ohms • Frequency response: 21-600 Hz • Fs: 21.5 Hz • SPL: 92.8 dB 2.83V/1m • Vas 5.93 ft³ • Qms: 3.69 • Qes: 0.35 • Qts: 0.32 • Xmax: 12 mm.

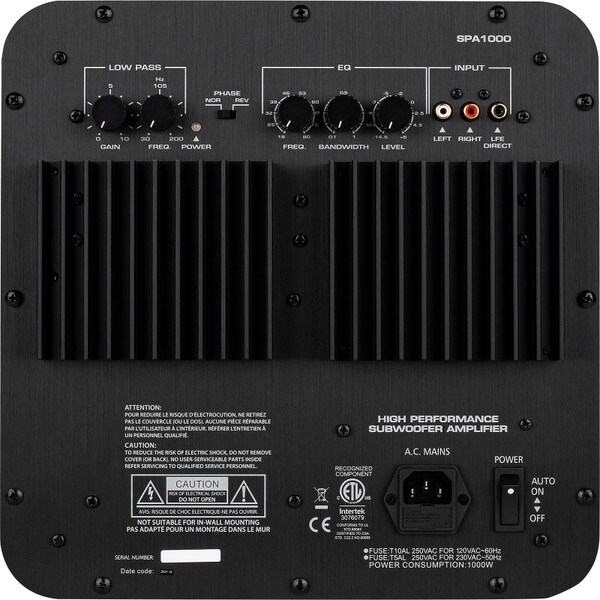

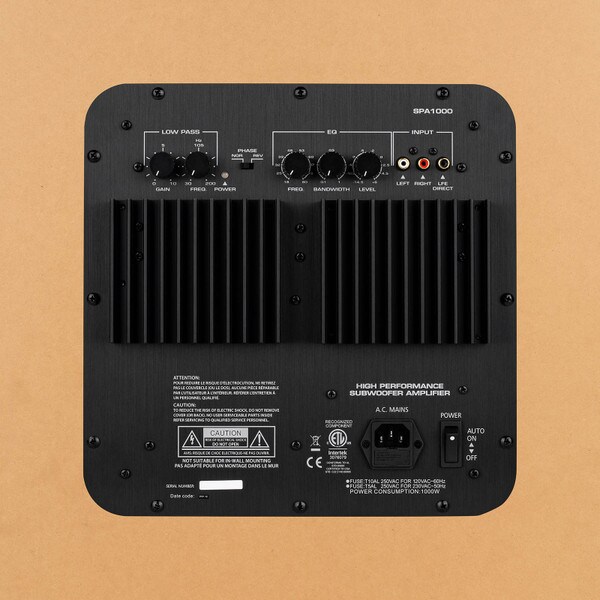

Dayton Audio SPA1000 Subwoofer Amplifier Specifications: • Power output: 950 watts RMS @ 4 ohms • Frequency Response: 20 to 200 Hz • SNR, A-Weighted: 98 dB • Total Harmonic Distortion: <1% • Inputs: 2x RCA Inputs, 1x LFE Direct Input • Power Requirements: 115 - 230 VAC.

Enclosure Specifications: • Panel thickness: 3/4" • Panel material: Medium Density Fiberboard (MDF) • Finished internal cabinet volume: 3.2 cubic feet • External dimensions: 19.25" H x 19.25" W x 20" D • Completed subwoofer weight: 72 lbs. • Made in the U.S.A.

Product Details

Part Number300-7171
UPC848864067285
Weight90

Product Specifications

Cabinet Dimensions (HxWxD)19.25" x 19.25" x 20"
Cabinet OptionsUnfinished/Unassembled
ColorNatural
ConfigurationSubwoofer
Input Rating1000
Speaker TypeSubwoofer
Woofer Diameter15"
