Peerless XT25SC40-04 1" Ring Radiator XT Tweeter 4 Ohm

Peerless by Tymphany
Part #264-1642

Peerless XT25SC40-04 1" Ring Radiator XT Tweeter 4 Ohm

Peerless by Tymphany
Part #264-1642
Model: XT25SC40-04
The Peerless XT25SC40-04 4 ohm 1" ring radiator tweeter employs an exclusive, patented ring radiator with phase plug configuration to produce extended, wide dispersion high frequency reproduction with incredibly low distortion. It is ready for custom mounting in waveguides, small enclosures, or custom car audio systems.
Key Features
  • Smooth, flat response all the way up to 20,000 Hz and beyond

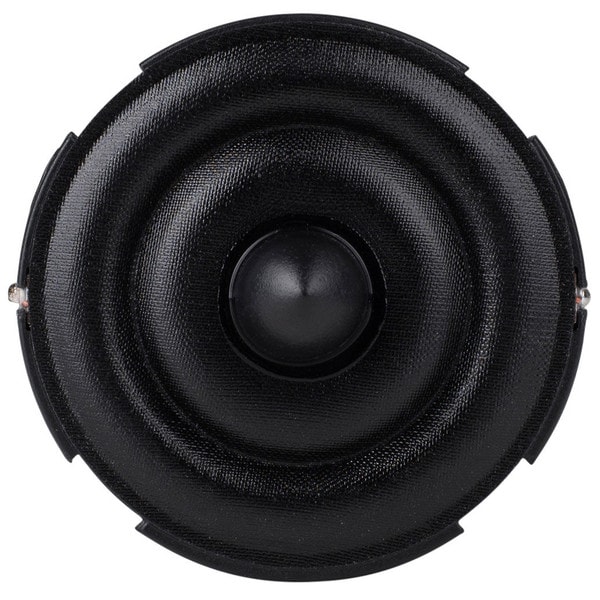

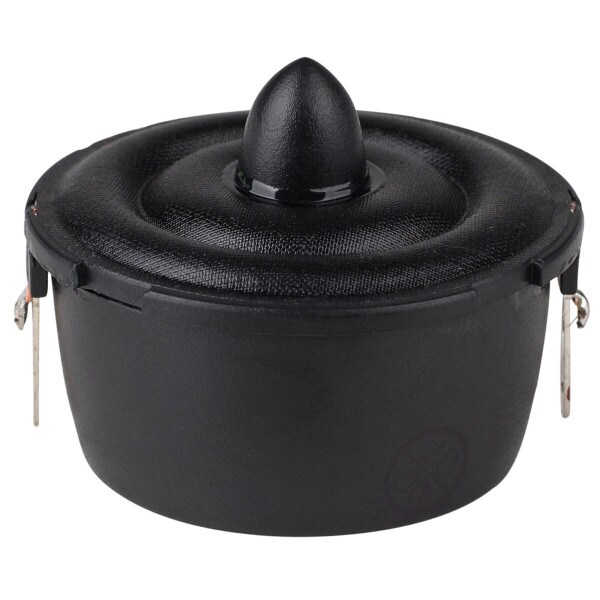

  • Centrally mounted phase plug reduces off axis anomalies
  • Soft dome for natural response with minimal peaks and dips (±2 dB 1,500 to 20,000 Hz)
  • Neodymium motor with heatsink allows high power handling
Your Price: $18.51
MSRP: $27.99
Save $9.48 (34%)
Bulk Pricing
Quantity:Qty: 1-3 $18.51/ea
Quantity:Qty: 4+$17.59/ea
Order in the next 3 hr 1 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless XT25SC40-04 1" Ring Radiator XT Tweeter 4 Ohm

This member of the XT tweeter family utilizes two patented Tymphany technologies to deliver exceptional sound quality: the ring radiator, and the central waveguide. The Peerless XT25SC40-04 features a 4 ohm 25 mm voice coil, mounted in a neodymium motor to keep the efficiency high on this extremely compact tweeter. The tweeter also features a rear chamber to enable extended low frequency response with remarkably low distortion. This tweeter as ready-made to be adapted to any compact faceplate, rear mount, or custom installation. In addition, the combination of small size, accurate frequency response, and 4-ohm impedance makes this tweeter also suitable for car audio systems.

Product Details

BrandPeerless by Tymphany
ModelXT25SC40-04
Part Number264-1642
UPC848864044972
Unit of MeasureEach
Weight0.15

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter1.73
Tweeter TypeSoft Dome
Power Handling (RMS)100 Watts
Impedance4Ω
Frequency Response2,500 to 20,000Hz
Sensitivity91.1dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1018Hz
DC Resistance (Re)3.22Ω
Voice Coil Inductance (Le)0.01mH
Mechanical Q (Qms)2.53
Electromagnetic Q (Qes)0.83
Total Q (Qts)0.63

Mounting Information

Overall Outside Diameter1.73"
Depth0.79"
