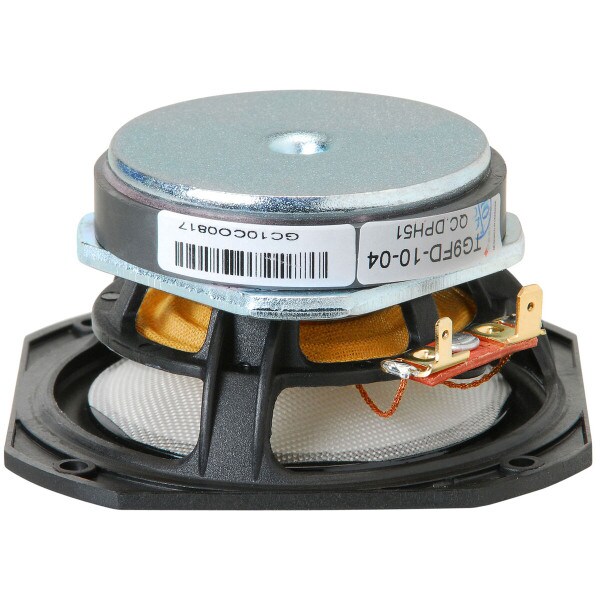

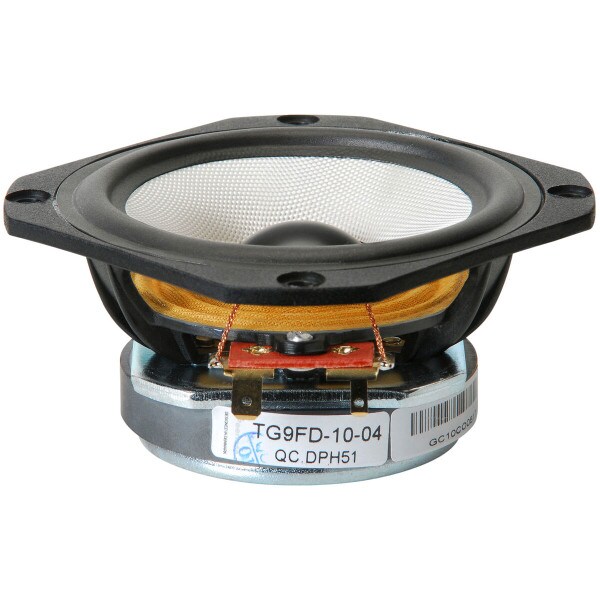

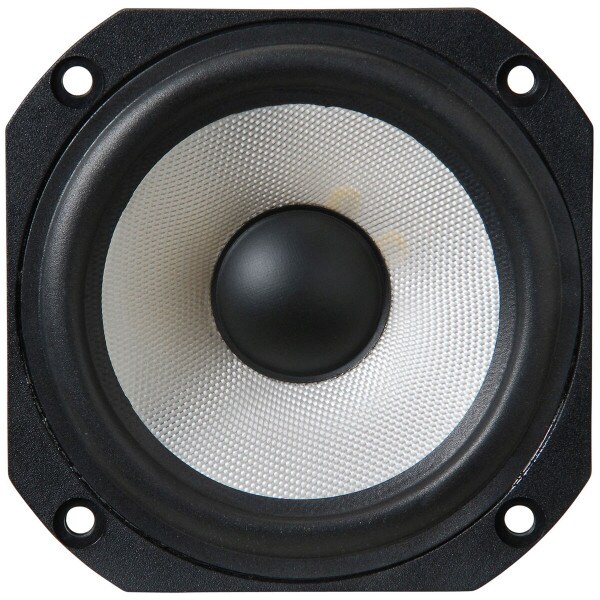

  • Peerless by Tymphany TG9FD-10-04 3-1/2" Glass Fiber Cone Full Range

Peerless by Tymphany TG9FD-10-04 3-1/2" Glass Fiber Cone Full Range

Peerless by Tymphany
Part #264-1064

Peerless by Tymphany TG9FD-10-04 3-1/2" Glass Fiber Cone Full Range

Peerless by Tymphany
Part #264-1064
Model: TG9FD10-04
The TC/TG Series from Tymphany offers a high performance full range and mid-bass solution for TV products and other compact applications.
Key Features
  • Polymer chassis
  • Patented NRSC fiberglass cone
  • 3/4" voice coil
  • Copper pole piece cap controls impedance
  • Frequency response extends past 15 kHz
Similar items that may interest you:
See all items in Midrange / Midbass Drivers & Full-Range Speakers
Your Price: $16.04
+ FREE SHIPPING
MSRP: $34.99
Save $18.95 (54%)
Bulk Pricing
Quantity:Qty: 2000+$16.04/ea

Out of Stock

Ships in 90-120 days, minimum order quantity 2,000 pcs.
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany TG9FD-10-04 3-1/2" Glass Fiber Cone Full Range

The TC/TG Series offers a high performance full range and mid-bass solution for TV products and other compact applications. The use of leading-edge technologies like a polymer chassis, NRSC (Tymphany patent) fiberglass cone, and a copper pole piece cap, have made this full range driver appear on many industry insider lists as the best sounding solution in this market.

Product Details

BrandPeerless by Tymphany
ModelTG9FD10-04
Part Number264-1064
UPC844632083938
Unit of MeasureEach
Weight0.65

Product Specifications

Nominal Diameter3-1/2"
Bolt Circle Diameter3.52
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance4Ω
Frequency Response110 to 10,000Hz
Sensitivity84dB 2.83V/1m
Voice Coil Diameter0.75"

Thiele-Small Parameters

Resonant Frequency (Fs)113Hz
DC Resistance (Re)3.2Ω
Voice Coil Inductance (Le)0.07mH
Mechanical Q (Qms)3
Electromagnetic Q (Qes)1.14
Total Q (Qts)0.83
Compliance Equivalent Volume (Vas)0.05ft³
Mechanical Compliance of Suspension (Cms)0.7mm/N
BL Product (BL)2.4T·m
Diaphragm Mass Inc. Airload (Mms)2.83g
Maximum Linear Excursion (Xmax)2.6mm
Surface Area of Cone (Sd)36.3cm²

Materials of Construction

Cone MaterialFiberglass
Surround MaterialRubber
Basket / Frame MaterialPolymer
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter3.30"
Baffle Cutout Diameter3.06"
Depth1.7"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.08ft³
Sealed F3118.8Hz
Vented Volume0.1ft³
Vented F379Hz
