Peerless by Tymphany NE180W-08 6-1/2" Fiber Cone Woofer Speaker

Peerless by Tymphany
Part #264-1134

Peerless by Tymphany NE180W-08 6-1/2" Fiber Cone Woofer Speaker

Peerless by Tymphany
Part #264-1134
Model: NE180W-08
Tymphany's NE180W-08 6-1/2" speaker is an advanced, well-engineered woofer and midbass driver designed for accurate audio reproduction.
Key Features
  • Cast aluminum frame promotes motor cooling
  • Sculpted design improves airflow and reduces reflections
  • High-strength compact neodymium magnet system
  • Proprietary coated natural wood fiber cone with half-roll rubber surround
  • Long-throw 1-1/2" voice coil on titanium former
  • Copper pole piece cap for extended HF response
  • 8 ohm nominal impedance
Similar items that may interest you:
See all items in Woofers
Your Price: $83.32
+ FREE SHIPPING
MSRP: $161.99
Save $78.67 (49%)
Bulk Pricing
Quantity:Qty: 500+$83.32/ea

Out of Stock

Ships in 90-120 days. Minimum order quantity 500 pcs.
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany NE180W-08 6-1/2" Fiber Cone Woofer Speaker

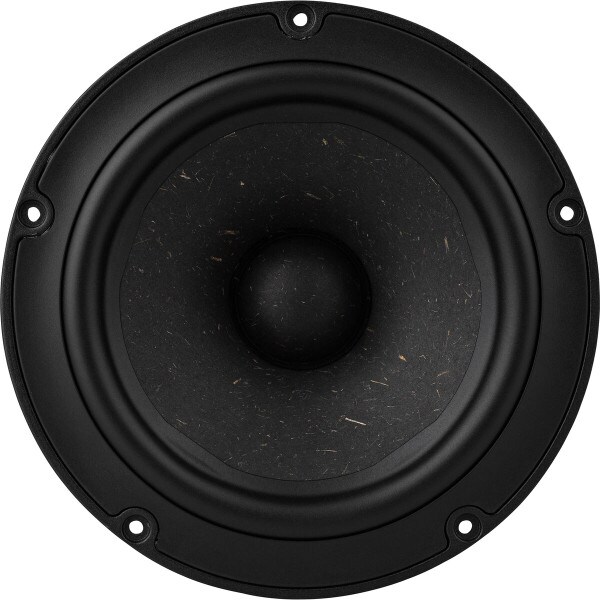

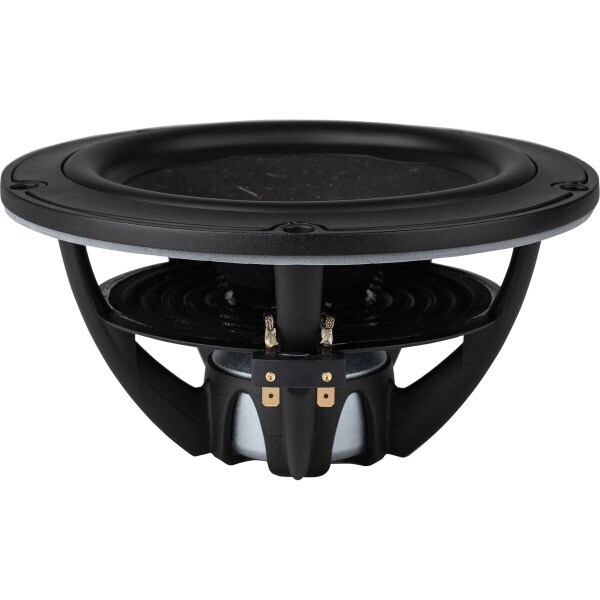

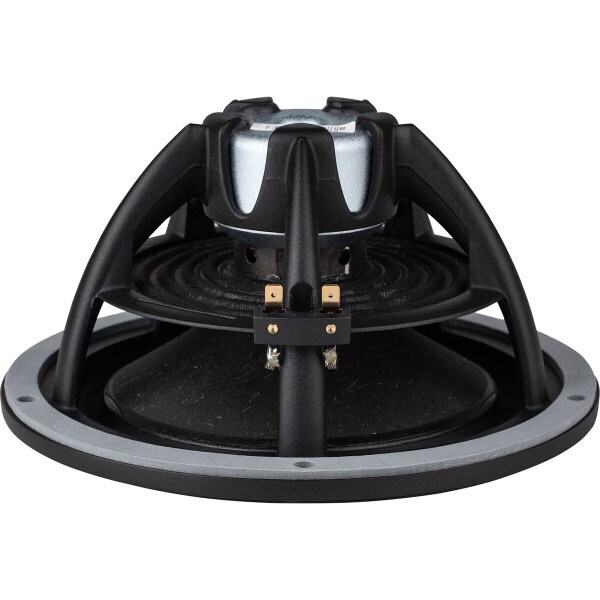

The Tymphany NE180W-08 6-1/2" Neodymium Woofer is characterized by the NE Series' cast aluminum basket; an innovative sculpted, open design that minimizes internal acoustic reflections and assists the neodymium motor's thermal management.

A coated natural wood fiber cone with a butyl rubber surround is FEA optimized for linearity of performance. Finite element analysis techniques also contribute to inclusion of the motor's copper cap, which reduces inductance and extends the speaker's upper frequency performance.

Product Details

BrandPeerless by Tymphany
ModelNE180W-08
Part Number264-1134
UPC844632092619
Unit of MeasureEach
Weight1.95

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)80 Watts
Power Handling (MAX)160 Watts
Impedance8Ω
Frequency Response40 to 4,000Hz
Sensitivity87.4dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)42Hz
DC Resistance (Re)6.2Ω
Voice Coil Inductance (Le)0.12mH
Mechanical Q (Qms)7.4
Electromagnetic Q (Qes)0.41
Total Q (Qts)0.39
Compliance Equivalent Volume (Vas)0.8ft³
Mechanical Compliance of Suspension (Cms)0.86mm/N
BL Product (BL)8.17T·m
Diaphragm Mass Inc. Airload (Mms)16.39g
Maximum Linear Excursion (Xmax)5mm
Surface Area of Cone (Sd)136.9cm²

Materials of Construction

Cone MaterialWood Fiber
Voice Coil FormerTitanium
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter7.09"
Baffle Cutout Diameter6.18"
Depth3.65"
# Mounting Holes5

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.3ft³
Sealed F385.2Hz
Vented Volume0.6ft³
Vented F346.5Hz
