Peerless by Tymphany H26TG06-06 1" Silk Dome Tweeter with Waveguide 6 Ohm

Peerless by Tymphany
Part #264-1384

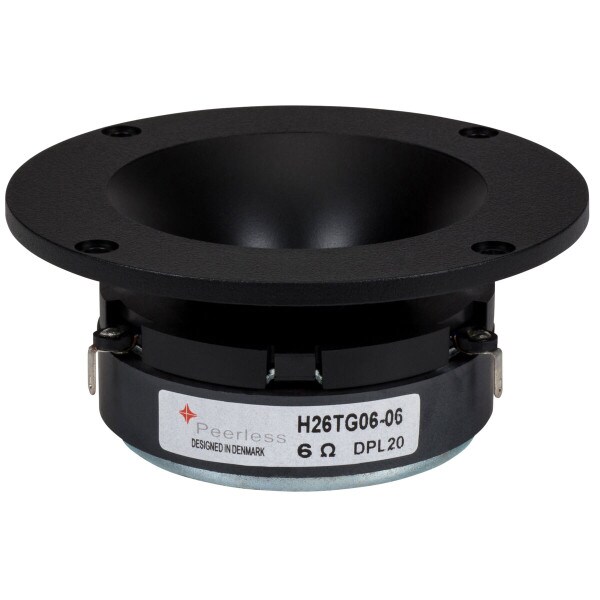

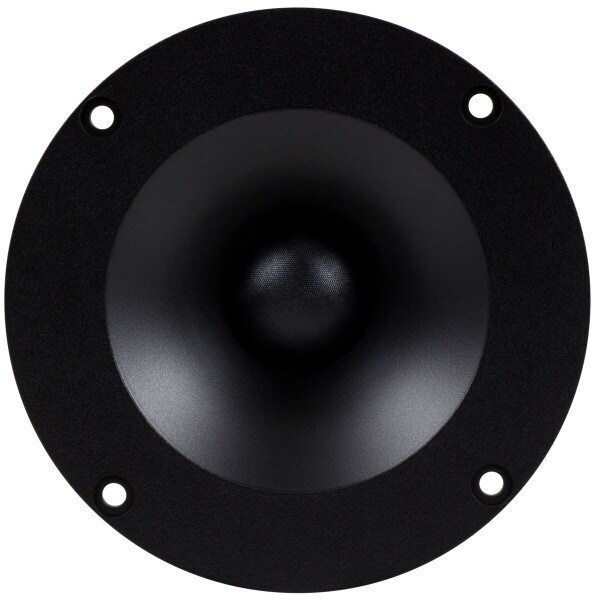

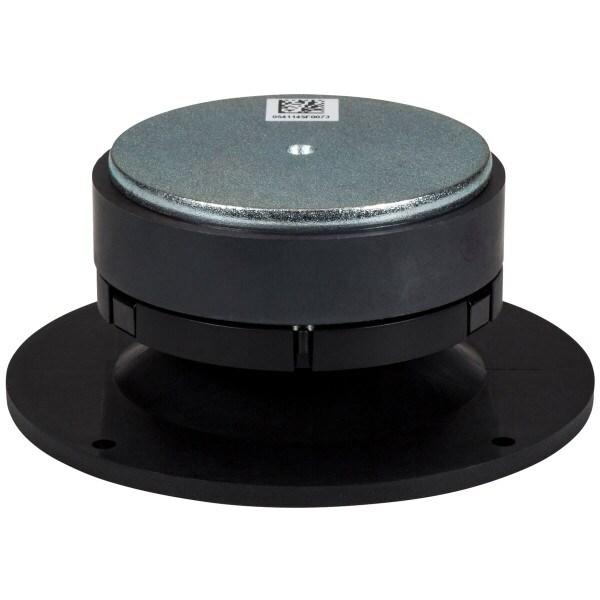

Peerless by Tymphany H26TG06-06 1" Silk Dome Tweeter with Waveguide 6 Ohm

Peerless by Tymphany
Part #264-1384
Model: H26TG06-06
The Tymphany H26TG06-06 horn loaded treated silk dome tweeter features smooth response from 2,500 to 20,000 Hz and high efficiency, making it an excellent choice for any high efficiency speaker system.
Key Features
  • Treated silk dome delivers natural music reproduction
  • Horn loaded design for increased sensitivity of 93.3 dB
  • Large, Ferrofluid-cooled motor improves power handling
Similar items that may interest you:
See all items in Tweeters
Your Price: $29.91
+ FREE SHIPPING
MSRP: $40.99
Save $11.08 (27%)
Bulk Pricing

Out of Stock

Ships in 90-120 days, minimum order quantity 1,000 pcs.
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany H26TG06-06 1" Silk Dome Tweeter with Waveguide 6 Ohm

Tymphany's H26TG06-06 features a treated silk dome and horn loaded faceplate, making it an efficient and natural sounding tweeter suitable for high efficiency speaker designs.

The robust motor on the H26TG06-06 is Ferrofluid cooled, which increases the power handling to 100 watts for extremely high output capabilities. With a treated silk dome this tweeter provides a natural, non-fatiguing sound. The thick faceplate with recessed screw holes makes it easy to flush mount, thereby minimizing diffraction issues.

Product Details

BrandPeerless by Tymphany
ModelH26TG06-06
Part Number264-1384
UPC848864017105
Unit of MeasureEach
Weight1.2

Product Specifications

Cone / Dome Diameter1"
Cutout Diameter3
Tweeter TypeSoft Dome
Power Handling (RMS)100 Watts
Impedance6Ω
Frequency Response2,500 to 20,000Hz
Sensitivity93.3dB 2.83V/1m

Thiele-Small Parameters

Resonant Frequency (Fs)1192Hz
DC Resistance (Re)4.7Ω
Voice Coil Inductance (Le)0.02mH
Mechanical Q (Qms)3.2
Electromagnetic Q (Qes)1.96
Total Q (Qts)1.21

Mounting Information

Overall Outside Diameter4"
Depth1.6"
