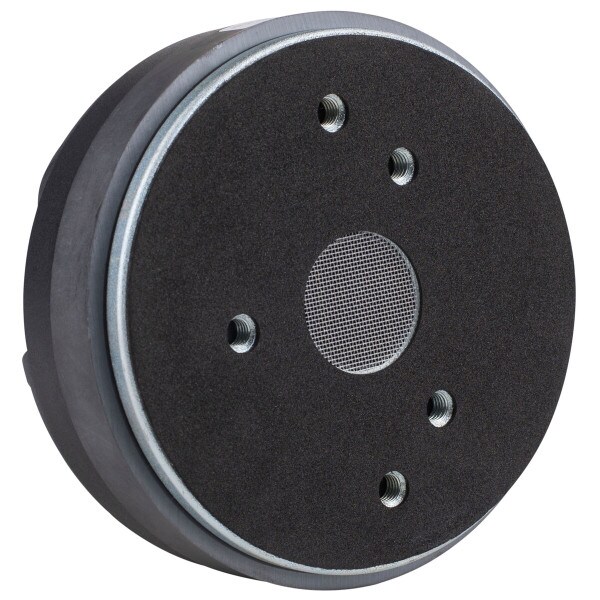

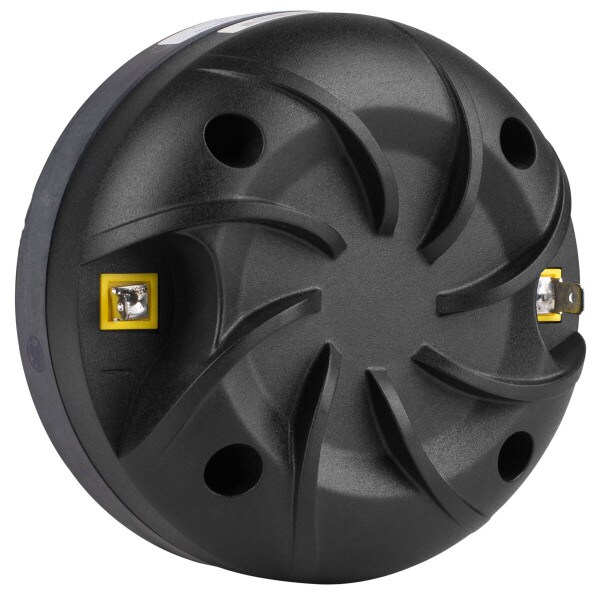

Peerless by Tymphany DFM-2544R00-08 1" Compression DFM Driver 8 Ohm

Peerless by Tymphany
Part #264-1466

Peerless by Tymphany DFM-2544R00-08 1" Compression DFM Driver 8 Ohm

Peerless by Tymphany
Part #264-1466
Model: DFM-2544R00-08
The Peerless DFM-2544R00-08 1" exit 8 ohm compression driver features a titanium diaphragm with a unique coating for minimal dome resonance. This driver will deliver natural, accurate high frequency response for wide-range audio performance.
Key Features
  • 1" throat with 2/3-bolt mount for use with many popular horns
  • Damped titanium diaphragm provides smooth and detailed response
  • Suitable for use with crossovers as low as 1,500 Hz
  • Ideal for use in high output 2-way and 3-way designs
Your Price: $87.08
MSRP: $94.99
Save $7.91 (8%)
Bulk Pricing
Quantity:Qty: 1-3 $87.08/ea
Quantity:Qty: 4+$83.36/ea

Back-Ordered

Estimated back in stock 5/23/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Peerless by Tymphany DFM-2544R00-08 1" Compression DFM Driver 8 Ohm

The Peerless DFM-2544R00-08 1" exit compression driver with 1-3/4" diaphragm is for use in high fidelity professional sound reinforcement systems. Peerless designed the magnet system for high sensitivity while keeping the weight and cost to a minimum. The 3-slot phasing plug and aluminum voice coil give improved HF response with minimal compression. The titanium diaphragm is coated with a light, thin layer of unique damping material that results in a smoother sound, especially when driven hard. All of the materials resist environmental factor of heat, vibration and aging ensuring many years of stable performance.

Specifications: • Power handling: 60 watts RMS/120 watts program (with recommended 1,500 Hz, 12 dB/octave crossover) • Fs: 784 • VCdia: 1.75" • Throat diameter: 1" • Impedance: 8 ohms • Frequency response: 1,500-20,000 Hz • SPL: 105.34 dB 2.83V/1m • Dimensions: Overall diameter: 4.5", Depth: 2.375".

Product Details

BrandPeerless by Tymphany
ModelDFM-2544R00-08
Part Number264-1466
UPC848864045016
Unit of MeasureEach
Weight4.2

Product Specifications

Diaphragm MaterialTitanium
Exit Diameter1"
Mounting Type2-Bolt/3-Bolt
Power Handling (RMS)60 Watts
Impedance8Ω
