NEW Peerless by Tymphany 830946 6-1/2" Paper Cone Woofer Speaker 4 Ohm

Peerless by Tymphany
Part #264-1148

NEW Peerless by Tymphany 830946 6-1/2" Paper Cone Woofer Speaker 4 Ohm

Peerless by Tymphany
Part #264-1148
Model: SLS-P830946
The Peerless SLS Series 830946 6-1/2" woofer is a versatile, solidly-performing choice for midbass, woofer, or subwoofer applications.
Key Features
  • Works great as a subwoofer in compact systems
  • Sculpted and vented stamped steel frame promotes motor cooling
  • Powerful ceramic magnet system with bumped back plate for full excursion
  • Coated paper cone with oversized half-roll rubber surround
  • Long-throw 1-1/2" voice coil
  • Aluminum shorting ring in magnetic gap reduces distortion
  • 4 ohm nominal impedance
Similar items that may interest you:
See all items in Woofers
NEW $56.00
MSRP: $78.99
Save $22.99 (29%)
Bulk Pricing
Quantity:Qty: 1-3 $56.00/ea
Quantity:Qty: 4+$53.21/ea

Out of Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

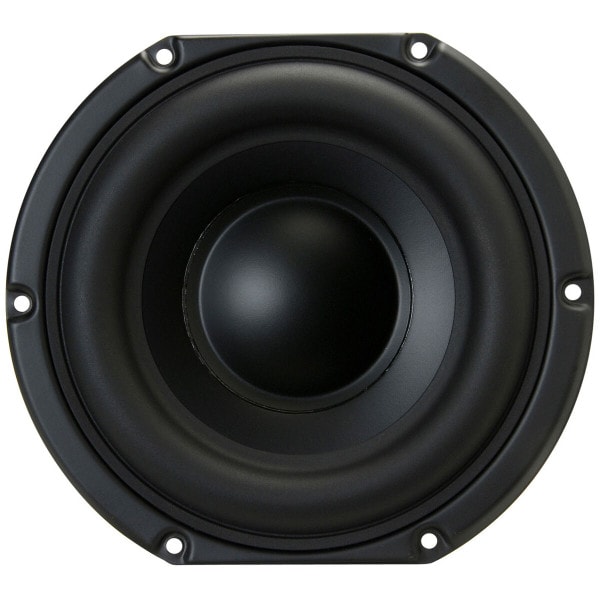

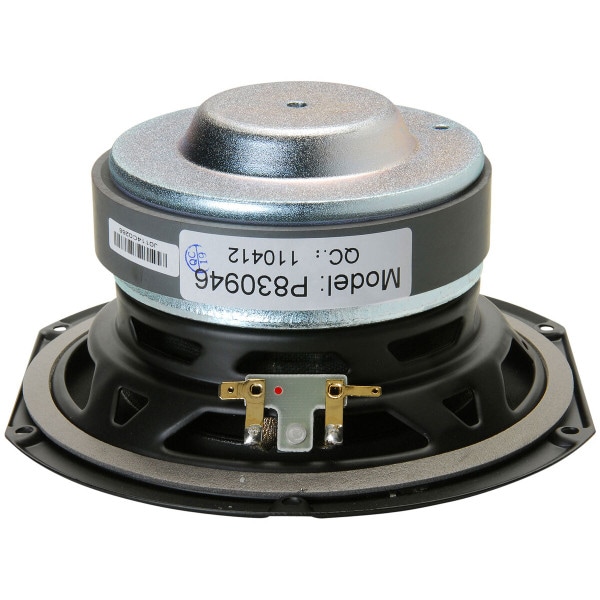

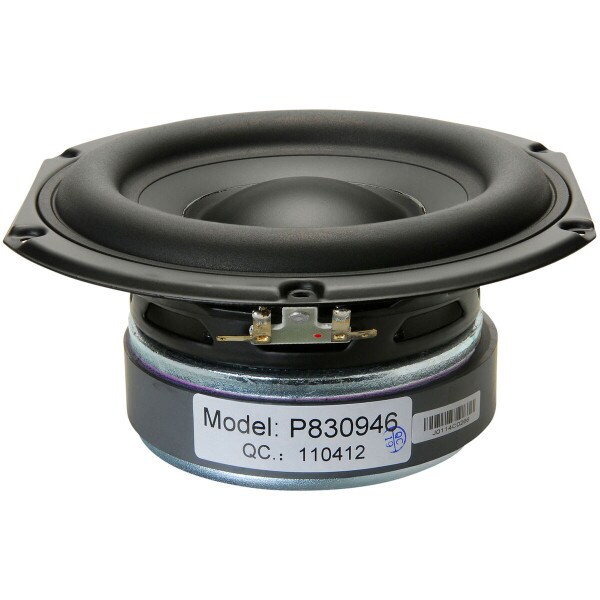

Peerless by Tymphany 830946 6-1/2" Paper Cone Woofer Speaker 4 Ohm

A new addition to the SLS Series of speakers, the Peerless 830946 6-1/2" woofer features a paper cone, wide rubber half-roll surround, and hefty ceramic ferrite magnet with distortion-reducing aluminum shorting ring. Audio is reproduced with accuracy and detail.

The speaker's distinctively sculpted truncated steel frame facilitates close driver spacing or a narrower mounting baffle, and its extensive under-spider venting promotes voice coil cooling for reduced power compression and improved long term reliability. The 830946 will perform superbly as a dedicated low-mid bass driver, as well as delivering solid output when used as a compact subwoofer.

Product Details

BrandPeerless by Tymphany
ModelSLS-P830946
Part Number264-1148
UPC844632092688
Unit of MeasureEach
Weight5.55

Product Specifications

Nominal Diameter6-1/2"
Bolt Circle Diameter6.67
Power Handling (RMS)75 Watts
Power Handling (MAX)150 Watts
Impedance4Ω
Frequency Response20 to 1,000Hz
Sensitivity82dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)42Hz
DC Resistance (Re)2.7Ω
Voice Coil Inductance (Le)0.65mH
Mechanical Q (Qms)4.92
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.35
Compliance Equivalent Volume (Vas)0.4ft³
Mechanical Compliance of Suspension (Cms)0.47mm/N
BL Product (BL)7.6T·m
Diaphragm Mass Inc. Airload (Mms)30.5g
Maximum Linear Excursion (Xmax)8.2mm
Surface Area of Cone (Sd)123.5cm²

Materials of Construction

Cone MaterialPaper
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter6.46 across flats, 7.165"
Baffle Cutout Diameter5.79"
Depth3.28"
# Mounting Holes6

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.21ft³
Sealed F398.3Hz
Vented Volume0.45ft³
Vented F341.9Hz
