NEW PRV Audio MT10W1200-NDY-4 Moto Series 10" Pro Low Frequency Woofer 4 Ohm

PRV Audio
Part #267-8042

NEW PRV Audio MT10W1200-NDY-4 Moto Series 10" Pro Low Frequency Woofer 4 Ohm

PRV Audio
Part #267-8042
Model: MT10W1200-NDY-4

Introducing the PRV MOTO Series, an innovative line of high-performance speakers engineered for the rigors of motorsports. Built with only the best components that are made to weather the great outdoors, the MOTO Series is here to upgrade your motorcycle, boat, ATV, side-by-side, and more. The MT10W1200-NDY-4 is engineered specially for the the tough environment of the open road, making it an excellent choice for a motorcycle saddlebag.

Key Features
  • A great fit for a saddlebag with a size of only about a cubic foot
  • Weather-resistant to survive getting caught in the rain
  • A vented neodymium motor will keep the voice coil cool
  • The 1.65" peak-to-peak excursion gives this woofer great efficiency
  • A powerful neodymium magnet structure creates distortion-canceling fixtures
  • 97 dB sensitivity means a potential for a high output
  • Designed specifically to take the abuse of a bike sound competition
NEW $299.91
+ FREE SHIPPING
MSRP: $412.39
Save $112.48 (27%)
Bulk Pricing
Order in the next 2 hr 28 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio MT10W1200-NDY-4 Moto Series 10" Pro Low Frequency Woofer 4 Ohm

The PRV MOTO Series

PRV Audio is excited to introduce their MOTO Series, a high-performance line designed specifically for motorsports installations. This series features the latest innovative materials and components, engineered to withstand weather conditions while delivering top-tier sound quality. These components set a new standard for high output in outdoor applications, making them perfect for upgrading the sound system in your motorcycle, boat, side-by-side, or ATV.

  • Optimized for compact enclosures, perfect for motorcycle saddlebags
  • Delivers high acoustical output with 1,200 watts RMS power

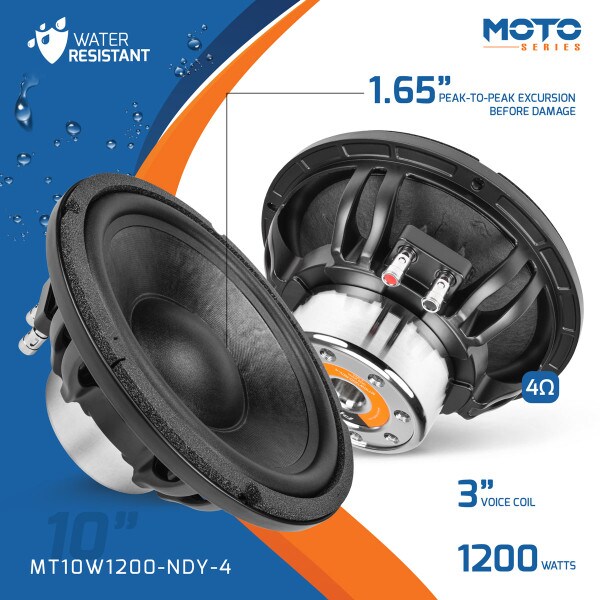

  • Rubber surround supports a generous 1.65″ peak-to-peak excursion
  • Strong neodymium magnet structure with distortion-canceling features
  • Fast transient response with deep lows and dynamic midbass
  • Weather-resistant paper cone and dust cap deliver true PRO audio midbass performance

The custom-tooled surround enables long throw and maximizes cone surface area, achieving superior fidelity and high efficiency.

Crafted with a special composite non-pressed paper cone, this speaker minimizes break-up and is treated for water resistance, providing a smooth frequency response and low moving mass. This design boosts speaker efficiency and allows for a robust 1.65″ peak-to-peak excursion without damage.

Extensive motor venting cools the voice coil, allowing for high power handling with minimal power compression. The large 3″ voice coil supports 1,200 watts of RMS power, backed by an advanced cooling system built into the motor.

Its powerful, optimized neodymium motor includes venting for enhanced voice coil cooling, while the neodymium magnet reduces speaker weight compared to a ferrite motor. This compact design fits perfectly and sounds exceptional in saddlebags with approximately 1 cubic foot of space.

Built to withstand the rigors of bike sound competitions, its 3″ voice coil is wound inside-outside on a fiberglass former, with an impressive 18 mm winding length for extended Xmax and reduced distortion.

With a high sensitivity rating of 97 dB 1W/1M, this speaker is capable of producing substantial output!

MT10W1200-NDY-4 Specifications

Explore the PRV MOTO Series

MT6MR400CF-NDY-4 SLIM 6.5" Carbon Fiber Neodymium Midrange Loudspeaker 4 Ohm

MT8MR400CF-NDY-4 SLIM 8" Carbon Fiber Neodymium Midrange Loudspeaker 4 Ohm

MT6MR600CF-NDY-2 6.5" Neodymium Midrange Loudspeaker 2 Ohm

MT6CX580-NDY-4 6.5" Coaxial Loudspeaker

MT8MR600-NDY-4 8" Neodymium Midrange Loudspeaker 4 Ohm

MT10W1200-NDY-4 10" Pro Low Frequency Woofer 4 Ohm

MT8SW800 D4 8" Shallow Subwoofer DVC 4x4 Ohm

MT10SW1000 D4 10" Shallow Subwoofer DVC 4x4 Ohm

MT2.2TWB-4 2.25" Short Horn Black Tweeter 4 Ohm

MT2.2TWC-4 2.25" Short Horn Chrome Tweeter 4 Ohm

MT2.7TWB-4 2.75" Short Horn Chrome Tweeter 4 Ohm

Product Details

BrandPRV Audio
ModelMT10W1200-NDY-4
Part Number267-8042
UPC810075521405
Unit of MeasureEach
Weight8.38

Product Specifications

Nominal Diameter10"
Power Handling (RMS)600 Watts
Power Handling (MAX)1200 Watts
Impedance4Ω
Frequency Response40 To 4,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)46.9Hz
DC Resistance (Re)3Ω
Voice Coil Inductance (Le)0.376mH
Mechanical Q (Qms)7.94
Electromagnetic Q (Qes)0.31
Total Q (Qts)0.3
Compliance Equivalent Volume (Vas)1.46ft³
Mechanical Compliance of Suspension (Cms)0.212mm/N
BL Product (BL)12.29T·m
Diaphragm Mass Inc. Airload (Mms)54.1g
Maximum Linear Excursion (Xmax)6.5mm
Surface Area of Cone (Sd)373cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialPaper
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

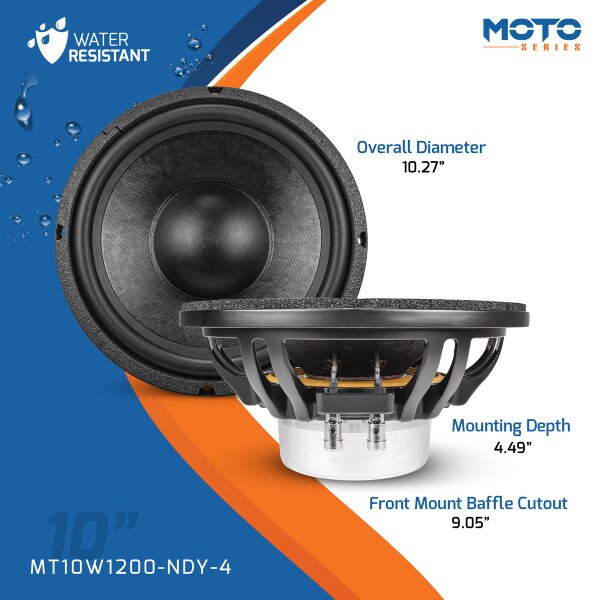

Overall Outside Diameter10.27"
Baffle Cutout Diameter9.05"
Depth5"
# Mounting Holes4
