NEW PRV Audio MDX Series MDX1200.4 2 Ohm 4 Channel Mini Amplifier 1200W

PRV Audio
Part #267-8078

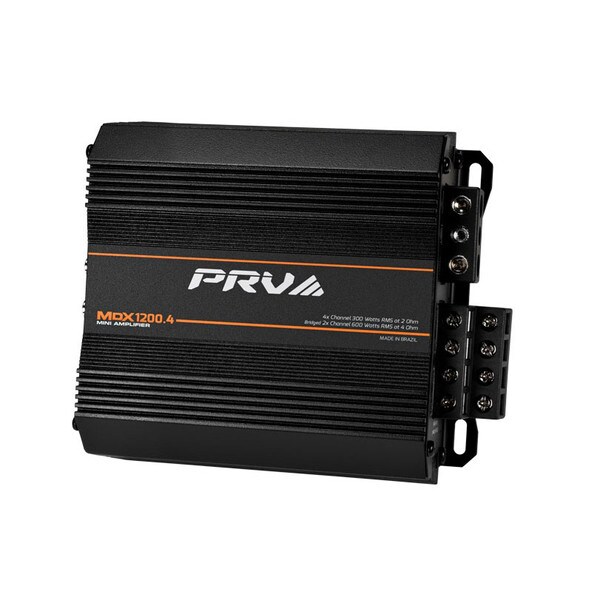

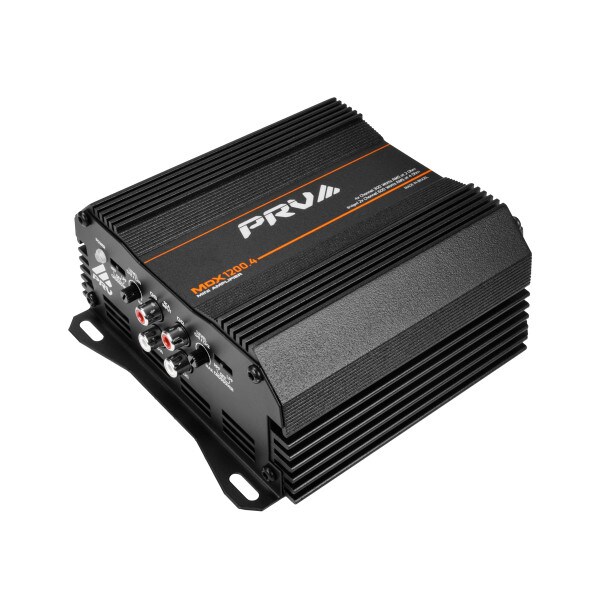

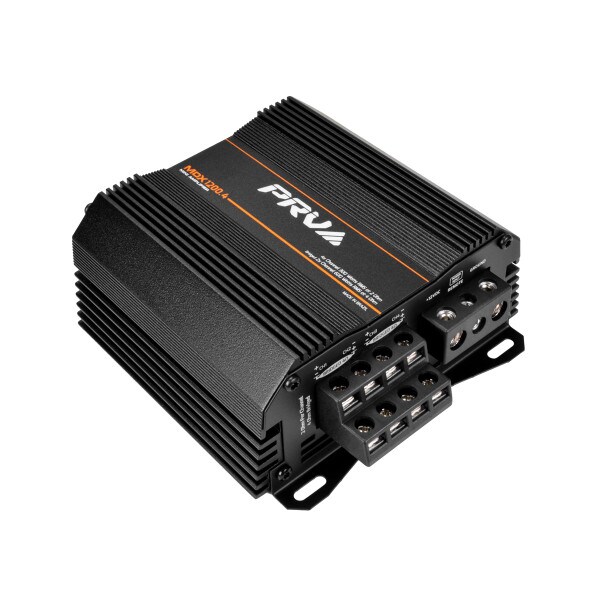

NEW PRV Audio MDX Series MDX1200.4 2 Ohm 4 Channel Mini Amplifier 1200W

PRV Audio
Part #267-8078
Model: MDX1200.4 2 OHM

Perfect for high-performance systems with limited space, the MDX Series incorporates exclusive patented technologies to deliver high-definition sound quality in a small yet reliable package. Built with motorsports in mind, this tiny yet powerful amplifier is an excellent choice for your motorcycle, ATV, or slingshot.

Key Features
  • Small but mighty to deliver results without taking up space
  • 82% average efficiency delivers on output without straining your electrical system
  • Built in heatsink and cooling fan to keep the amp cool under the most demanding conditions
  • Four channels to eliminate the need for multiple amplifiers
  • Configurable to a one, two, or four channel setup
  • Engineered to endure vibration and still deliver a peak performance
  • An excellent choice for motorcycles, ATVs, and slingshots
NEW $189.91
+ FREE SHIPPING
MSRP: $237.39
Save $47.48 (20%)
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio MDX Series MDX1200.4 2 Ohm 4 Channel Mini Amplifier 1200W

  • Compact and easy to install, this micro amplifier features a heavy-duty heatsink with a small footprint measuring 6.75″ W x 5.90″ L x 2.6″ H, ideal for vehicles, motorcycles, and 4-wheelers
  • Delivers 4 x 300 watts at 2 Ohm TRUE RMS, utilizing full-range Class D Brazilian technology to power multiple speakers with precision
  • Offers 2-channel bridged mode, doubling power output to 2 x 600 watts RMS at 4 Ohms for a more robust sound system
  • Built with advanced surface-mount technology for superior vibration resistance and top-notch sound quality
  • Designed for audio enthusiasts and competitors seeking a high-performance system in a compact and reliable package.

This amplifier’s high-power output and multichannel technology eliminate the need for multiple units, allowing flexible configurations in 4, 3, or 2 channels.

The MDX Series is perfect for motorsport applications like custom motorcycles, ATVs, and Slingshots, delivering robust performance.

Provides 300 watts at 2 Ohm per channel for powerful performance. Delivers a robust 600 watts at 4 Ohms in bridged mode for even greater output.

High output performance in a compact, space-saving design!

Equipped with a mini heavy-duty heatsink and built-in cooling fan to stay cool during intense playlists.

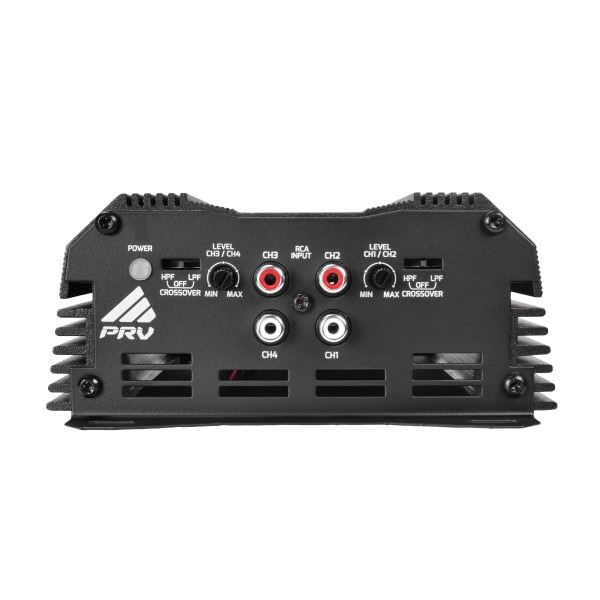

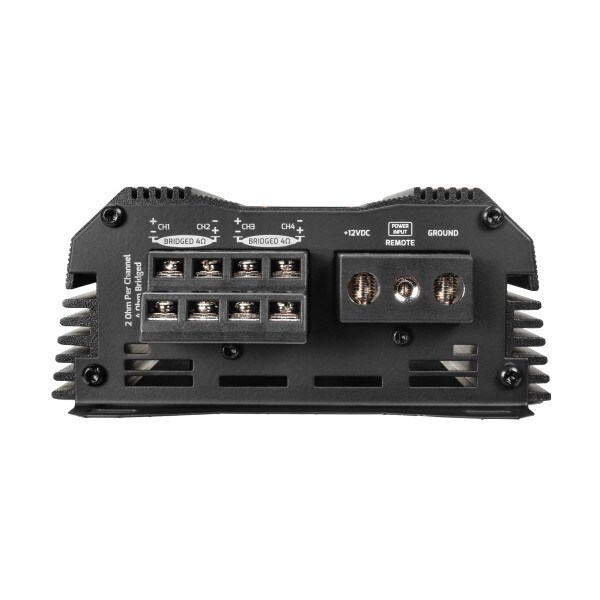

Features a built-in speaker wire converter and HIGH LEVEL INPUT for seamless integration with factory radios.

Weighing just 2.85 pounds, it offers an exceptional performance-to-weight ratio for custom systems.

Popular Installation configurations with this amplifier:

4 Channel Configuration for 8 Ohm Components

Its high-power output channels enable the installation of up to 4x 8 Ohm drivers or tweeters wired in parallel per channel, providing up to 75 watts of power to each component.

4 Channel Configuration for 4 Ohm components

Its high-power output channels enable the installation of up to 4x 4 Ohm drivers or tweeters wired in parallel per channel, providing up to 150 watts of power to each component.

2 Channel Configuration (Bridged) for 8 Ohm components

Its high-power output channels enable the installation of up to 2x 8 Ohm drivers or tweeters wired in parallel per channel, providing up to 300 watts of power to each component.

Before Installing

You must follow the instructions for the product’s installation to guarantee optimal performance. If you have any questions, get in touch with us. Before using the amplifier, always follow these guidelines:

  • Make sure the amplifier is switched off before adding or removing any connections. This prevents possible damage to equipment.
  • Keep all cables as far away as possible from the ignition cables, electronic injection modules and starter switch since they may cause noise interference; Minimum recommended installation distance between amplifier is 1.25”.
  • Always use OFC 4 AWG Copper wire for power and ground and minimum of 14 AWG speaker wire and good quality connectors. Copper-clad aluminum wire (CCAW) must not be used. This guarantees reliability and performance.
  • To avoid damaging the cables, make sure that they do not touch sharp metal edges. Important: For this amp use a 60A fuse 12 inches away from the battery as a safety precaution.

    The power rating data is based on equipment from the PRV Audio Group laboratory. Rated power tested with 60Hz to 1KHz sinusoidal signal and THD <= 1%, with resistant load referring to the indicated measurements. The electronic components and the manufacturing process can present manufacturing variations, thus leading to a variation in the measurements made. This amplifier is designed to perform on music applications ( with speakers ), any load test ( resistant load ) is not recommended.

Specifications

  • Impedance: 2 Ohm per Channel
  • Channels:4 Channel
  • Rated RMS Power at 14.0 V at 2 Ohm: 4x 300 Watts RMS
  • Rated RMS Power at 14.0 V at 2 Ohm: 4x 200 Watts RMS
  • Bridged Rated RMS Power at 14.0 V at 2 Ohm: 2x 600 Watts RMS
  • Average Efficiency: 82%
  • Operating Voltage: 8 to 16 Volts
  • Musical Current Draw: 60 A
  • Minimal Power Wire Input: (OFC) 4 Gauge wires
  • Built-in Crossover: Fixed HPF & LPF at 80 Hz
  • Minimal Speaker Wire Output: 12 Gauge
  • Frequency Response(-3dB): 10 – 20,000 Hz
  • Min. Input Sensitivity for Max. Output: 0.2 to 4v
  • Signal Input: RCA Cables
  • Signal to Noise: >90 dB
  • Protection System: High Temperature / Short circuit on Output
  • Heat Sink Type: Mini Heavy Duty Cast Aluminum
  • Dimensions ( Width x Depth x Height ): 6.75″ x 5.90″ x 2.60″
  • Weight 2.75 lbs.
