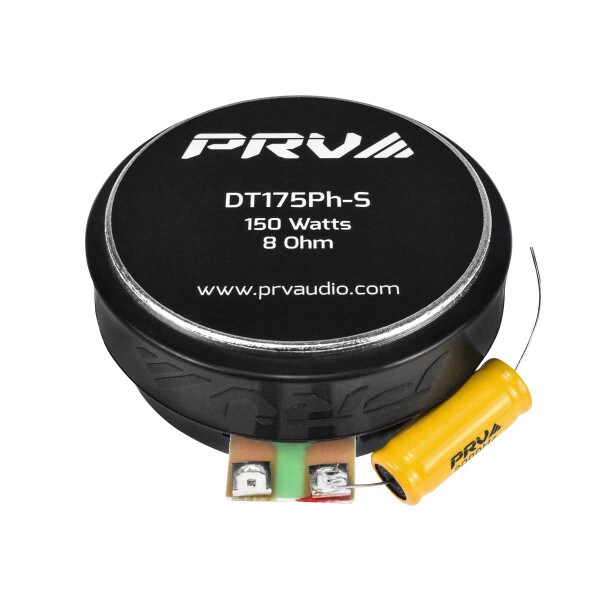

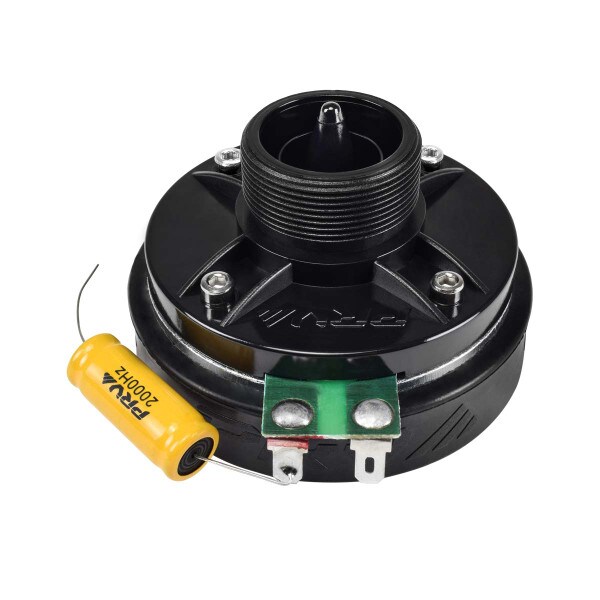

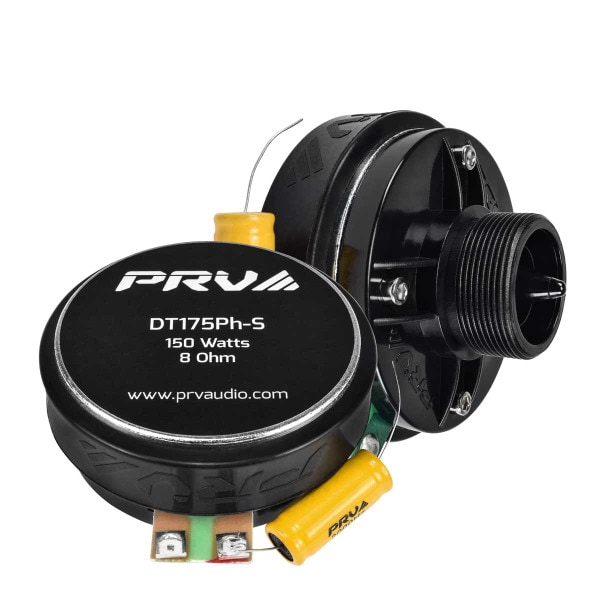

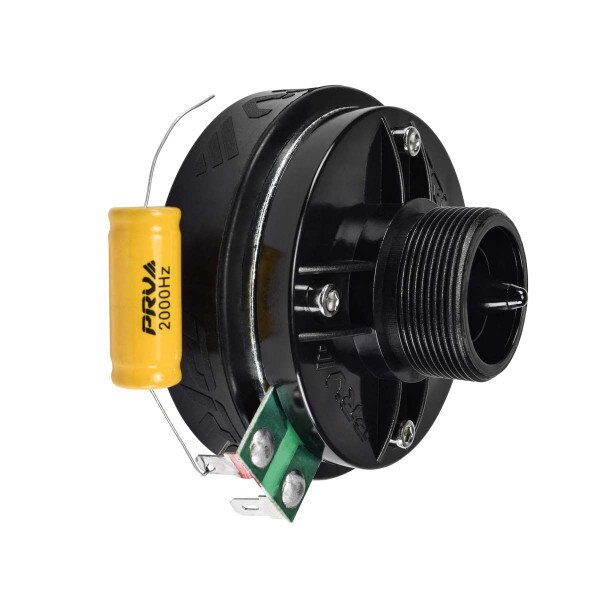

PRV Audio DT175Ph-S 1" Phenolic Horn Driver 8 Ohm 1-3/8"-18PRV Audio's DT175 1" phenolic compression driver offers smooth, natural, room-filling sound in a lightweight and affordable package that weighs-in at just under 1-1/2 pounds! The molded, standard 1-3/8"-18 TPI screw-on design allows the DT175 to be used as a replacement compression driver for many popular professional audio speaker cabinets, including stage, studio, and floor monitors.

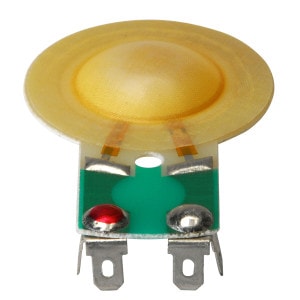

A 1" CCAW (copper-clad aluminum) voice coil is wound on a Kapton® former to keep the moving mass at a minimum for the highest possible output. With a sensitivity of 108 dB, and a frequency response of 1,500 to 20,000 Hz, the DT175 can keep up with nearly any driver on the market.
Specifications: • Power handling: 75 watts RMS with recommended crossover of 3 kHz, 12 dB/octave slope • VCdia: 1" • Impedance: 8 ohms • Frequency response: 1,300-19,000 Hz • SPL: 108 dB 1W/1m • Dimensions: 3.31" diameter x 1.6" depth (2.62" with threads) • Net weight: 1.73 lbs.
