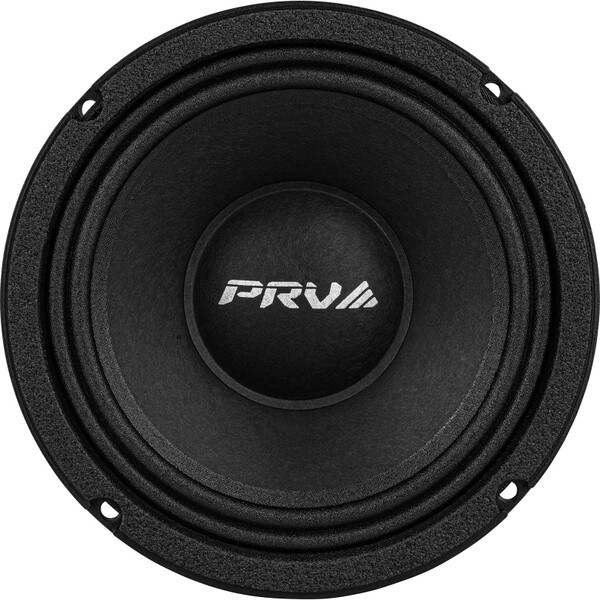

PRV Audio 6MR500-NDY-4 6-1/2" Neodymium Midrange Woofer 4 Ohm

PRV Audio
Part #294-2706

PRV Audio 6MR500-NDY-4 6-1/2" Neodymium Midrange Woofer 4 Ohm

PRV Audio
Part #294-2706
Model: 6MR500-NDY-4
Built for loud, clear vocal performance in tight, compact spaces, PRV Audio's 6MR500-NDY-4 neodymium-powered midrange features a sensitivity of 100 dB (2.83V/1m) and weighs about 3 pounds! 4 ohm impedance.
Key Features
  • Wide bandwidth that reaches out to 15 kHz and higher
  • Naturally damped response for reduced top-octave ringing
  • Low inductance for great transiets and inproved high frequence response
  • High EBP for horn-loaded enclosures
  • High 96 dB sensitivity means more sound per watt
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $129.91
+ FREE SHIPPING
MSRP: $162.39
Save $32.48 (20%)
Bulk Pricing
Ships next business day. Details

39In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 6MR500-NDY-4 6-1/2" Neodymium Midrange Woofer 4 Ohm

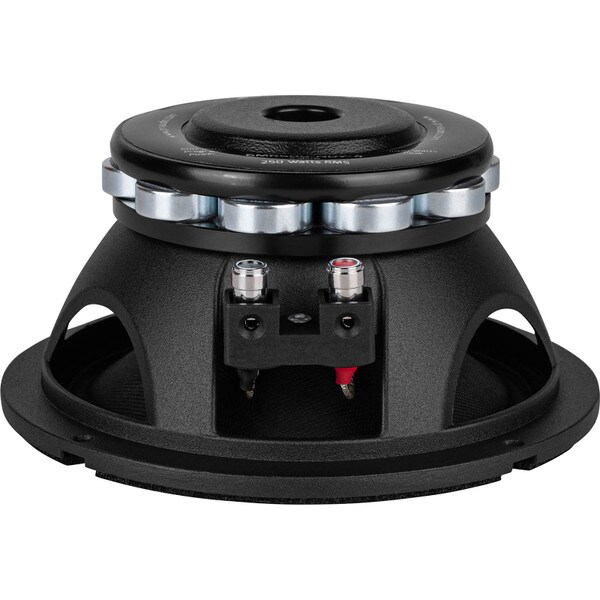

The 6MR500-NDY-4, from PRV Audio, is made to be a class-leading midrange woofer in the pro audio realm, as well as high output car and home audio, thanks to high-power neodymium radial slugs that immerse the voice coil in a strong magnetic field.

Not only does the unique motor design keep the mounting depth at less than 3" (great for car doors), it provides superior speaker control for reduced distortion. Additionally, the pole piece copper has a copper sleeve which lowers inductance thereby improving high frequency response. With a usable, extended frequency response from 104 to 12,500 Hz, this midwoofer also works great as a high output, full-range satellite speaker.

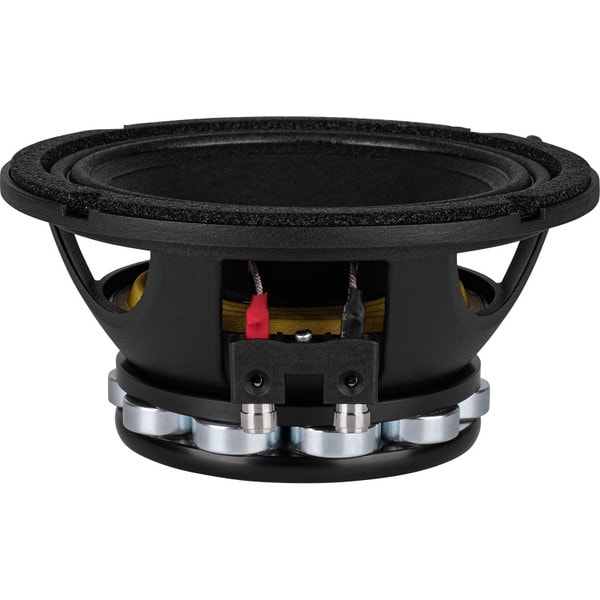

A bumped backplate, vented magnet system, vented pole piece, Kapton® former, open cast-aluminum frame, and treated-cloth surround allow for high power handling, while protecting this driver from extreme transient power peaks.

Product Details

BrandPRV Audio
Model6MR500-NDY-4
Part Number294-2706
UPC799928734370
Unit of MeasureEach
Weight3.65

Product Specifications

Nominal Diameter6-1/2"
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance4Ω
Frequency Response105 to 12,500Hz
Sensitivity96dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)99.8Hz
DC Resistance (Re)3.8Ω
Voice Coil Inductance (Le)0.05mH
Mechanical Q (Qms)23.1
Electromagnetic Q (Qes)0.47
Total Q (Qts)0.43
Compliance Equivalent Volume (Vas)0.18ft³
Mechanical Compliance of Suspension (Cms)0.18mm/N
BL Product (BL)8.77T·m
Diaphragm Mass Inc. Airload (Mms)14.14g
Maximum Linear Excursion (Xmax)4.42mm
Surface Area of Cone (Sd)143cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter6.43" across the flats, 7.08"
Baffle Cutout Diameter5.71"
Depth2.95"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.2ft³
Sealed F3190.4Hz
Vented Volume0.35ft³
Vented F383.2Hz
