PRV Audio 69MR500PhP-4 6" x 9" Midrange Loudspeaker 4 Ohm

PRV Audio
Part #294-2761

PRV Audio 69MR500PhP-4 6" x 9" Midrange Loudspeaker 4 Ohm

PRV Audio
Part #294-2761
Model: 69MR500PhP-4
The unique 69MR500-PHP-4 6" x 9" midrange from PRV Audio offers smooth midrange response and high efficiency. This midrange is perfect for high output 3-way systems.
Key Features

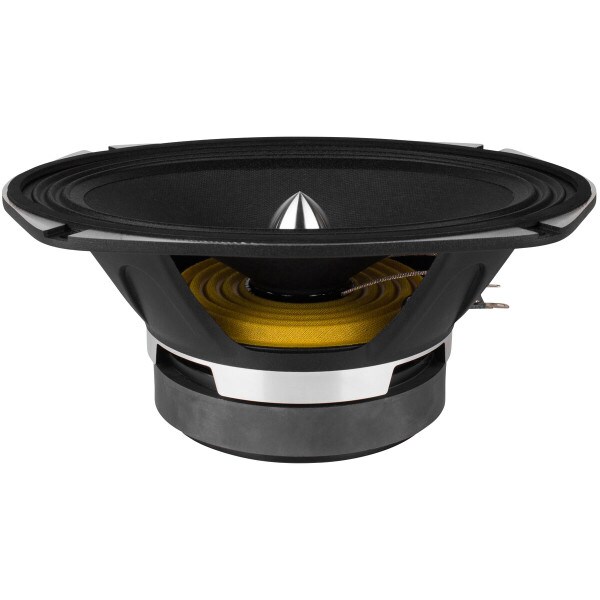

  • Cast aluminum frame provides a rigid support

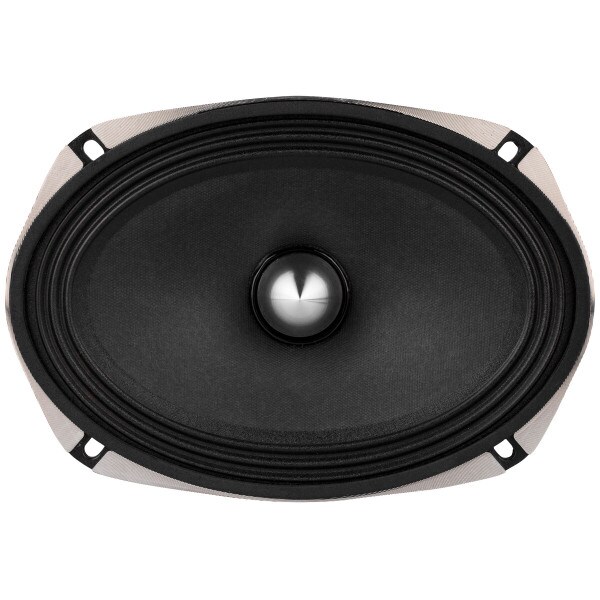

  • Aluminum phase plug improves off axis response
  • Includes 1,000 Hz high pass (6 dB/octave) for protection against low frequencies

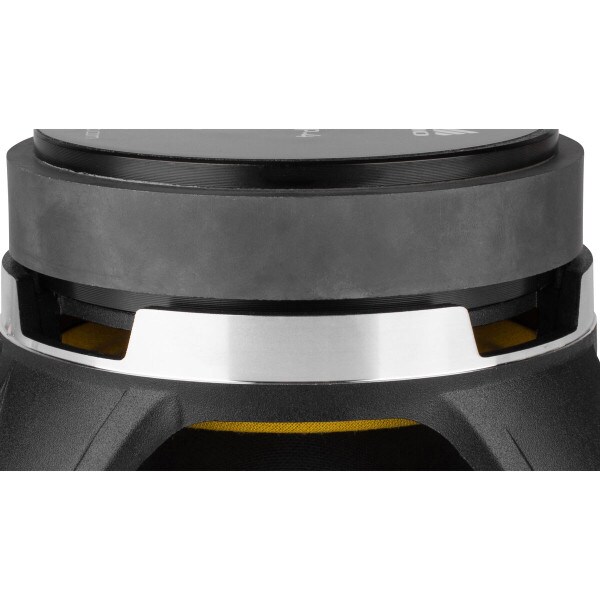

  • Extensive venting under the spider for minimal power compression
Similar items that may interest you:
See all items in Pro Woofers, Subwoofers & Midrange Speakers
Your Price: $69.91
MSRP: $87.39
Save $17.48 (20%)
Bulk Pricing
Order in the next 5 hr 38 min to ship today. Details

37In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 69MR500PhP-4 6" x 9" Midrange Loudspeaker 4 Ohm

PRV Audio's 69MR500-PHP-4 midrange loudspeaker offers outstanding durability and a smooth midrange response through 12 kHz. It is a great option for three way systems requiring additional midrange support.

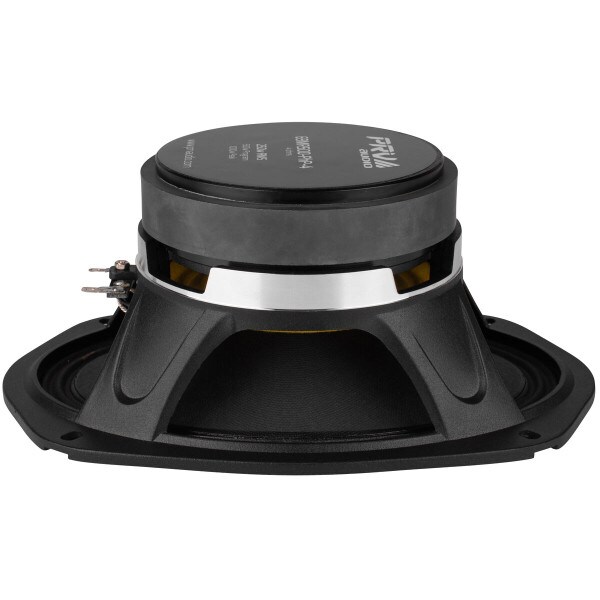

A high-power ceramic magnet is attached to a sturdy, reinforced cast aluminum frame to ensure a solid support structure for long lasting play in most any environment, while the phase plug provides incredibly smooth high frequency response on and off axis. This driver includes a 1 kHz high-pass filter to ensure the best possible fidelity while protecting the driver in high power car audio installations. In addition, this also makes an excellent driver for use as a midrange in a high output pro sound systems, the oval shape has almost the same cone area as an 8" while allowing for closer center-to-center spacing.

Product Details

BrandPRV Audio
Model69MR500PhP-4
Part Number294-2761
UPC799928734998
Unit of MeasureEach
Weight6.05

Product Specifications

Nominal Diameter6 x 9"
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance4Ω
Frequency Response500 to 12,000Hz
Sensitivity97dB 2.83V/1m
Voice Coil Diameter1.5"

Thiele-Small Parameters

Resonant Frequency (Fs)91.74Hz
DC Resistance (Re)3.7Ω
Voice Coil Inductance (Le)0.14mH
Mechanical Q (Qms)14.2
Electromagnetic Q (Qes)0.68
Total Q (Qts)0.65
Compliance Equivalent Volume (Vas)0.54ft³
Mechanical Compliance of Suspension (Cms)0.204mm/N
BL Product (BL)6.8T·m
Diaphragm Mass Inc. Airload (Mms)14.76g
Maximum Linear Excursion (Xmax)2.87mm
Surface Area of Cone (Sd)231cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter9.25" x 6.38"
Baffle Cutout Diameter8.7" x 5.78"
Depth3.86"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.63ft³
Sealed F3114.5Hz
Vented Volume0.88ft³
Vented F374.3Hz
