  • PRV Audio 10MB800FT 10" Professional Midbass Driver 8 Ohm

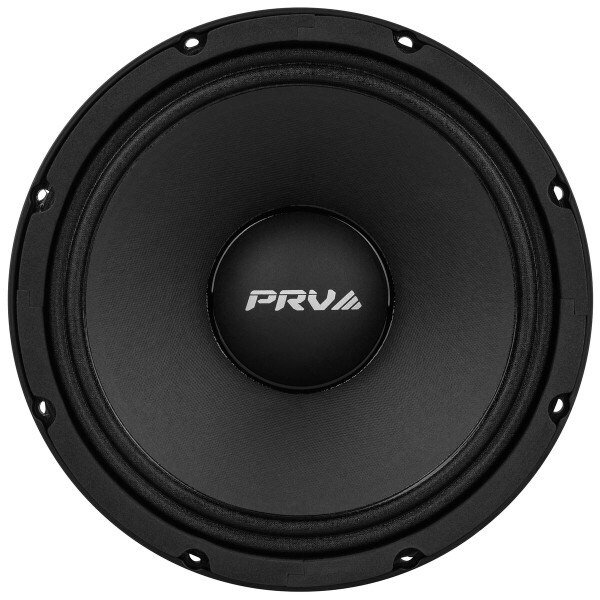

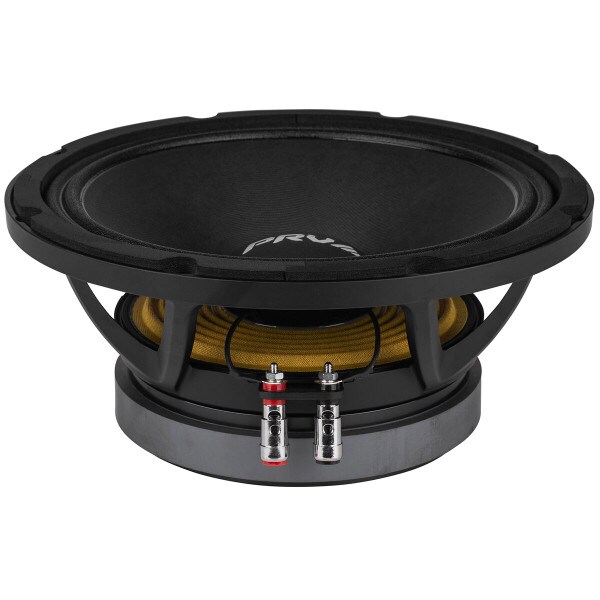

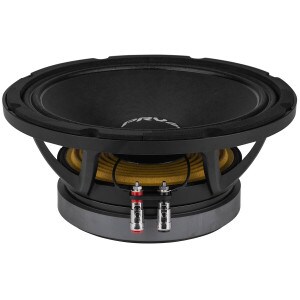

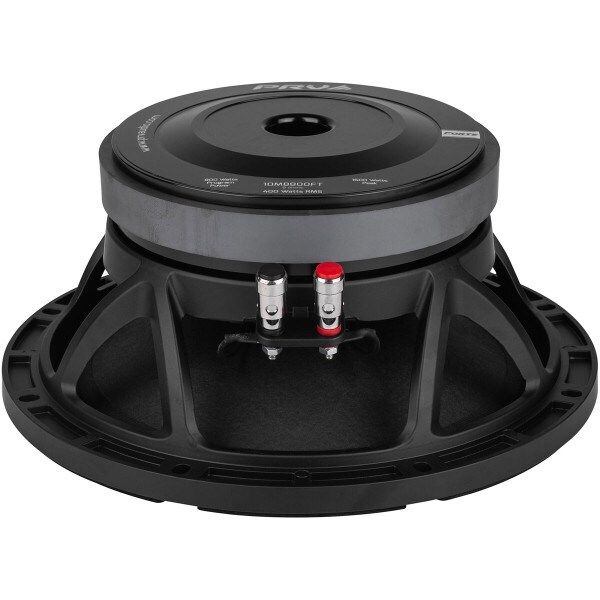

PRV Audio 10MB800FT 10" Professional Midbass Driver 8 Ohm

PRV Audio
Part #294-2988

PRV Audio 10MB800FT 10" Professional Midbass Driver 8 Ohm

PRV Audio
Part #294-2988
Model: 10MB800FT
The 10MB800FT midbass from PRV Audio's Forte Series offers outstanding durability with high output. This driver will deliver a powerful midbass punch with smooth response through the vocal range making it great for high-power two or three-way systems.
Key Features
  • Cast aluminum frame with extensive venting
  • Inside-outside voice coil
  • Treated paper cone provides natural response
  • Under spider and pole piece vents keeps power compression to a minimum
Your Price: $119.91
+ FREE SHIPPING
MSRP: $149.89
Save $29.98 (20%)
Bulk Pricing
Ships next business day. Details

8In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

PRV Audio 10MB800FT 10" Professional Midbass Driver 8 Ohm

PRV's 10MB800FT is a rugged 10" mid bass that combines mid bass punch and mid range clarity at remarkable output levels with low distortion and an extended bass response. Optimized for use in compact enclosures, this mid bass speaker provides smooth vocal response with great output from 650 Hz to 1500 Hz and useful response up to 6,500 Hz, making it a great choice for larger 2 and 3 way systems.

This 10" is a great mid bass option for pro audio systems or high SPL automotive systems, where extremely high output is required.

Product Details

BrandPRV Audio
Model10MB800FT
Part Number294-2988
UPC602938022057
Unit of MeasureEach
Weight12.35

Product Specifications

Nominal Diameter10"
Power Handling (RMS)400 Watts
Power Handling (MAX)800 Watts
Impedance8Ω
Frequency Response65 to 6,500Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter2.5"

Thiele-Small Parameters

Resonant Frequency (Fs)64.72Hz
DC Resistance (Re)5.1Ω
Voice Coil Inductance (Le)0.4mH
Mechanical Q (Qms)15.39
Electromagnetic Q (Qes)0.33
Total Q (Qts)0.32
Compliance Equivalent Volume (Vas)1.29ft³
Mechanical Compliance of Suspension (Cms)0.182mm/N
BL Product (BL)14.39T·m
Diaphragm Mass Inc. Airload (Mms)33.2g
Maximum Linear Excursion (Xmax)3.5mm
Surface Area of Cone (Sd)380cm²

Materials of Construction

Cone MaterialPaper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter10.23"
Baffle Cutout Diameter9.01"
Depth4.09"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.5ft³
Sealed F3165Hz
Vented Volume1.25ft³
Vented F366.8Hz
