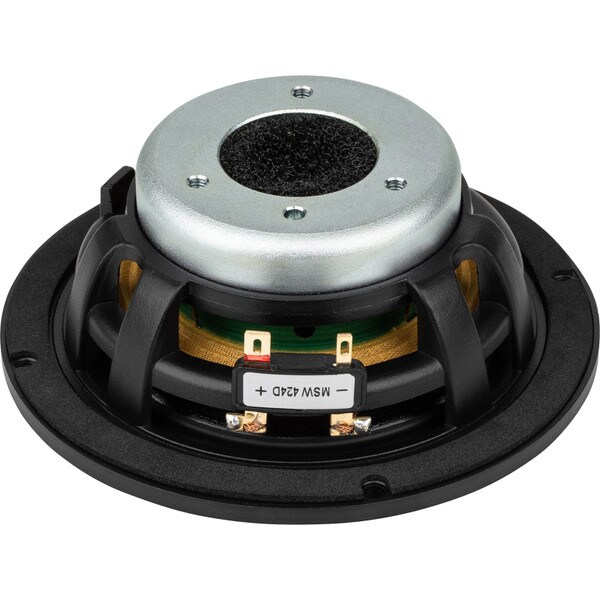

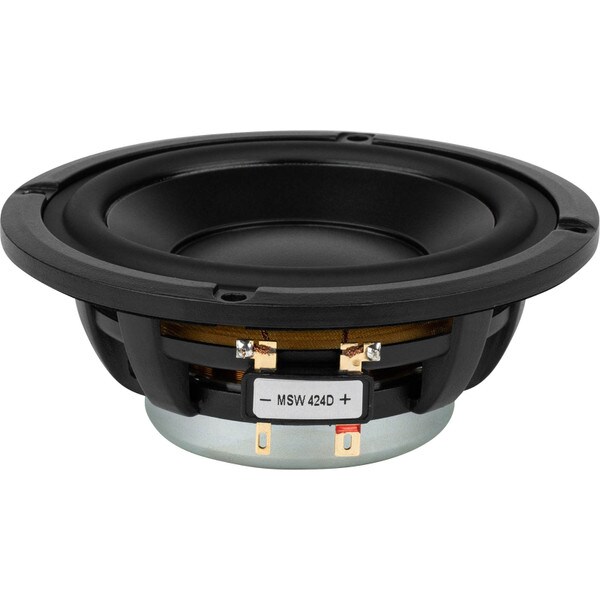

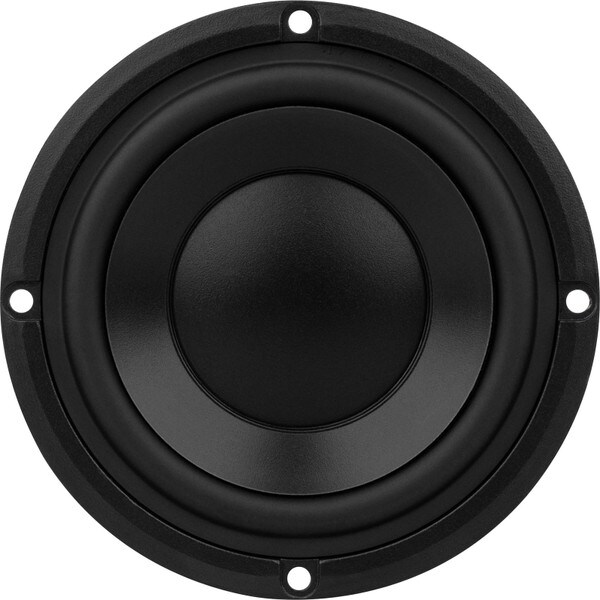

Morel MSW 424D Shallow Classic Series 4" DPC Cone Woofer/Midrange 4 Ohms

Morel
Part #297-002

Morel MSW 424D Shallow Classic Series 4" DPC Cone Woofer/Midrange 4 Ohms

Morel
Part #297-002
Model: MSW 424D
The Morel MSW 424D 4" woofer delivers all the quality and performance you have come to expect from Morel's Classic Series with less mounting depth. At only 1.8" deep, this driver will provide excellent sound in the shallowest installations.
Key Features
  • Huge 2.1" Hexatech™ aluminum voice coil delivers precise control
  • Shallow profile Damped Polymer Cone for smooth on and off axis response
  • Extensive frame, coil, and motor venting lowers compression and distortion
  • 1.8" mounting depth for use in the shallowest enclosures
Your Price: $118.00
+ FREE SHIPPING
Bulk Pricing
Order in the next 6 hr 33 min to ship today. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Morel MSW 424D Shallow Classic Series 4" DPC Cone Woofer/Midrange 4 Ohms

With the emphasis today on smaller speaker designs, Morel has re-engineered the Classic Series woofers to minimize depth without sacrificing their sonic characteristics. At only 1.8" deep, MSW 424D 4" has been optimized for use in the smallest enclosures. With a shallow profile Damped Polymer Cone this driver will provide smooth response both on and off axis for natural, room filling response. The huge 2.1" Hexatech™ voice coil has extensive venting in the former, frame, and magnet to ensure high power handling and low power compression. The MSW 424D is the perfect woofer for use in extremely compact 2-way speaker designs.

Product Details

BrandMorel
ModelMSW 424D
Part Number297-002
UPC848864043586
Unit of MeasureEach
Weight0.9

Product Specifications

Nominal Diameter4"
Power Handling (RMS)150 Watts
Power Handling (MAX)800 Watts
Impedance4Ω
Frequency Response50 to 6,000Hz
Sensitivity87.5dB 2.83V/1m
Voice Coil Diameter2.13"

Thiele-Small Parameters

Resonant Frequency (Fs)60Hz
DC Resistance (Re)3.1Ω
Voice Coil Inductance (Le)0.25mH
Mechanical Q (Qms)2.05
Electromagnetic Q (Qes)0.38
Total Q (Qts)0.32
Compliance Equivalent Volume (Vas)0.16ft³
Mechanical Compliance of Suspension (Cms)1.056mm/N
Diaphragm Mass Inc. Airload (Mms)6.5g
Maximum Linear Excursion (Xmax)4mm

Materials of Construction

Cone MaterialPoly Composite
Surround MaterialRubber
Voice Coil Wire MaterialAluminum
Voice Coil FormerAluminum
Basket / Frame MaterialSteel
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter4.65"
Baffle Cutout Diameter3.65"
Depth1.32"
# Mounting Holes4

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.06ft³
Sealed F3157.3Hz
Vented Volume0.16ft³
Vented F369.4Hz
