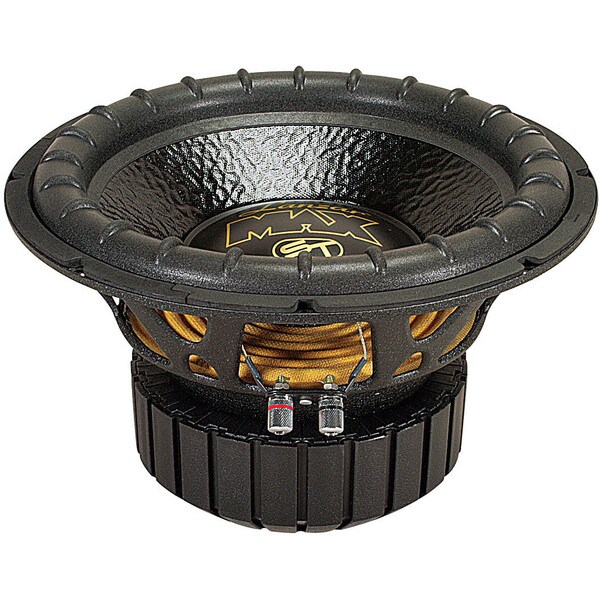

Lanzar MAX12 12" Subwoofer 4 Ohm

Lanzar
Part #293-483

Lanzar MAX12 12" Subwoofer 4 Ohm

Lanzar
Part #293-483
Model: MAX12
One of the oldest and most respected names in automotive sound is also one of the most consistent winners on the competition circuit.
Key Features
  • Black textured finish steel basket
  • Black non-pressed paper cone
  • Oversize reinforced foam surround
  • Rubber magnet boot
  • 4-layer 4 ohm voice coil
  • Stacked magnets for more power and longer excursion
Similar items that may interest you:
Your Price: $68.98
MSRP: $139.99
Save $71.01 (51%)
Bulk Pricing

Back-Ordered

Estimated back in stock 7/26/2024
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details

Overview

Lanzar MAX12 12" Subwoofer 4 Ohm

One of the oldest and most respected names in automotive sound is also one of the most consistent winners on the competition circuit. Lanzar offers a wide range of high performance subwoofers, from the pounding OptiDrive Series to the rugged MAX Series. The MAX12 single-coil subwoofer offers high power handling, great bass response, and an economical price.

Product Details

BrandLanzar
ModelMAX12
Part Number293-483
UPC068888710749
Unit of MeasureEach
Weight15.5

Product Specifications

Nominal Diameter12"
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance
Frequency Response30 to 600Hz
Sensitivity91.9dB 2.83V/1m
Voice Coil Diameter2"

Thiele-Small Parameters

Resonant Frequency (Fs)35Hz
Total Q (Qts)0.36
Compliance Equivalent Volume (Vas)3.46ft³
Maximum Linear Excursion (Xmax)10mm

Materials of Construction

Cone MaterialPaper
Surround MaterialRubber
Voice Coil FormerKapton® / Polyimide
Basket / Frame MaterialSteel
Magnet MaterialFerrite

Mounting Information

Overall Outside Diameter12.13"
Baffle Cutout Diameter10.83"
Depth7.64"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Sealed Volume0.9ft³
Sealed F377.4Hz
Vented Volume2.5ft³
Vented F336.5Hz
