LaVoce WAN123.00 12" Neodymium Woofer 8 Ohm

11 Questions, 22 Answers or
LaVoce
Part #293-719

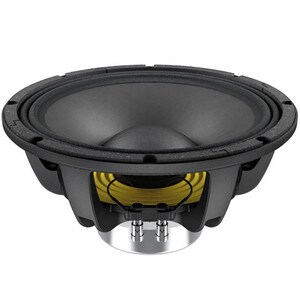

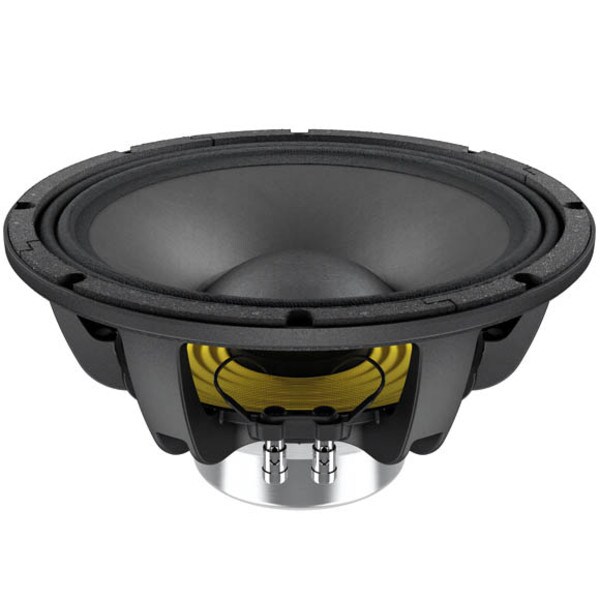

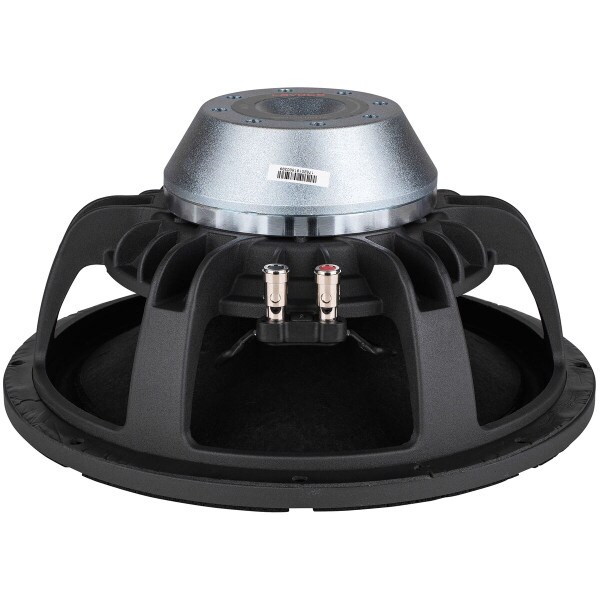

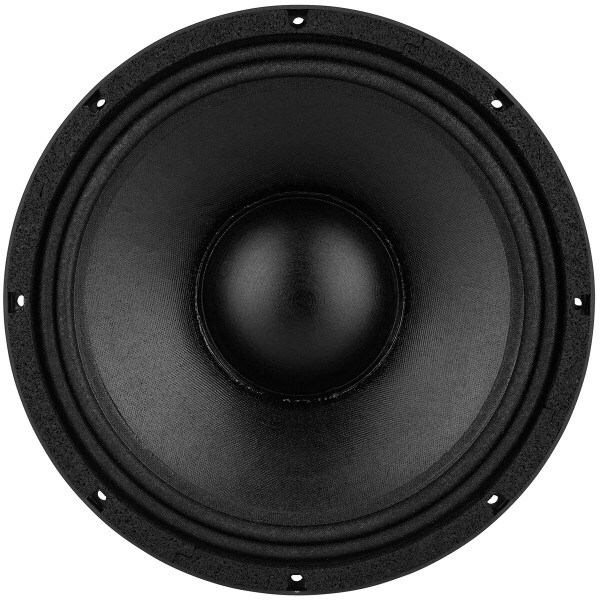

LaVoce WAN123.00 12" Neodymium Woofer 8 Ohm

LaVoce
Part #293-719
Model: WAN123.00
11 Questions, 22 Answers or
The LaVoce WAN123.00 is an impressive 12" woofer that features a rigid aluminum basket which provides exceptional cooling. The excellent 99 dB sensitivity is perfect for mating to other high-efficiency drivers.
Key Features
  • FEM optimized Neodymium motor and suspensions
  • Optimized cooling system for reliable performance
  • Impressive 99 dB sensitivity
  • Resonance-free, heavy-duty aluminum basket demonstrates excellent build quality
Your Price: $215.00
+ FREE SHIPPING
MSRP: $320.90
Save $105.90 (33%)
Bulk Pricing
Ships next business day. Details

6In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

LaVoce WAN123.00 12" Neodymium Woofer 8 Ohm

The LaVoce WAN123.00 is an impressive 12" woofer that features a solid cast aluminum basket which provides exceptional cooling. The excellent 99 dB sensitivity is perfect for mating to other high-efficiency drivers. The gasket on this driver allows it to be rear mounted easily, providing additional installation flexibility. To add to the versatility of this driver, the cone has been treated to be waterproof, making it ideal for outdoor cabinets.

Product Details

BrandLavoce
ModelWAN123.00
Part Number293-719
UPC848864057415
Unit of MeasureEach
Weight14.95

Product Specifications

Nominal Diameter12"
Bolt Circle Diameter11.73
Power Handling (RMS)500 Watts
Power Handling (MAX)1000 Watts
Impedance8Ω
Frequency Response50 to 3,000Hz
Sensitivity99dB 2.83V/1m
Voice Coil Diameter3"

Thiele-Small Parameters

Resonant Frequency (Fs)48Hz
DC Resistance (Re)4.8Ω
Voice Coil Inductance (Le)0.7mH
Mechanical Q (Qms)6.2
Electromagnetic Q (Qes)0.28
Total Q (Qts)0.26
Compliance Equivalent Volume (Vas)2.58ft³
Mechanical Compliance of Suspension (Cms)0.17mm/N
BL Product (BL)17.8T·m
Diaphragm Mass Inc. Airload (Mms)61g
Maximum Linear Excursion (Xmax)7mm
Surface Area of Cone (Sd)531cm²

Materials of Construction

Cone MaterialTreated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCCA
Voice Coil FormerFiberglass
Basket / Frame MaterialCast Aluminum
Magnet MaterialNeodymium

Mounting Information

Overall Outside Diameter12.40"
Baffle Cutout Diameter11.19"
Depth6.08"
# Mounting Holes8

Parts Express Staff Recommended Enclosure Volume

Vented Volume1.5ft³
Vented F351.8Hz
