Speaker L-Pad Attenuator 50W Mono 3/8" Shaft 16 Ohm

Parts Express
Part #260-254

Speaker L-Pad Attenuator 50W Mono 3/8" Shaft 16 Ohm

Parts Express
Part #260-254
L-pads adjust the relative volume of drivers connected to them by placing added resistance in series and parallel, keeping impedance a constant 16 ohm load. This L-pad is rated at 50 watts RMS, is designed to be used with 16 ohm loads, features a 3/8" shaft length, and comes with mounting hardware, faceplate, and knob.
Key Features
  • Easy level adjustment without changing impedance
  • Great for speaker design tweaking
  • Maintains 16 ohm impedance
  • Mounting hardware included
Similar items that may interest you:
See all items in Speaker L-pads
Your Price: $15.98
MSRP: $16.99
Save $1.01 (6%)
Bulk Pricing
Quantity:Qty: 1-9 $15.98/ea
Quantity:Qty: 10+$14.98/ea

Back-Ordered

Estimated back in stock 7/6/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Speaker L-Pad Attenuator 50W Mono 3/8" Shaft 16 Ohm

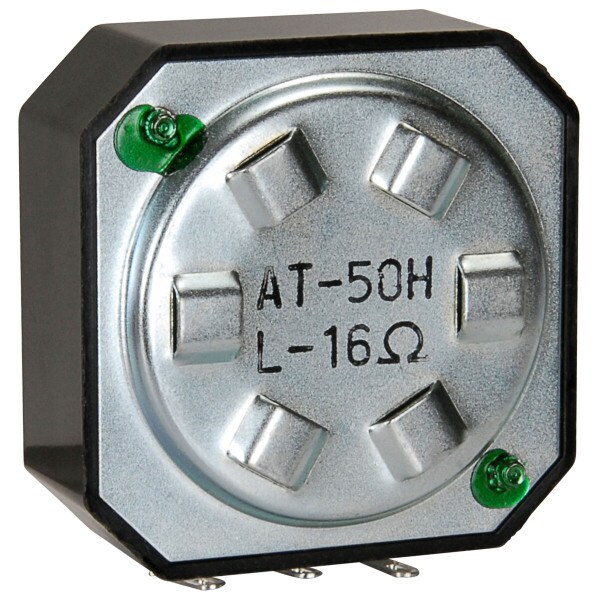

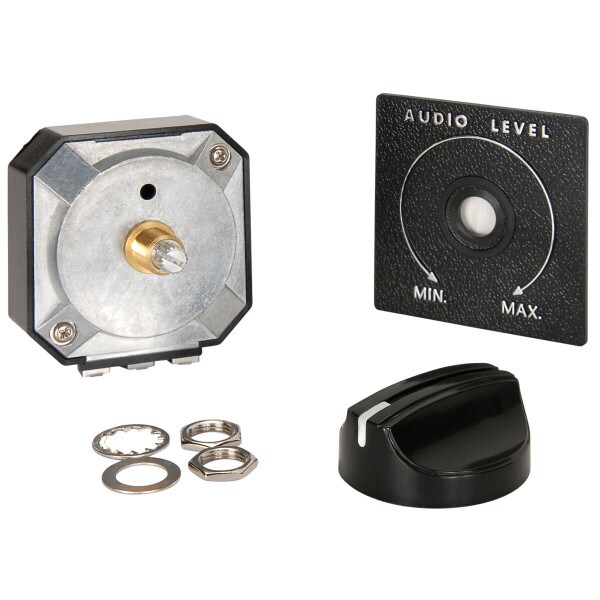

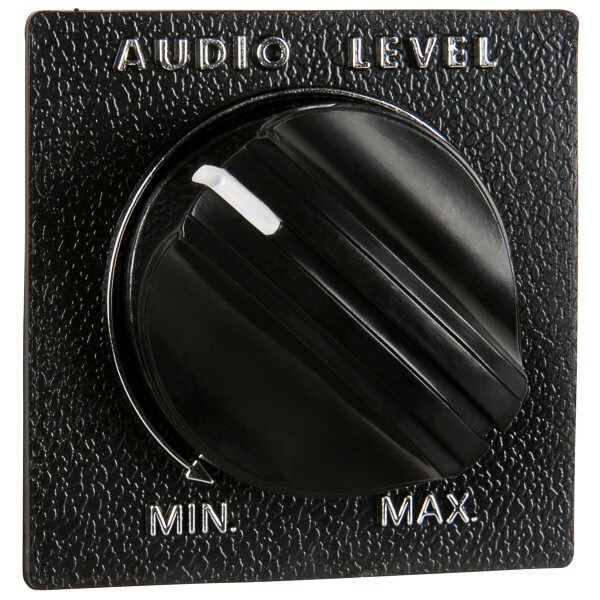

L-pads adjust the relative volume of drivers connected to them by placing added resistance in series. At the same time, a counter-resistance is placed in parallel with the driver to maintain a constant impedance which allows the original crossover design to be used. L-pads are to be placed in between the amplifier and speaker, or in between the crossover and driver. This particular L-pad is rated at 50 watts RMS, is designed to be used with 16 ohm loads, features a 3/8" shaft length, and comes with mounting hardware, faceplate, and control knob. Body measures 2" square, and control knob face plate assembly requires a 2" hole in cabinet.

L-Pad Instruction Diagram

Product Details

BrandParts Express
Part Number260-254
UPC844632018473
Unit of MeasureEach
Weight0.2
