  • Parts Express Speaker L-Pad Attenuator 100W Mono 3/8" Shaft 8 Ohm

Parts Express Speaker L-Pad Attenuator 100W Mono 3/8" Shaft 8 Ohm

Parts Express
Part #260-262

Parts Express Speaker L-Pad Attenuator 100W Mono 3/8" Shaft 8 Ohm

Parts Express
Part #260-262
L-pads adjust the relative volume of drivers connected to them by placing added resistance in series and parallel, keeping impedance a constant 8 ohm load. This L-pad is rated at 100 watts RMS, is designed to be used with 8 ohm loads, features a 3/8" shaft length, and comes with mounting hardware.
Key Features
  • Easy level adjustment without changing impedance
  • Great for speaker design tweaking
  • Maintains 8 ohm impedance
  • Mounting hardware included
Your Price: $15.98
MSRP: $19.99
Save $4.01 (20%)
Bulk Pricing
Quantity:Qty: 1-9 $15.98/ea
Quantity:Qty: 10+$14.38/ea
Ships next business day. Details

766In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Parts Express Speaker L-Pad Attenuator 100W Mono 3/8" Shaft 8 Ohm

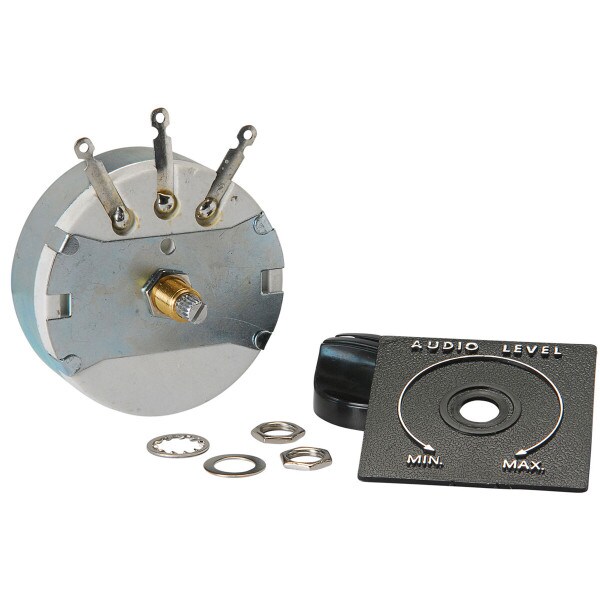

L-pads adjust the relative volume of drivers connected to them by placing added resistance in series. At the same time, a counter-resistance is placed in parallel with the driver to maintain a constant impedance which allows the original crossover design to be used. L-pads are to be placed in between the amplifier and speaker, or in between the crossover and driver. This particular L-pad is rated at 100 watts RMS, is designed to be used with 8 ohm loads, features a 3/8" shaft length, and comes with mounting hardware, faceplate, and volume control knob.

Dimensions: 2-1/2" diameter, 1" depth.

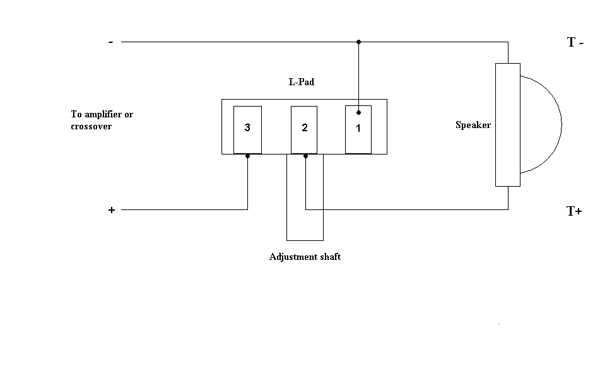

L-Pad Instruction Diagram

Product Details

BrandParts Express
Part Number260-262
UPC844632017858
Unit of MeasureEach
Weight0.27
