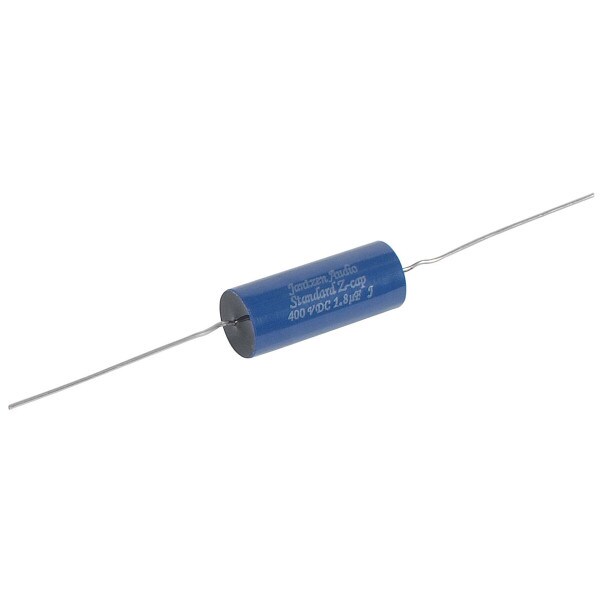

Jantzen Audio 1.8uF 400V Standard Z-Cap Crossover Capacitor

Jantzen Audio
Part #027-264

Jantzen Audio 1.8uF 400V Standard Z-Cap Crossover Capacitor

Jantzen Audio
Part #027-264
Model: 001-0416
Jantzen Audio Standard Series capacitors are constructed of metallized polypropylene, especially manufactured for audio application. The materials used are carefully chosen for the best sonic performance. Finally, an affordable state-of-the-art capacitor!
Key Features
  • Dimensions: 12mm x 31mm
  • A high quality entry level audiophile-grade capacitor
  • Rated Voltage: 400 VDC / 250 VAC
  • Tin plated oxygen free copper leads
  • A tolerance of ±5% (on nominal value)
Your Price: $3.42
MSRP: $4.99
Save $1.57 (31%)
Bulk Pricing
Quantity:Qty: 1-9 $3.42/ea
Quantity:Qty: 10+$2.85/ea
Order in the next 8 hr 17 min to ship today. Details

33In Stock

Free Shipping available on orders over $99.00 in the US. Details

Overview

Jantzen Audio 1.8uF 400V Standard Z-Cap Crossover Capacitor

Product Features

  • Dimensions: (Ø 12mm - L: 31mm)
  • The Standard-Z Cap is our entry level audiophile capacitor.
  • It is a single foil standard type MKP capacitor that uses the highest possible quality aluminum based metalized PP foil.
  • It uses the same foil as our Superior- and Silver Z-caps, but in this application as a single foil capacitor.
  • The Superior – and Silver Z-caps are double foil (“Super MKP”) constructions where two capacitors are essentially wound into to one housing.

  • A capacitor that offers great sound and performance within its class.
  • Fast reacting, smooth and detailed in sound, compared to other single foil PP capacitors.
  • Jantzen does not fill their capacitors with any dielectric fluid, which eliminates all risks of evaporation or leakage that can shorten longevity and quality of the capacitor.

Technical Data

  • Capacitor foil: Polypropylene foil metalized with Aluminum (Al)
  • Type: Non-polarized MKP (single foil lane)
  • Dielectric: Polypropylene film
  • Construction: Round tubular type axial leads
  • Winding: Bifilar extended metalized foil
  • Rated Voltage: 400 VDC / 250 VAC
  • Test Voltage: 150% rated voltage
  • Electrodes: Aluminum metallized vacuum deposited
  • Contacts: Non-inductive zinc thermally sprayed extended film
  • Coating: Blue plastic tape wrapped and sealed in black resin
  • Leads: Tin plated oxygen free copper
  • Capacitance Range: 400VDC from 1.0 μF to 100μF



  • Capacitance tolerance: ±5% (on nominal value)
  • Dielectric constant: Non-polar dielectric
  • Dissipation factor: Extremely low 4 / 6
  • Dielectric absorption factor: <0.5% @ 20℃
  • Dielectric thickness: PB=5µm
  • Equivalent series resistance: Extremely low
  • Self-inductance: < 15 nH
  • Insulation resistance: >100.000 MΩ @ 20℃
  • Temperature coefficient: -200℃ x 10-6/℃
  • Temperature Range: -55℃t o +85℃
  • Metal layer thickness: PB=0.3µm
  • Metal layer conductivity: PB =1.2 Ω/cm2

Product Details

BrandJantzen Audio
Model001-0416
Part Number027-264
UPC844632061738
Unit of MeasureEach
Weight0.04

Product Specifications

Capacitance1.8 uF
Tolerance5%
Voltage Rating400V
