Model: JZ2-678H

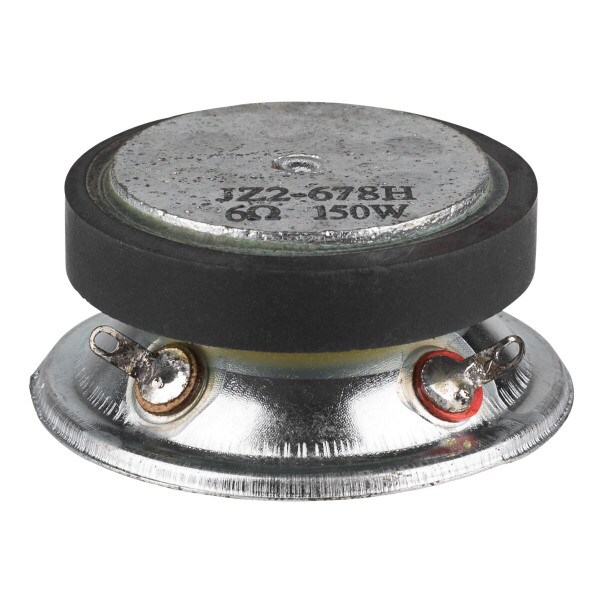

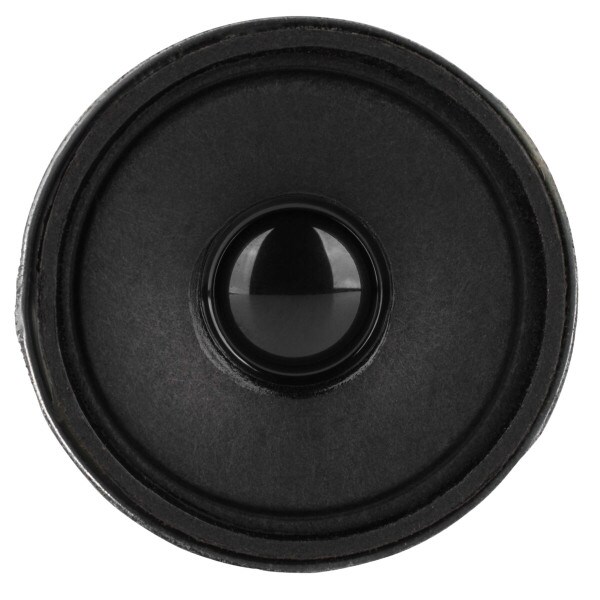

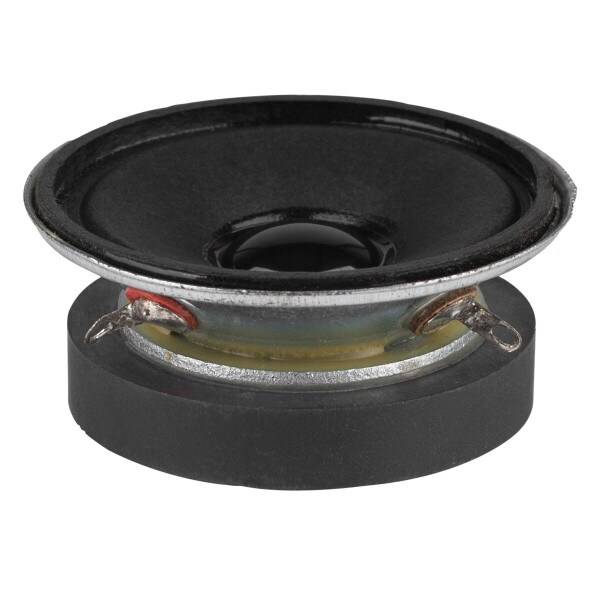

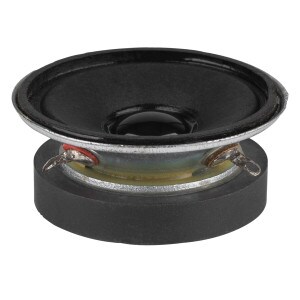

The JZ2-678H tweeter is a 2” paper cone tweeter that features a self-enclosed design. This driver would be ideal for models and situations for space and cabinet conditions would normally not be ideal for speakers.
Key Features
  • Sealed driver design allows the driver to be put into many installations where the cabinet design is a non-factor
  • Press fit design allows for a clean and simple installation
  • 6 Ohm impedance mates well to most small amplifiers
BUYOUT $1.51
Bulk Pricing
Quantity:Qty: 1-9 $1.51/ea
Quantity:Qty: 10-49 $1.33/ea
Quantity:Qty: 50+$1.20/ea
Ships next business day. Details

599In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

JZ2-678H 2" Paper Cone Pressfit Mount Tweeter 6 Ohms

The JZ2-678H is a 2” paper cone tweeter that features a press fit, sealed basket that allows this tweeter to be installed in many unconventional instances. This driver would fit the bill for many unique models and situations requiring limited space and inadequate cabinet conditions for conventional tweeters.

Product Details

BrandFactory Buyouts
ModelJZ2-678H
Part Number289-2358
UPC844632014796
Unit of MeasureEach
Weight0.2

Product Specifications

Cone / Dome Diameter2"
Cutout Diameter1.95
Tweeter TypePaper Cone
Power Handling (RMS)15 Watts
Impedance6Ω
Frequency Response3,500 to 20,000Hz

Thiele-Small Parameters

Resonant Frequency (Fs)1775Hz
DC Resistance (Re)5.204Ω
Voice Coil Inductance (Le)0.07638mH
Mechanical Q (Qms)1.804
Electromagnetic Q (Qes)8.722
Total Q (Qts)1.494

Mounting Information

Overall Outside Diameter2.055"
Depth0.89"
