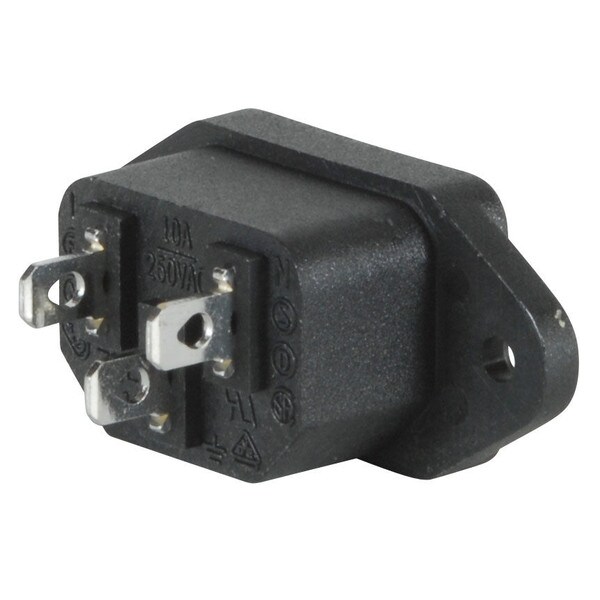

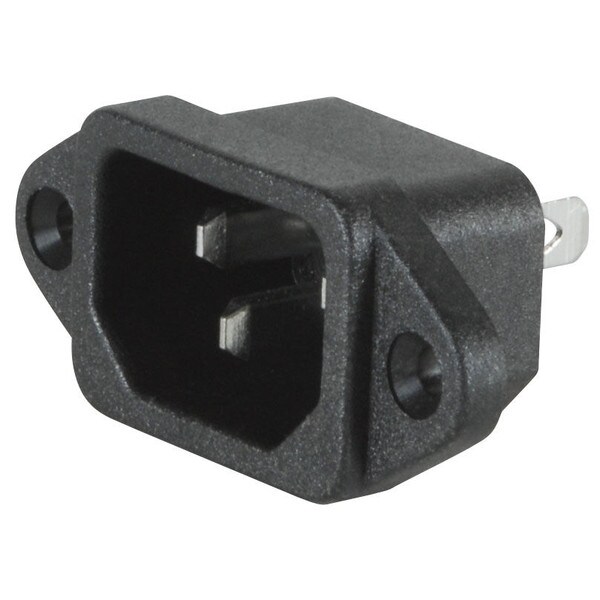

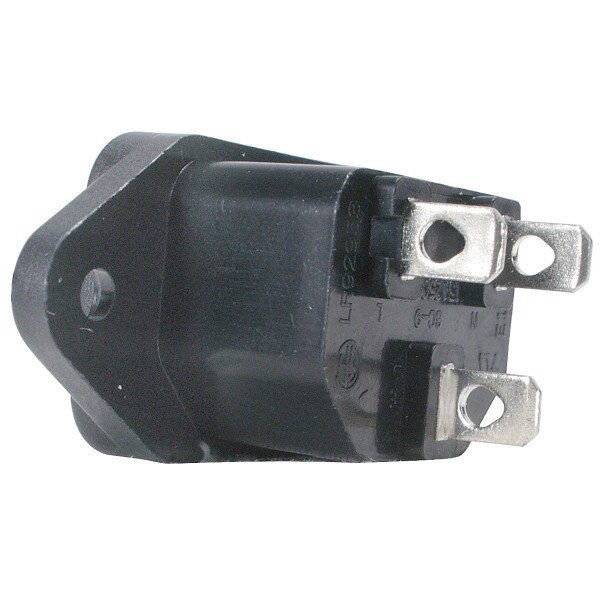

Parts Express IEC AC Power Jack Chassis Mount

Parts Express
Part #090-442

Parts Express IEC AC Power Jack Chassis Mount

Parts Express
Part #090-442
This IEC power jack is perfect for replacement, DIY projects or converting older equipment, so they can be used with IEC style power cords. It is constructed out of high temperature, impact resistant UL94V-0 plastic.
Your Price: $1.60
MSRP: $1.99
Save $0.39 (20%)
Bulk Pricing
Quantity:Qty: 1-9 $1.60/ea
Quantity:Qty: 10+$1.44/ea
Order in the next 3 hr 29 min to ship today. Details

692In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

Parts Express IEC AC Power Jack Chassis Mount

This IEC power jack is perfect for replacement, DIY projects or converting older equipment, so they can be used with IEC style power cords. It is constructed out of high temperature, impact resistant UL94V-0 plastic. The heavy gauge contacts are made of nickel plated brass and will accept solder or .187" quick disconnects. Contact rating: 10A, 250VAC. Overall dimensions: 2" x 7/8". Cut out dimensions: 1-1/16" x 3/4". Mounting depth with terminals 0.83" (21mm). UL and CSA listed.

Product Details

BrandParts Express
Part Number090-442
UPC844632005152
Unit of MeasureEach
Weight0.1

Product Specifications

ConfigurationIEC
Current Rating10A
Power Connector TypeChassis / Panel Mount
