The ICEpower 50ASX2SE combines a highly efficient resonant gearbox power supply with a 2 x 50W audiophile class D amplifier. This amp board is perfect for 2-way powered speakers or stereo hi-fi home theater applications.
Key Features
AC plug-to-speaker amplification audio solution offering flexible 2 x 50W output all-in-one mini PC board
Built-in circuits for shorts, over-current, and thermal protection
No noisy fan needed
High current output stages, designed to comfortably drive any speaker load from 2 ohms and up
Perfect size and wattage for active bookshelf, computer, or satellite home theater speakers
A power supply with selectable AC voltage for worldwide versatility

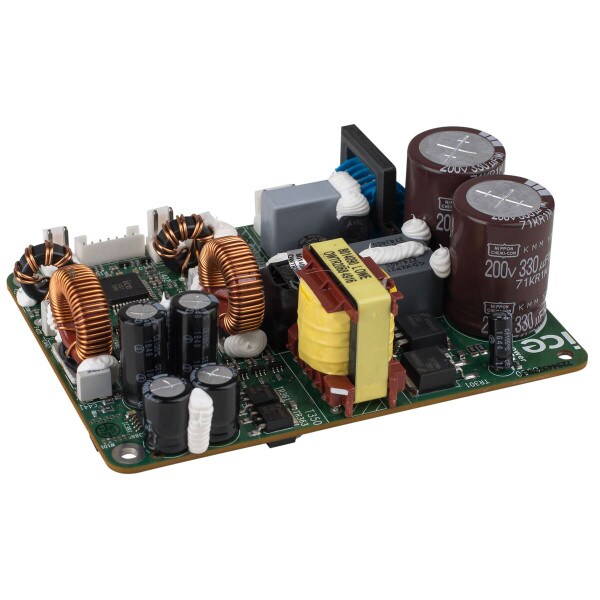

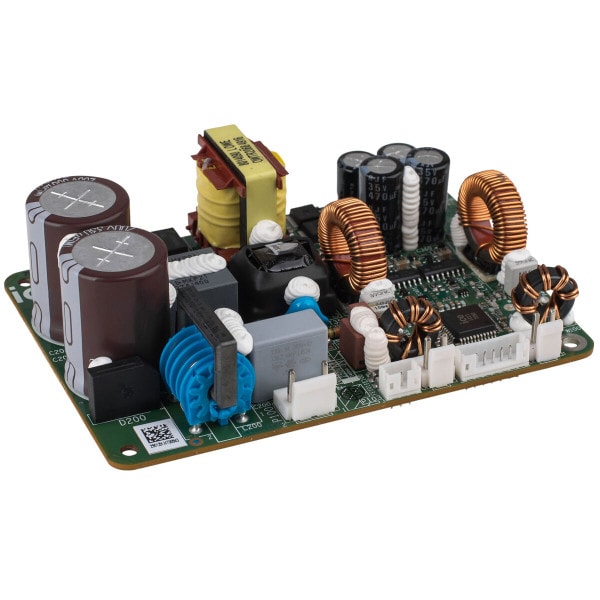

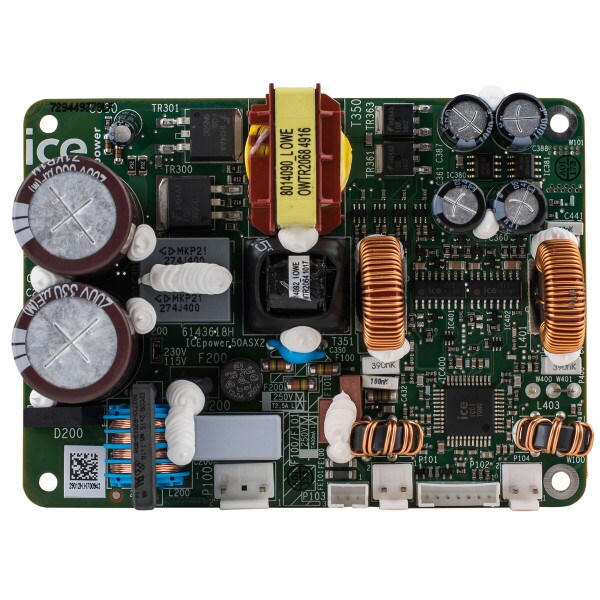

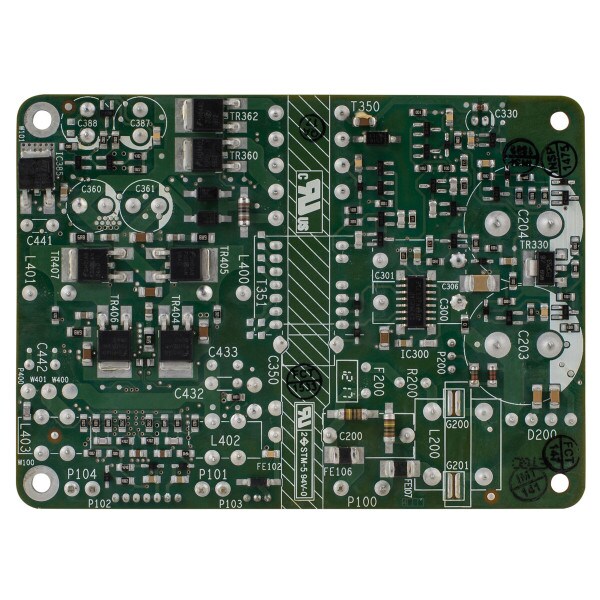

ICEpower 50ASX2SE Class D Audio Amplifier with Power Supply Module 2 x 50W

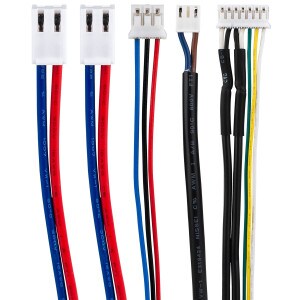

The 50ASX2SE sets a new industry benchmark in audio performance, efficiency, and power density, made possible by adapting the very latest ICEpower technological advances. Its mini size foot print, 2 x 50W, and fanless design creates limitless possibilities for small active 2-way, or 2-channel speaker creations that pack-a-punch. With the optional wiring harness bundle, sold separately, create a powered center channel, satellite speakers, or Bluetooth speaker by adding a Bluetooth receiver board (sold separately). The rugged construction keeps the music playing for years even when moving from place-to-place. There are endless possibilities using this compact, combination power supply 2 x 50W amp board for your next audio project.
ICEpower power supply amp boards are only available in the USA from Parts Express. Parts Express ships out each order the same day if placed before 4 pm EST M-F. This makes it easier than ever to acquire ICEpower amp modules for your projects, and continental USA DIYs and OEMs save money by eliminating international shipping cost.
Note: Make sure the jumper is set to 115V for use in the USA, or the correct setting for other countries. Line input channel is on the same side as the speaker output.
Specifications: • Power output: 2 x 45W RMS @ 4 ohms 1% THD+N, 20-20,000 Hz • Frequency response: 20-20,000 Hz • Dynamic range: 120 dBA • Total efficiency: 81% @ 170W 4 ohm • Unregulated auxiliary power supply: +/-25V @ 200 mA • Selectable input voltage: 115/230 VAC 50/60 Hz • Maximum output current limit: 20A • Dimensions: 4.34" W x 3.15" D x 1.32" H.
