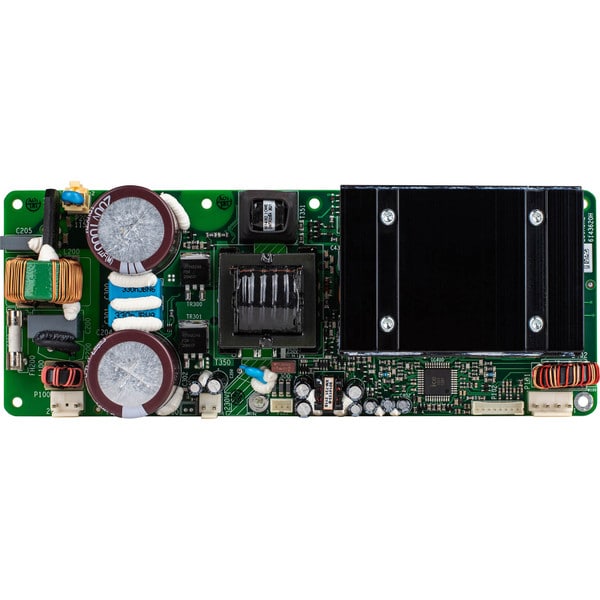

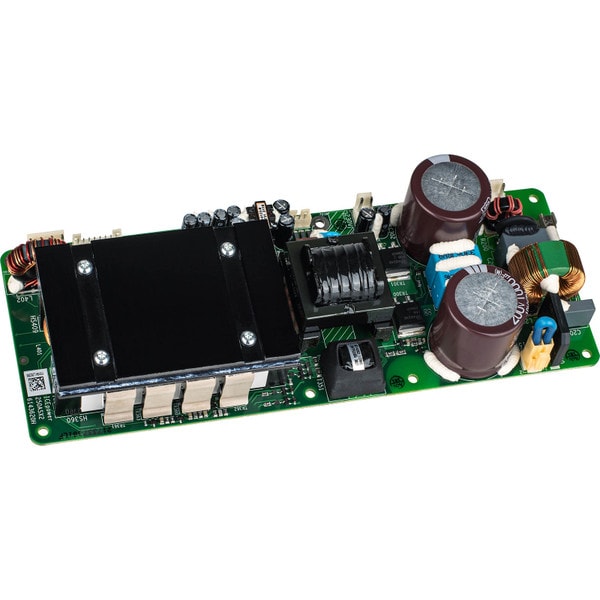

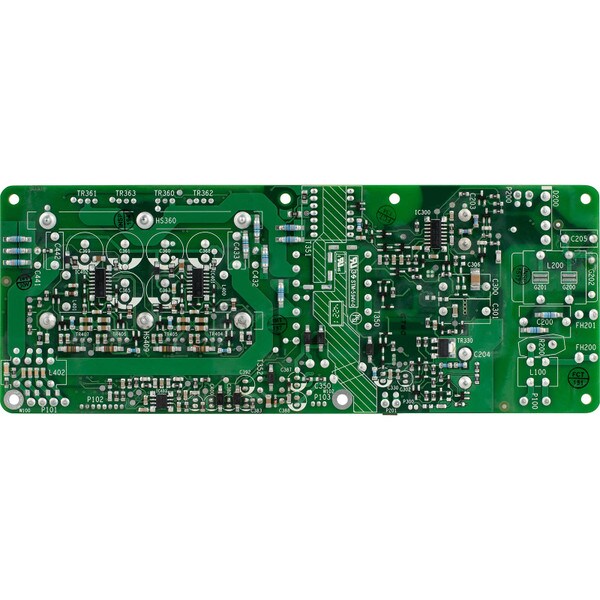

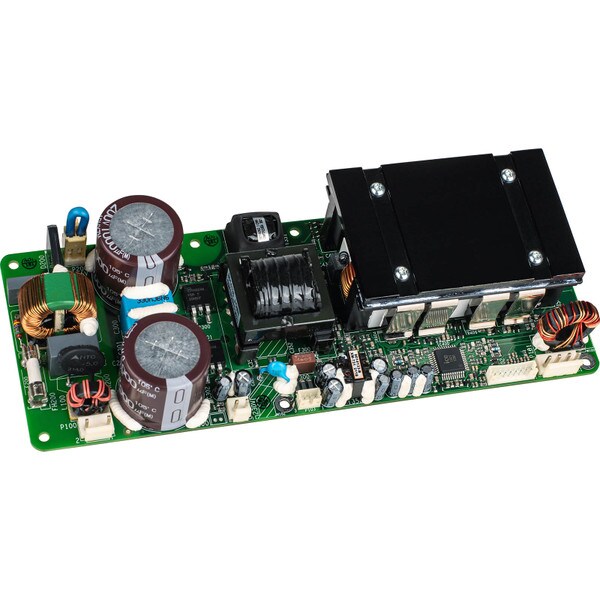

ICEpower 250ASX2 Class D Amplifier Module with Built-In Power Supply 2 x 250W

ICEpower
Part #326-270

ICEpower 250ASX2 Class D Amplifier Module with Built-In Power Supply 2 x 250W

ICEpower
Part #326-270
Model: 250ASX2

The ICEpower 250ASX2 amp board is a cutting-edge audio power conversion solution that brings a new level of performance and versatility to both consumer and professional audio products. With its fully integrated design and intelligent features, this power solution is specifically created to meet the needs of highly competitive audio applications.

Key Features
  • AC plug-to-speaker amplification audio solution offering flexible 2 x 250W output all-in-one mini-PC board
  • Built-in circuits for shorts, over-current, and thermal protection
  • No noisy fan needed
  • High current output stages, designed to comfortably drive any speaker combined load from 3 ohms and up
  • Perfect size and wattage for active bookshelf, computer, or satellite home theater speakers
  • A power supply with selectable AC voltage for worldwide versatility
Your Price: $334.98
+ FREE SHIPPING
Bulk Pricing
Ships next business day. Details

In Stock
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

ICEpower 250ASX2 Class D Amplifier Module with Built-In Power Supply 2 x 250W

All-In-One Fanless AMP & Power Supply Board

The 250ASX2 sets a new industry benchmark in audio performance, efficiency, and power density, made possible by adapting the very latest ICEpower technological advances. Its mini size foot print, 2 x 250W, and fanless design creates limitless possibilities for small active 2-way, or 2-channel speaker creations that pack-a-punch. With the optional wiring harness bundle, sold separately, create bass amplifiers, subwoofers, stereo home automation and hi-fi amplifiers as well as industrial applications. Add a Bluetooth receiver board (sold separately) for wireless audio projects. The rugged construction keeps the music playing for years even when moving from place-to-place. There are endless possibilities using this compact, combination power supply 2 x 250W amp board for your next audio project.

ICEpower power supply amp boards are only available in the USA from Parts Express. Parts Express ships out each order the same day if placed before 4 pm EST M-F. This makes it easier than ever to acquire ICEpower amp modules for your projects, and continental USA DIYs and OEMs save money by eliminating international shipping cost.

Note: Make sure the wire jumper is moved to 115 VAC for USA operation.

Note:Requires the 326-190 ICEpower Amplifier Module 250ASX2 Wiring Harness Kitfor full stand-alone functionality (sold separately).

Specifications: • Power output: 2 x 230W RMS @ 4 ohms 1% THD+N, 20-20,000 Hz • Frequency response: 20-20,000 Hz • Dynamic range: 112 dB • Total efficiency: 84.4% @ 500W, 8 ohm • Unregulated auxiliary power supply: +/-24V @ 200 mA • Selectable input voltage: 115/230 VAC 50/60 Hz • Maximum output current limit: 30A • Dimensions: 8.27" W x 3.16" D x 1.38" H (210 x 80 x 35 mm).

Product Details

BrandICEpower
Model250ASX2
Part Number326-270
UPC848864074412
Unit of MeasureEach
Weight2.15

Product Specifications

Board Type2 Channel Stereo Amp
Power (RMS/Channel 8 ohms)101 - 250 Watts
