IEC AC Power Jack Chassis Mount with Switch and Fuse Holder

Parts Express
Part #090-978

IEC AC Power Jack Chassis Mount with Switch and Fuse Holder

Parts Express
Part #090-978

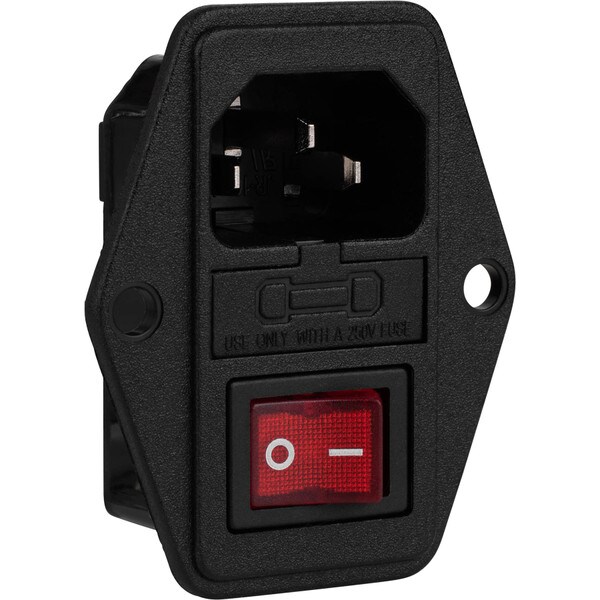

Use this IEC AC illuminated switched power jack in your next DIY amplifier or powered speaker project. Built-in fuse holder protects the amp and is easy to change versus internal fuses.
Key Features
  • Fuse holder accepts up to 6.3A @ 250V, 5 x 20 mm fuse and has a convenient space for a spare one
  • Lighted switch for easy on/off identification
  • UL recognized for safety
  • Eliminates an extra hole for a switch
  • Fuse sold separately
Your Price: $2.98
Bulk Pricing
Quantity:Qty: 1-9 $2.98/ea
Quantity:Qty: 10+$2.68/ea

Back-Ordered

Estimated back in stock 1/17/2025
Alert Me When Available
Free Shipping available on orders over $99.00 in the US. Details
60 Day No Hassle Return Policy

Overview

IEC AC Power Jack Chassis Mount with Switch and Fuse Holder

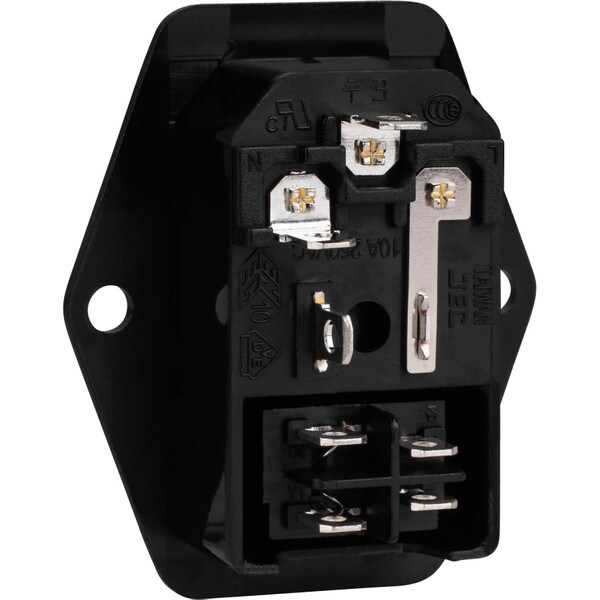

Cut a 48 x 28.5 mm hole and make two jumpers and this IEC illuminated switched AC socket is ready to power your next 120 VAC DIY project. Solder or use 0.187" (3/16") crimp connectors to hook up to each terminal for lighted switched power. Add up to a 6.3A 250V, 5 x 20 mm fuse to the IEC socket's fuse holder to protect your project. There's a space in the fuse holder for a spare fuse for a quick fix if needed. The correct fuse current is critical so a fuse is sold separately.

Specifications: • IEC socket power rating: 10A @ 250 VAC • Max fuse holder rating: 6.3A @ 250VAC • Terminals: 0.186" (4.74 mm) • Mounting hole: 1.89" x 1.12" (48 x 28.5 mm) • Screw holes: 0.173" (4.4 mm) spaced 1.575" (40 mm) apart to center • Total dimensions: 1.92" W x 2.29" H x 1.18" D (49 x 58 x 29.5 mm) including terminals without switch • Outer mounting plate thickness: 0.9" (2.3 mm) • Switch: Rocker DPST 10A at 125 VAC red lens with white light.

Product Details

BrandParts Express
Part Number090-978
UPC848864056920
Unit of MeasureEach
Weight0.05

Product Specifications

ConfigurationIEC
Current Rating10A
Power Connector TypeChassis / Panel Mount
